Program Test
7. Program Test
This mode provides List Sequence Test and Step Sequence Test to replace the manual step
test. The test program can be defined in advance so that the software can control the
hardware for execution following the set timing. First the Output Name will prompt to show
the channel that will be mapped when setting Mode and Loading. The functions of this
window are explained below.

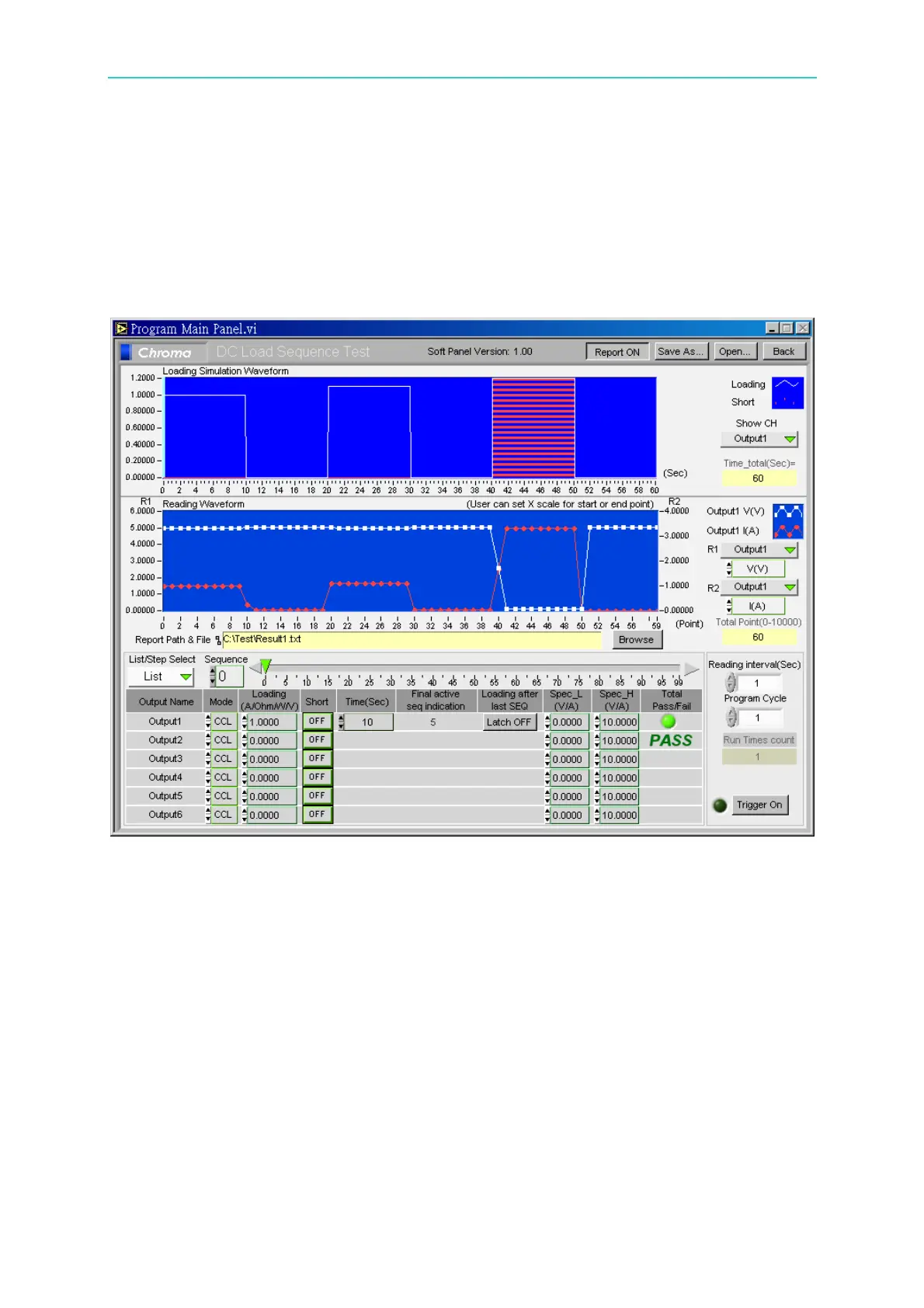

Figure 7-1 Program Test Window
7.1 Loading Simulation Waveform
This is a display area that draws the changes of loading to include Loading value (Y axis),
execution time ratio (X-axis) and if using Short (List Mode). The red line area represents
short. Show Channel indicates which channel settings are used to do the simulation.
Users can choose only one channel at a time. Time_total indicates the time required for
execution under the present settings. In the mean time the Waveform Chart has a scanning
line running to inform users the number of sequence is in execution, the loading value and
completion percentage.
