Program Test
7.2.3 Displaying Output Name
The names of Output Channel display are defined by the configuration in Hardware window.
Users can refer to the chapter Setting Hardware for the settings.

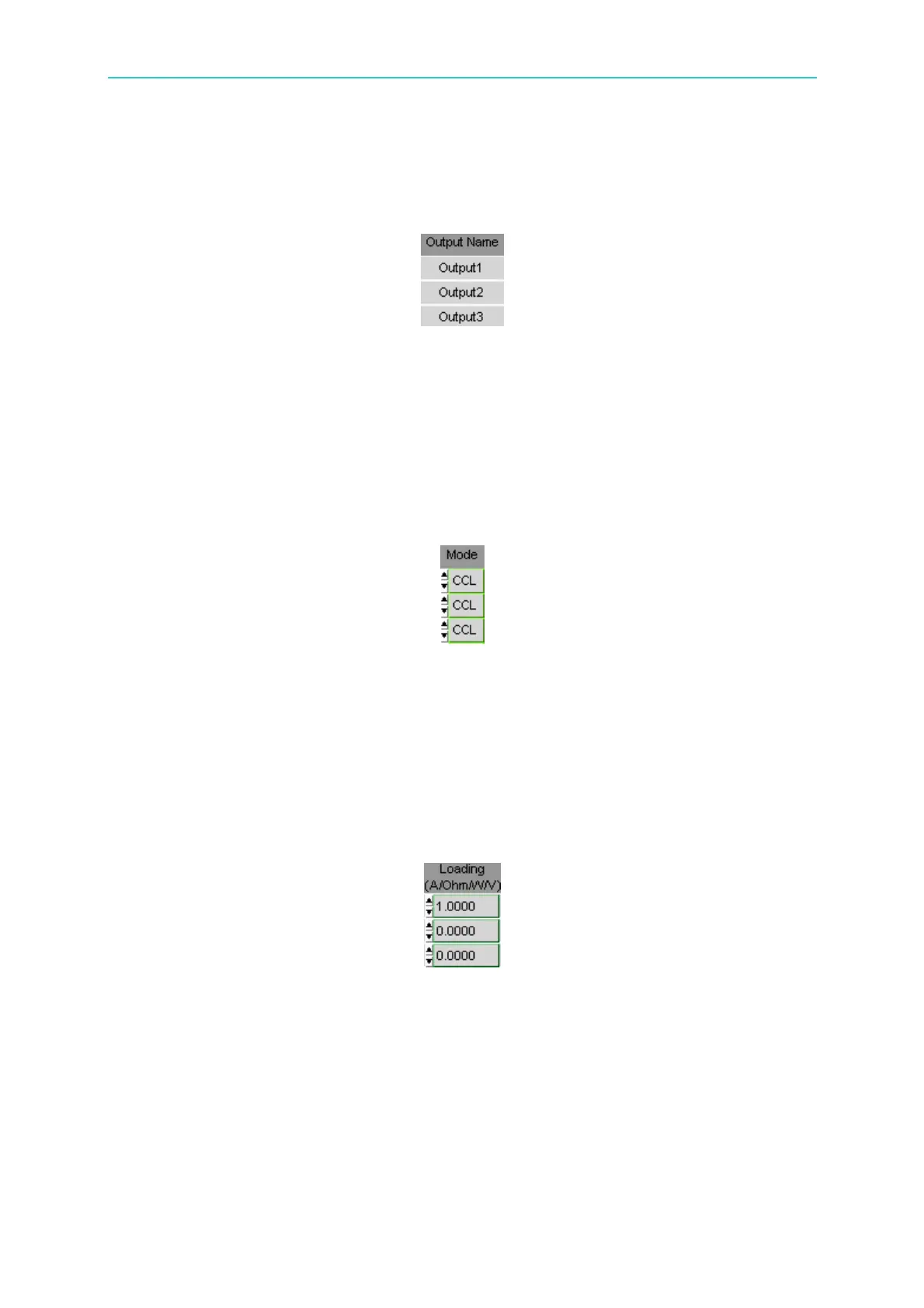

Figure 7-6 Displaying Output Name
7.2.4 Setting Mode
There are CCL, CCH, CRL, CRH, CPL, CPH, CVL and CVH loading modes in Program Test.
Each channel has these 8 options. When different mode is selected, the Loading range will
be changed too. Click the channel will prompt a menu of modes for selection or use the
up/down arrow to select it. Only one mode can be applied for the 100 sequences and no
switch is allow during the process. The setting will not change in List Mode or Step Mode.
Figure 7-7 Setting Mode
7.2.5 Setting Loading
There are 100 sets of “Loading” available for setting in List Mode. When users change the
sequence, the Index will modify the “Loading” as well for mapping. The Loading range
varies with Mode and Model. Moreover, it changes according to parallel use which should
be kept in mind. When the input value exceeds the maximum range, it will stay at the
maximum and same for the minimum.
Figure 7-8 Setting Loading
7.2.6 Setting Time
There are 100 sets of “Time” available for setting in List Mode. The unit is second. When
users change the sequence, the Index will modify the “Time” as well for mapping. However,
the channels in a sequence will be executing for the same time period. In addition, if the
time sets to 0 it indicates the subsequent time settings for sequence are all invalid. It also
means the program doesn’t have to be ended when 100 sequences are done. Set a certain
sequence to 0, the program will stop running at one sequence prior. The mapping setting is
Final Active Seq.
7-3
