5. Use I RANGE key to select an appropriate current range for each channel to conduct
testing.

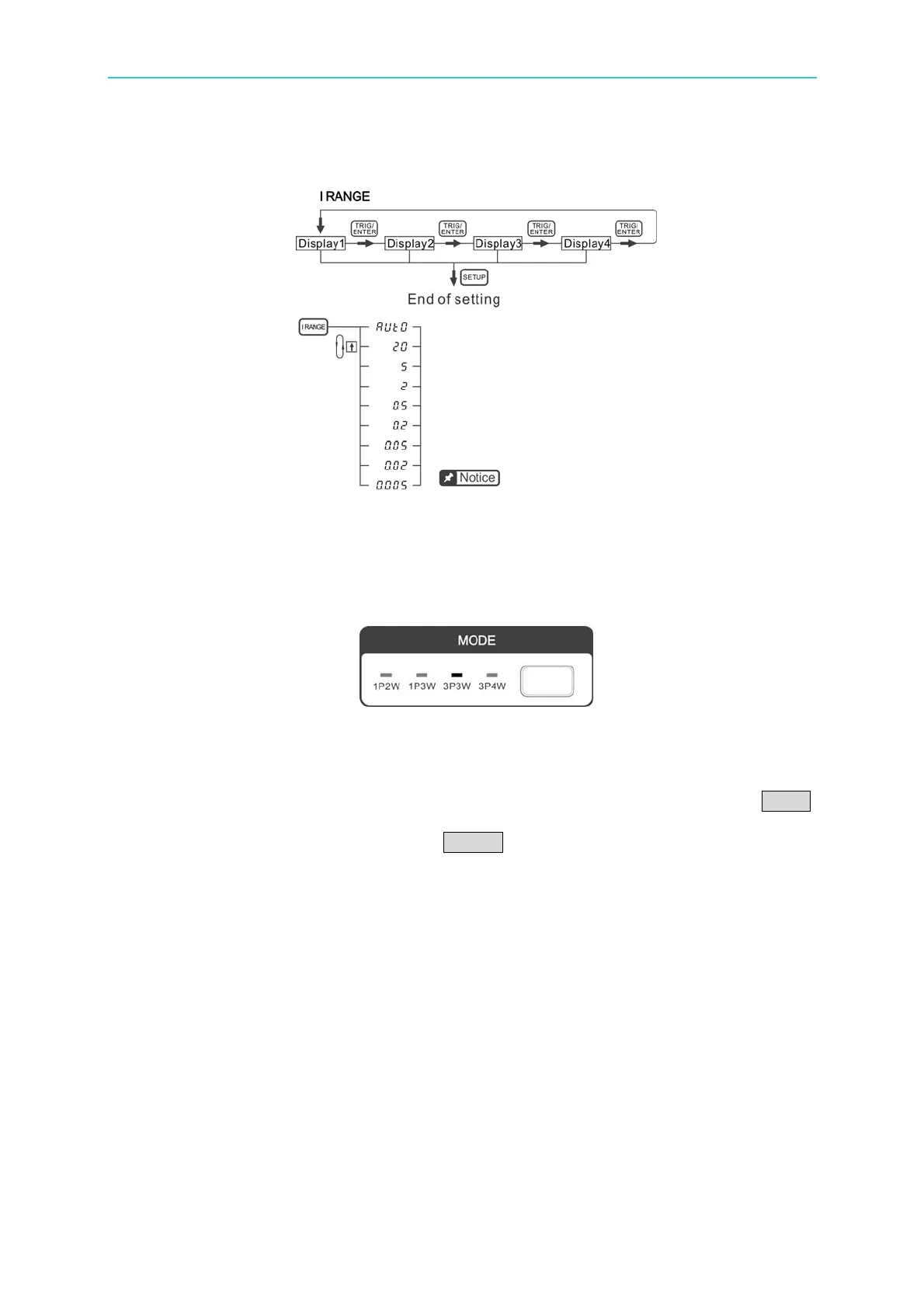

Figure 4-13 Process for Setting Current Range
6. After confirmed all wirings are correct, secured and safe, turn on the motor driver and
start the driver to control the motor.
7. Set the wiring mode of the 66204 to 3P3W.
Figure 4-14 Wiring Mode Selection
Measurement Display
1. To display the measurement of motor driver primary side (input side): Press the FUNC
key of display 1~display 4 to set the indicator of basic measurement parameter to V, A,
W, PF respectively, and then press the CHSEL of display 1~display 4 to set all channels
to 4.
