Digital Power Meter 66203/66204 User’s Manual
4-20

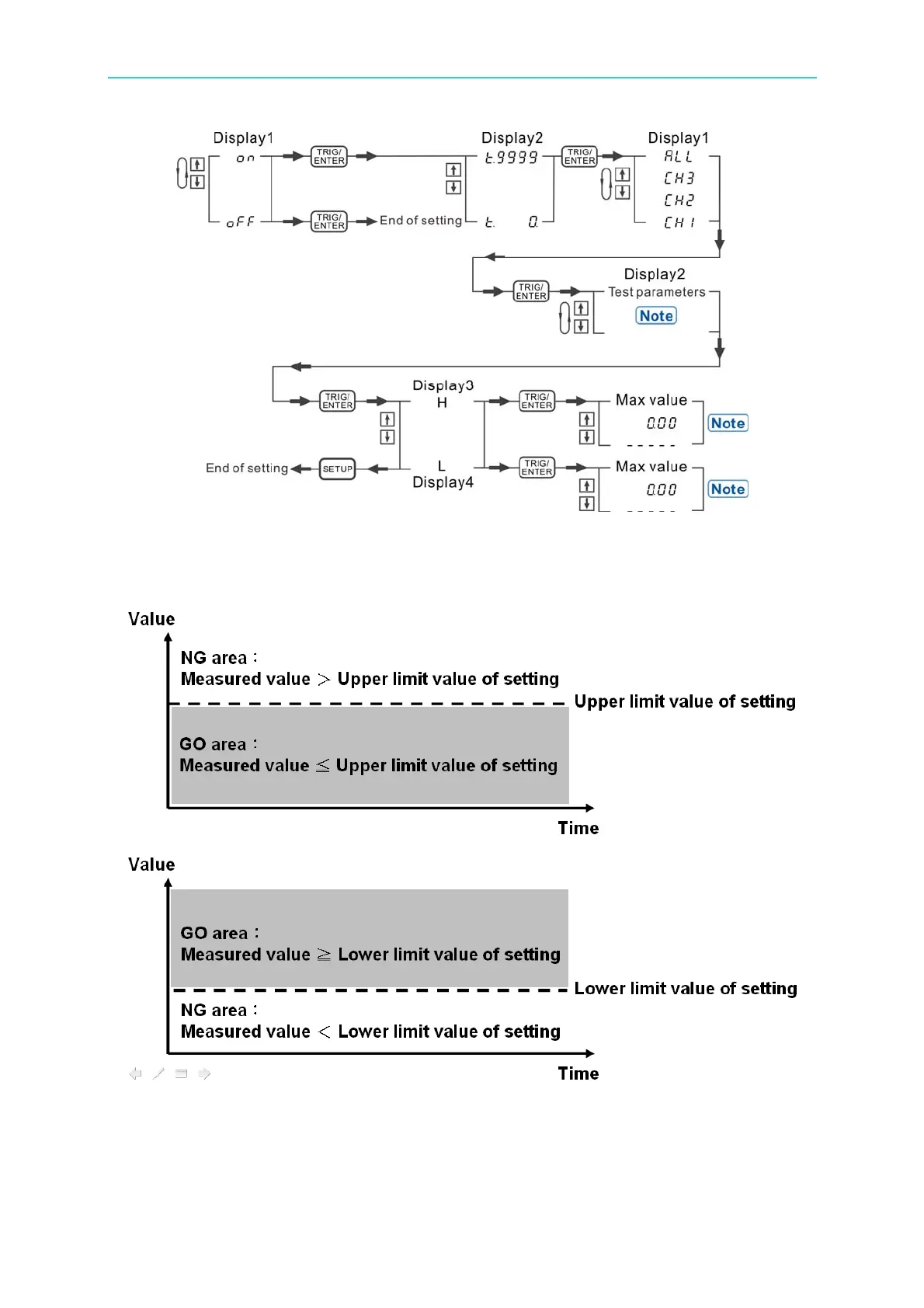

Figure 4-29 Procedure for Setting Limit Function
The figure below shows the rule for judging the measured value comparing to the
upper/lower.
Figure 4-30 GO/NG Upper Limit Comparison Rule
Figure 4-31 GO/NG Lower Limit Comparison Rule
