Chapter 3
Setting up a WPAN Connection
Note:
When Bluetooth security is enabled wi
thout providing a pre-set PIN
code, dynamic
input of PIN code is supported.

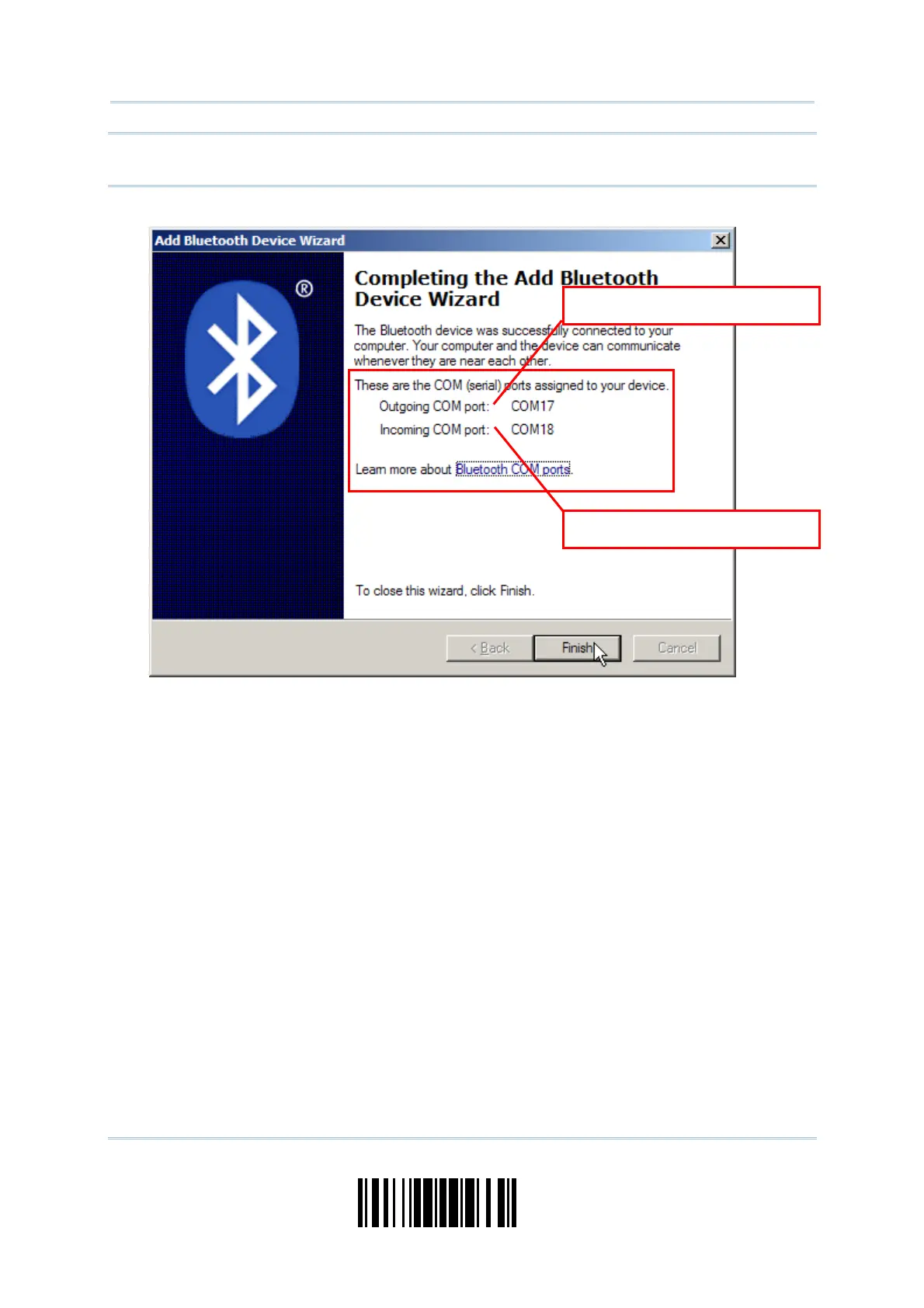

10. Click
[Finis
h].
1
560 as BT SPP Slave
1
5
60 as BT SPP Master
124
126
