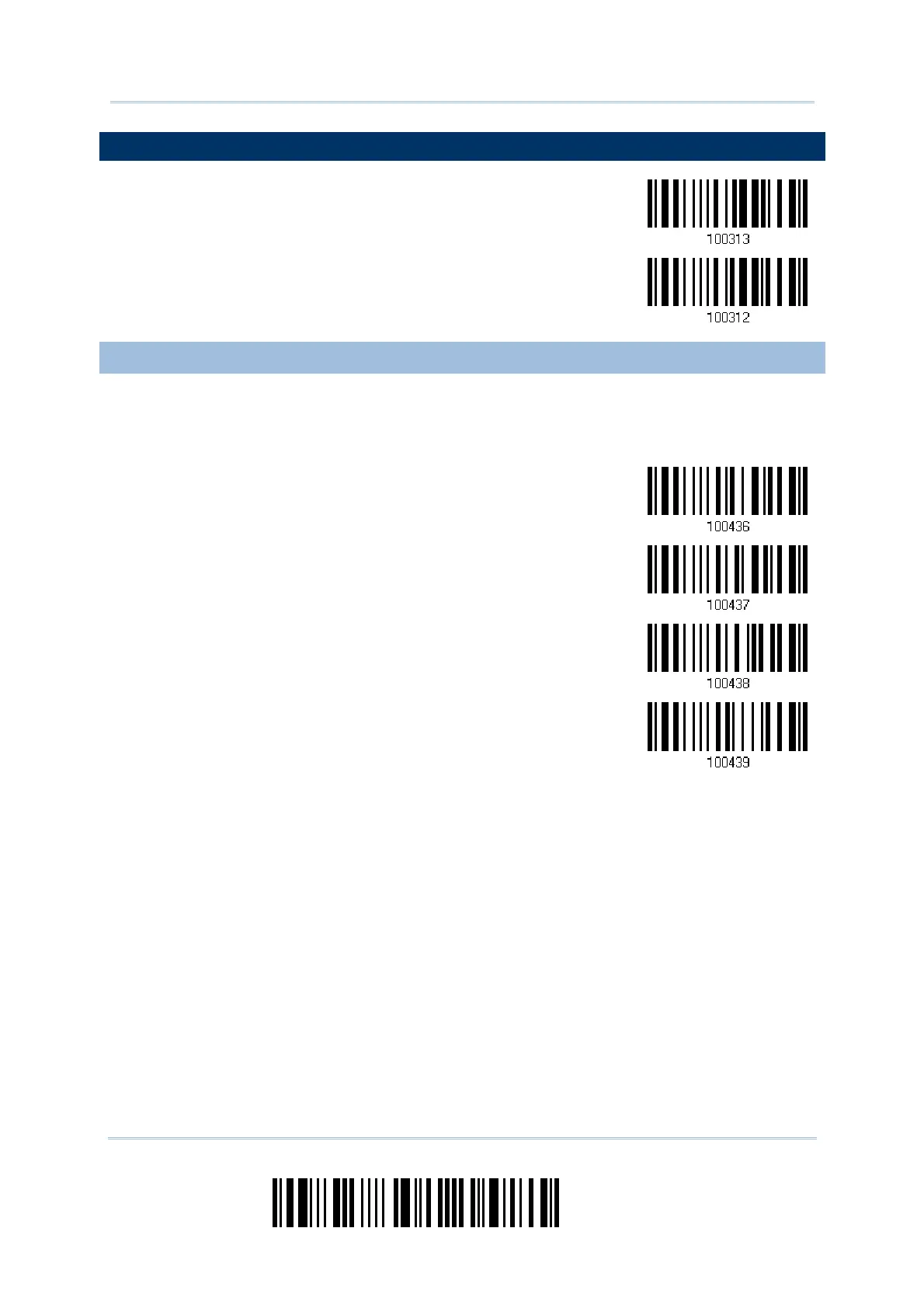

Enter Setup
1560 Series Barcode Sca
nner
User Guide
4.1 CODABAR
*Enable
Disable
4.1.1 START/STOP CH
ARACTERS SELECTION
Select one of the four di
fferent
start/stop character pairs –
* abcd/abcd
abcd/tn*e
ABCD/ABCD
ABCD/TN*E
129
131
Table of Contents
Default Chapter
3
For Canada
3
Important Notices
3
Care & Maintenance
4
For Hand-Held Product with RF Functions
4
For Product with Laser
4
Safety Precautions
4
Release Notes
5
Table of Contents
7
Introduction
13
Getting Familiarized with 1560/1562 and 3656
14
Installing the Battery to 1560/1562
14
Setting up 3656
15
Charging the Battery Via 3656
17
Charging the Battery Via Charger
18
Inside the Package
19
Product Highlights
19
Symbologies Supported
20
Quick Start
23
Enter Configuration Mode
25
Exit Configuration Mode
25
Default Settings
26
Save User Settings as Defaults
26
Restore User Defaults
26
Restore System Defaults
26
Read a Setup Barcode
27
Configure Parameters
27
List the Current Settings
31
Create One-Scan Setup Barcodes
33
Chapter 1
35
Battery
35
Turn On/Off the Scanner
35
Power Economy
36
Power Economy Vs. WPAN Connection
39
Understanding the Barcode Scanner
35
Memory
41
Transmit Buffer
41
Memory Mode
42
LED Indicator
44
Good Read LED
45
Good Read LED Duration
45
Beeper
46
Beeper Volume
47
Good Read Beep
48
Low Battery Alarm
49
Send "NR" to Host
50
Scan Modes
51
Continuous Mode
52
Test Mode
52
Laser Mode
53
Auto off Mode
53
Auto Power off Mode
53
Alternate Mode
54
Aiming Mode
54
Multi-Barcode Mode
55
Scanning Timeout
56
Delay between Re-Read
57
Read Redundancy for All Symblogies
58
Addon Security for UPC/EAN Barcodes
59
Auto-Sense Mode (1560 Only)
60
CCD Sensor Always Active (1560 Only)
62
Negative Barcodes
62
Effective Decoding Area
63
Positioning Window
63
Adjusting Window
64
Selecting Output Interface
65
Chapter 2
66
Bt Hid
66
Activate BT HID & Select Keyboard Type
67
Reset Connection
68
Keyboard Settings
69
Inter-Character Delay
76
Inter-Function Delay
76
HID Character Transmit Mode
77
Keypad Support for Iphone/Ipad
77
BT SPP Slave
78
Activate BT SPP Slave Mode
78
Inter-Function Delay
78
ACK/NAK Timeout
79
BT SPP Master
80
Activate BT SPP Master Mode
80
Inter-Function Delay
82
ACK/NAK Timeout
83
Switch between Master/Slave Mode
83
Keyboard Wedge Via 3656
84
Activate Keyboard Wedge & Select Keyboard Type
85
Keyboard Settings
86
Inter-Character Delay
94
Inter-Function Delay
94
Via 3656
95
Activate RS-232 Interface
95
Baud Rate
95
RS-232 Via 3656
95
Data Bits
96
Parity
96
Stop Bit
97
Flow Control
97
Inter-Character Delay
98
Inter-Function Delay
98
ACK/NAK Timeout
99
USB HID Via 3656
100
Activate USB HID & Select Keyboard Type
101
Keyboard Settings
102
Inter-Character Delay
109
Inter-Function Delay
109
HID Character Transmit Mode
110
USB Virtual COM Via 3656
111
Activate USB Virtual COM
111
Inter-Function Delay
111
ACK/NAK Timeout
112
Setting up a Wpan Connection
113
Connecting Via 3656
114
Connect to 3656
114
Change Interface
115
Configure Related Settings
116
Connecting Via Bluetooth ® Dongle
117
Change Interface
117
Configure Related Settings
118
Connect to Dongle
121
Changing Symbology Settings
129
Chapter 4
130
Codabar
130
Start/Stop Characters Selection
130
Start/Stop Transmission
131
CLSI Conversion
131
Code 25 - Industrial 25
132
Start/Stop Pattern Selection
132
Verify Check Digit
133
Transmit Check Digit
133
Code Length Qualification
134
Code 25 - Interleaved 25
135
Start/Stop Pattern Selection
135
Verify Check Digit
136
Transmit Check Digit
136
Code Length Qualification
137
Code 25 - Matrix 25
138
Start/Stop Pattern Selection
138
Verify Check Digit
139
Transmit Check Digit
139
Code Length Qualification
140
Code 39
141
Start/Stop Transmission
141
Verify Check Digit
141
Transmit Check Digit
142
Standard/Full ASCII Code 39
142
Code 39
142
Code 93
143
Code 128
143
Ean-8
144
132
144
Convert to EAN-13
145
Transmit Check Digit
145
134
146
Ean-13
146
ISBN Conversion
147
ISSN Conversion
147
Transmit Check Digit
147
Security Level
148
Gs1-128 (Ean-128)
149
Code ID Transmission
149
Field Separator (GS Character)
149
Isbt 128
150
Msi
151
Verify Check Digit
151
Transmit Check Digit
151
Code Length Qualification
152
French Pharmacode
153
Transmit Check Digit
153
Italian Pharmacode
154
Transmit Check Digit
154
Plessey
155
Convert to UK Plessey
155
Transmit Check Digit
155
GS1 Databar (RSS Family)
156
Code ID Selection
156
GS1 Databar Omnidirectional (RSS-14)
157
GS1 Databar Expanded (RSS Expanded)
159
GS1 Databar Limited (RSS Limited)
160
Telepen
161
Telepen Output - Full Ascii/Numeric
161
Upc-A
162
Convert to EAN-13
163
System Number Transmission
163
Transmit Check Digit
163
Upc-E
164
System Number Selection
165
Convert to UPC-A
165
System Number Transmission
166
Transmit Check Digit
166
Chapter 5
167
Letter Case
167
Character Substitution
168
Select a Set for Character Substitution
169
Symbologies for Character Substitution (All 3 Sets)
170
Prefix/Suffix Code
176
Code ID
177
Select Pre-Defined Code ID
177
Change Code ID
179
Clear Code ID Settings
180
Length Code
181
Multi-Barcode Editor
185
Edit a Concatenation of Barcodes
186
Activate the Concatenation of Barcodes
187
Removal of Special Character
188
Defining Output Format
167
Applying Formats for Data Editing
189
Chapter 6
190
Activating Editing Formats
190
Activate Editing Formats
190
Exclusive Data Editing
191
How to Configure Editing Formats
192
Select Format to Configure
193
Restore Default Format
194
Configuring Format - Define Data Criteria
195
Applicable Code Type
195
Data Length
202
Matching String & Location
203
Configuring Format - Define Data Field
204
Start Position
204
Field Adjustment
204
Total Number of Fields
205
Field Settings
206
Pause Field Setting
212
Configuring Format - Define Transmission Sequence
213
Programming Examples
215
Example I
215
Example II
216
Specifications
217
Firmware Upgrade
219
How to Upgrade 1560/1562 Firmware
219
Using 3656
219
Using Bluetooth ® Dongle
222
How to Upgrade 3656 Firmware
224
Upgrading 3656 CPU Firmware
224
Upgrading 3656 USB Bridge Firmware
226
Host Serial Commands
229
1560/1562 Serial Commands
229
Example
230
3656 Setup Barcodes & Serial Commands
231
3656 Serial Command Table
232
Example
234
Keyboard Wedge Table
235
Key Type & Status
236
Key Type
236
Key Status
236
Example
237
Numeral Systems
239
Decimal System
239
Hexadecimal System
240
ASCII Table
241
Entering PIN Code for Authentication
242
Use Preset PIN
242
Disable Authentication or Use Random PIN
243
