CHAPTER
5-1
Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
5
Installing and Removing a Shared Port Adapter
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
This chapter describes how to install or remove SPAs on the Cisco 12000 series router. This chapter
contains the following sections:
• Handling SPAs, page 5-1
• SPA Installation and Removal, page 5-2
• SPA Installation and Removal, page 5-2
• Optical Device Installation and Removal, page 5-3
• Checking the Installation, page 5-4
Handling SPAs
Each SPA circuit board is mounted to a metal carrier and is sensitive to electrostatic discharge (ESD)
damage. Before you begin installation, read “Preparing to Install a SPA Interface Processor or a Shared
Port Adapter” for a list of parts and tools required for installation.
Caution Always handle the SPA by the carrier edges and handle; never touch the SPA components or connector
pins. (See Figure 5-1.)
When a slot is not in use, a SPA blank filler plate must fill the empty slot to allow the router or switch
to conform to electromagnetic interference (EMI) emissions requirements and to allow proper airflow
across the installed modules. If you plan to install a SPA in a slot that is not in use, you must first remove
the SPA blank filler plate.

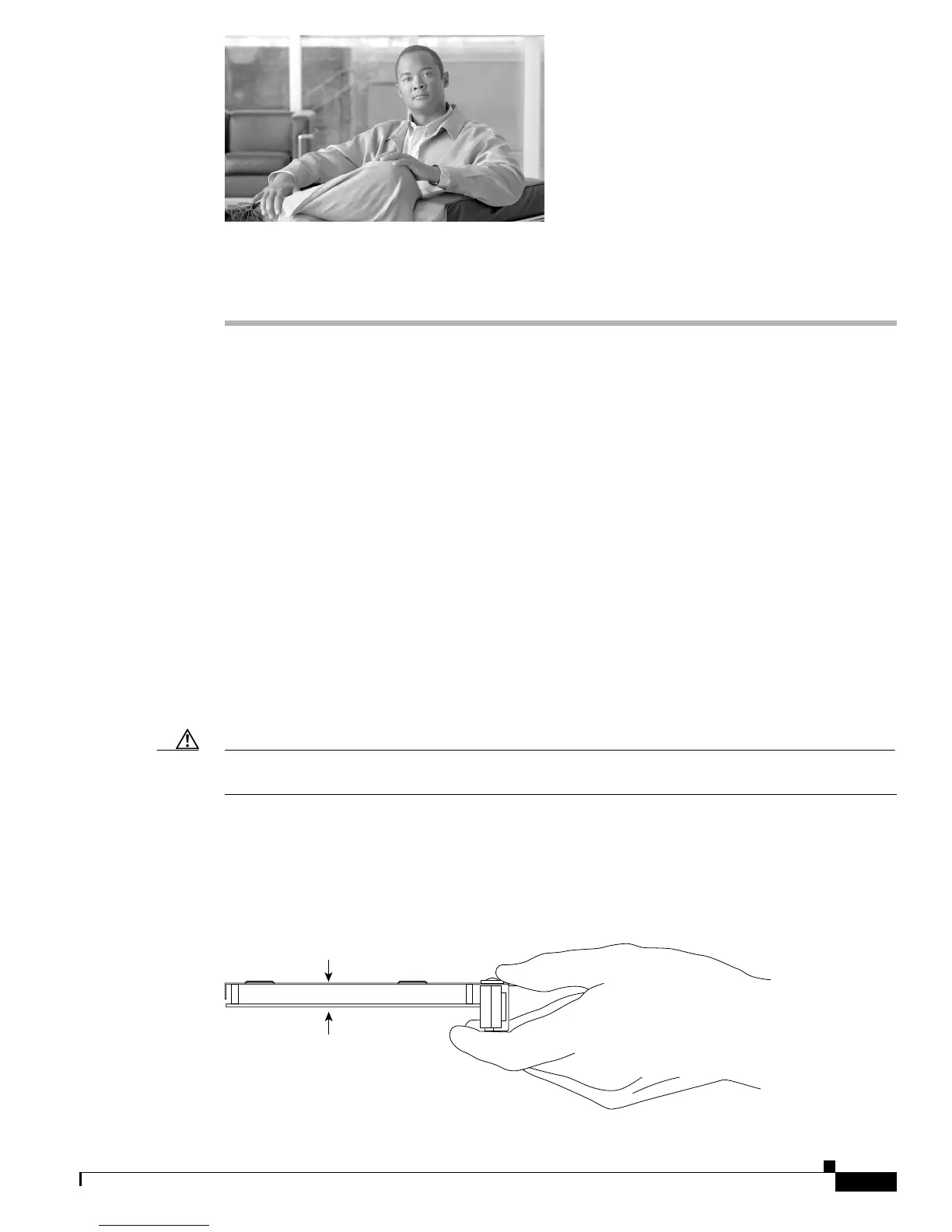

Figure 5-1 Handling a SPA
H6420
Metal carrier
Printed circuit board
