1-20
Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 1 Overview: Cisco 12000 Series Router SPA Interface Processors
Cisco 12000 SIP-601 Overview
SPA Subslot Numbering on the Cisco 12000 SIP-601
The Cisco 12000 SIP-601 accepts 4 single-height SPAs (the aggregate throughput should not exceed 2
full-rate SPAs); 2 double-height SPAs; 1 dual-width, double-height SPA, or a combination of
single-height and double-height SPAs.

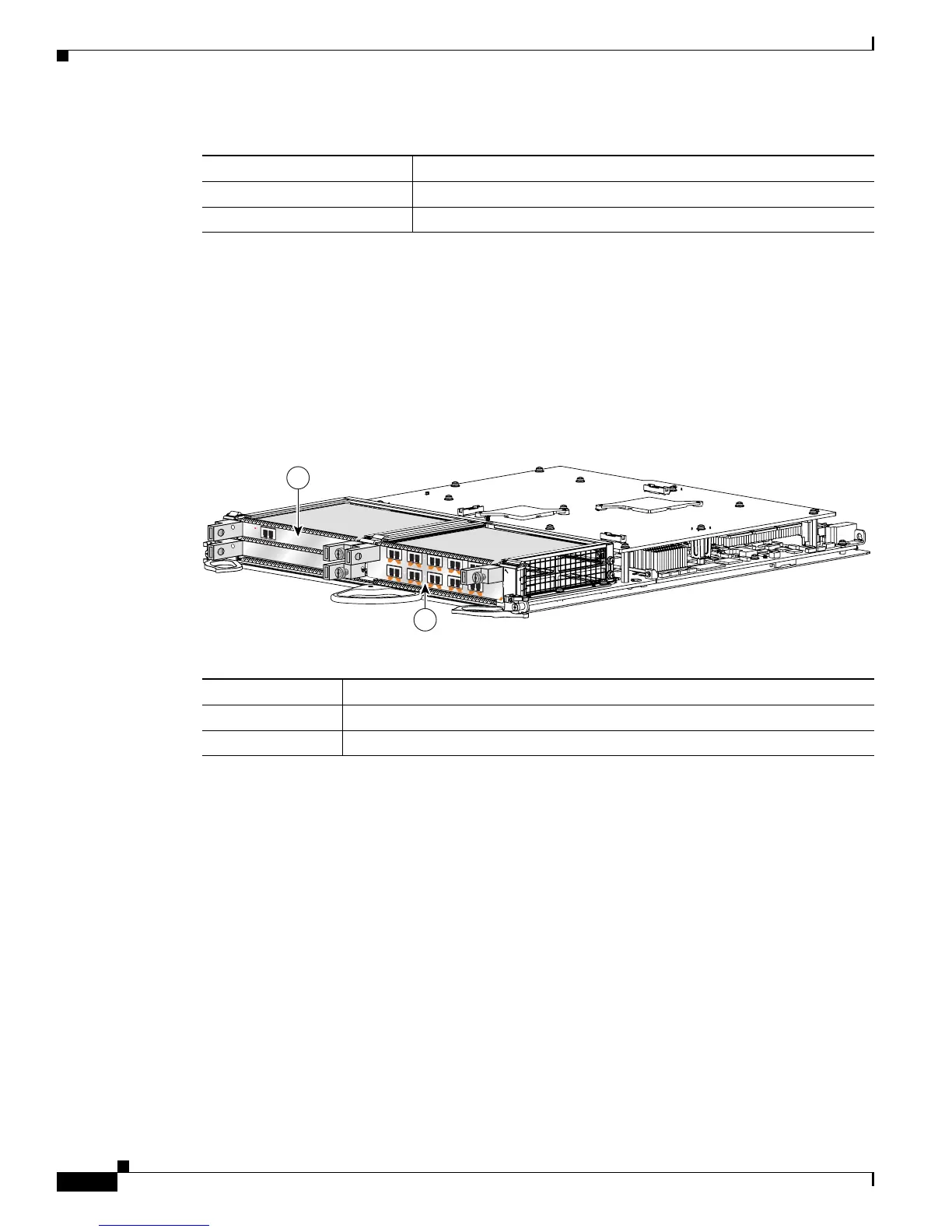

Figure 1-19 shows a Cisco 12000 SIP-601 with 2 SPAs installed. The left SPA slot is subslot 0 and the
right SPA slot is subslot 1. If one dual-width SPA is installed, it is recognized as being in subslot 0.
Figure 1-19 Subslot Locations for the 1-Port 10-Gigabit Ethernet SPA
SPA Interface Addresses on the Cisco 12000 SIP-601
A Cisco 12000 Series Router identifies a SPA interface address by its SIP slot number, SPA subslot, and
port number on the SPA, in the format slot/subslot/port. Subslots and ports are numbered starting from
0, so each Cisco 12000 SIP-601 has two subslots 0 (left) and 1 (right). For example, the interface address
of a 1-port SPA located in the second SIP subslot, where the SIP is inserted into router line card slot 3
is 3/1/0. Figure 1-20 shows the slot, subslot, and port locations for the 1-Port 10-Gigabit Ethernet SPA
and the 10-Port Gigabit Ethernet SPA.
Relative humidity 10 to 90 percent, noncondensing
Storage temperature –4 to 149°F (–20 to 65°C)
Table 1-17 Cisco 12000 SIP-601 Physical Specifications
Description Specifications
Table 1-18 Subslot Locations for the 1-Port 10-Gigabit Ethernet SPA
Call Out Number Description
1Subslot 0
2Subslot 1
12000-SIP-600
0
116872
STATUS
SPA-1XTENGE-XFP-A
ACTIVE/LINK
SPA10X1GE-A
STATUS
4
9
3
8
2
7
1
6
0
5
A/L
A/L
A/L
A/L
A/L
A/L
A/L
A/L
A/L
A/L
1
2
