Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 2 Overview: Cisco 12000 Series Router Shared Port Adapters
2-Port, 4-Port, and 8-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA, 4-Port OC-3c/STM-1 POS SPA, and 8-Port
Note Three different faceplates exist for either the 2-Port, 4-Port, and 8-Port OC-3c/STM-1 and
OC-12c/STM-4 POS SPAs. They each contain the same LEDs and the number of ports are 2, 4 and 8
respectively.

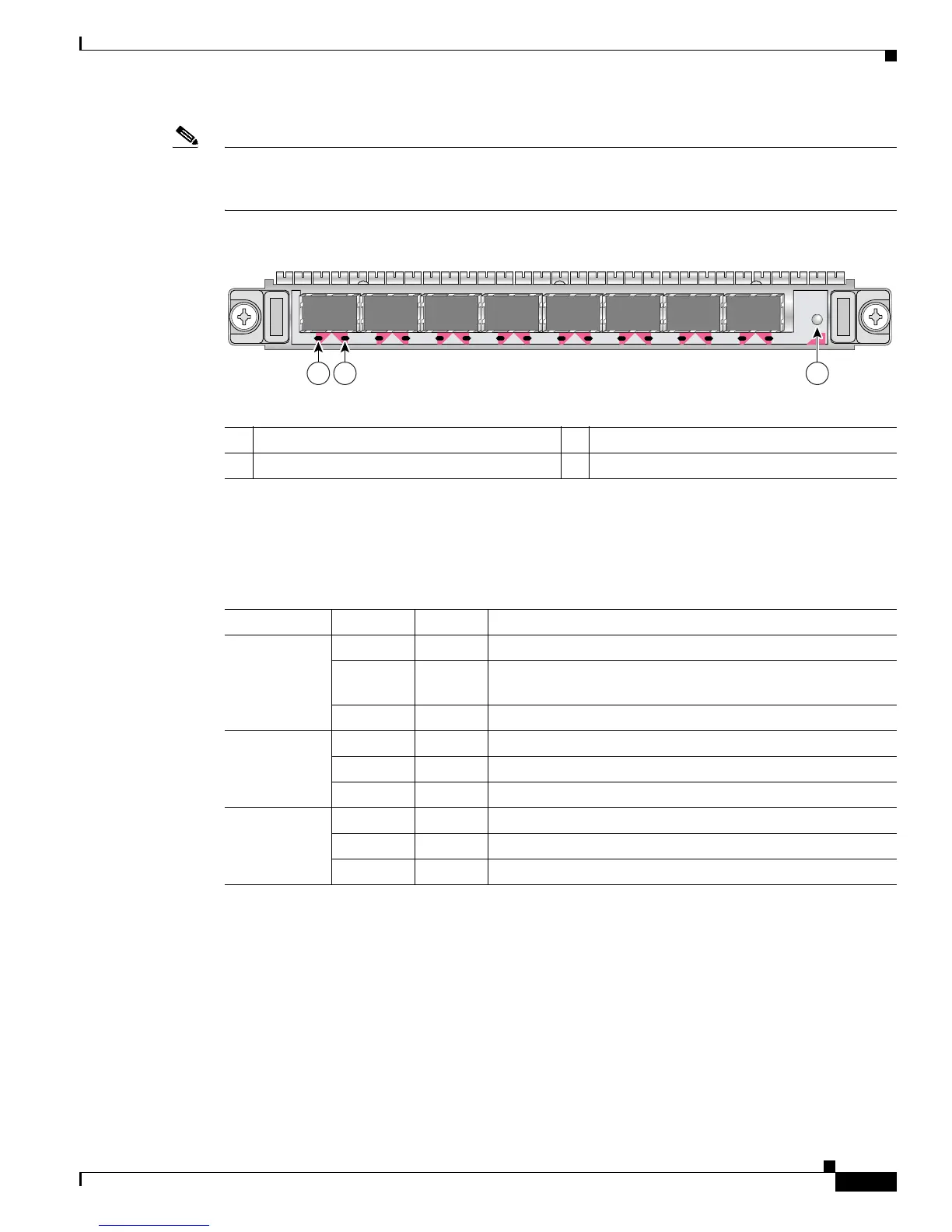

Figure 2-29 8-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA Faceplate
The 2-Port, 4-Port, and 8-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA and the 4-Port and 8-Port
OC-3c/STM-1 POS SPA LEDs are described in Table 2-31.
2-Port, 4-Port, and 8-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA and 4-Port
and 8-Port OC-3c/STM-1 POS SPA Interface Specifications
The framer processes incoming and outgoing SONET or SDH frames. The framer operates at OC-3 line
rates (155.52 Mbps) and OC-12 line rates (622.08 Mbps). Packet data is transported with a
user-configured encapsulation (such as Point-to-Point Protocol [PPP]) and is mapped into the layer 2
frame.
The 2-Port, 4-Port, and 8-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA and the 4-Port and 8-Port
OC-3c/STM-1 POS SPA interface complies with the following IETF RFCs:
1 C/A (Carrier/Alarm) LED 3 STATUS LED
2 A/L (Active Loopback) LED
STATUS
SPA-8XOC12-POS
138896
3
3
C/A
A/L
0
C/A
A/L
1
C/A
A/L
2
C/A
A/L
21
4
C/A
A/L
5
C/A
A/L
6
C/A
A/L
7
C/A
A/L
Table 2-31 2-Port, 4-Port, and 8-Port OC-3c/STM-1 and OC-12c/STM-4 POS SPA and 4-Port and 8-Port
OC-3c/STM-1 POS SPA LEDs
LED Label Color State Meaning
C/A Off Off SONET controller is shut down.
Green On Port is enabled by software, and there is a valid SONET signal
without any alarms.
Amber On Port is enabled by software, and there is at least one alarm.
A/L Off Off Interface is shut down.
Green On Port is enabled by software, loopback is off.
Amber On Port is enabled by software, loopback is on.
STATUS Off Off SPA power is off.
Green On SPA is ready and operational.
Amber On SPA power is on and good; SPA is being configured.
