Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 2 Overview: Cisco 12000 Series Router Shared Port Adapters
1-Port OC-192c/STM-64 POS SPA Overview
• Mate between two OC-48c SPAs in adjacent SIPs
Two 1-Port OC-48c/STM-16 POS SPAs are connected using a 40–pin connector copper mate cable. The
length of the cables allow only two possible connection scenarios, next slot horizontal and same slot
vertical. This assumes that the chassis is mounted vertically. Figure 2-23 shows the mate cables used to
connect the SPAs.

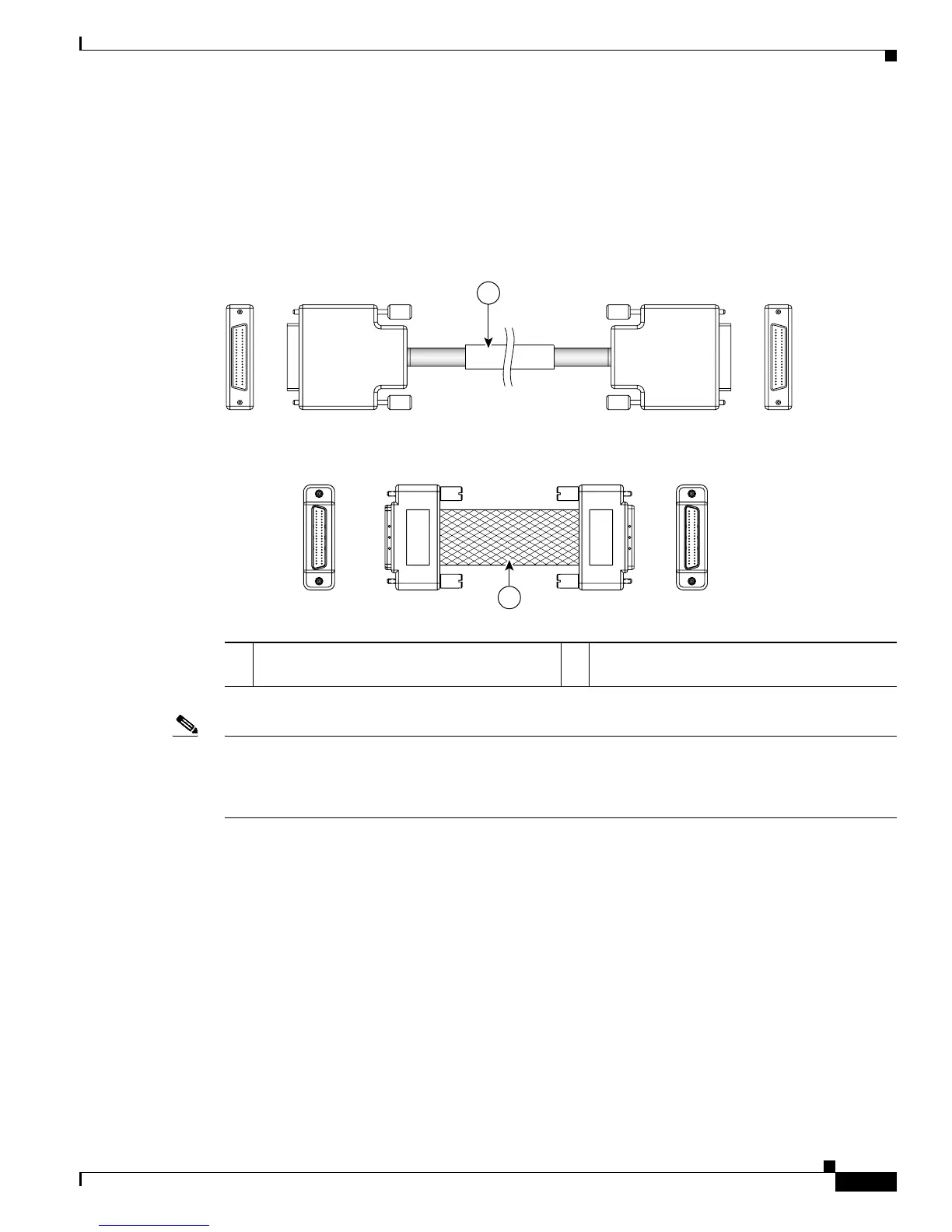

Figure 2-20 SPA Mate Cables
Note The RPR mate cable is only necessary when the SPA is to be used in RPR mode. It is not needed in POS
mode. Support for the RPR feature is dependent on the platform software release feature content. Verify
support for the RPR feature support by reviewing the relevant SPA datasheets or by contacting your
Cisco representative.
1-Port OC-192c/STM-64 POS SPA Overview
The 1-Port OC-192c/STM-64 POS/RPR SPA is a double-height SPA that is installed in two SIP subslots.
The 1-Port OC-192c/STM-64 POS/RPR SPA provides SONET and SDH network connectivity with a
bandwidth of 9.95 Gbps.
For more information about SPA bandwidth, see the “Bandwidth Oversubscription” section on page 2-2.
For more information about SPAs and their compatibility with SIPs and modular optics, see the “SIP and
SPA Compatibility” chapter in this guide.
1 Long length RPR mate cable for single port
RPR SPAs (CBL-RPR-OC48-L)
2 Short length RPR mate cable for single port
RPR SPAs (CAB-RPR-OC48-S)
129198
1
2
