Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 2 Overview: Cisco 12000 Series Router Shared Port Adapters
1-Port OC-192c/STM-64 POS RPR XFP SPA Overview

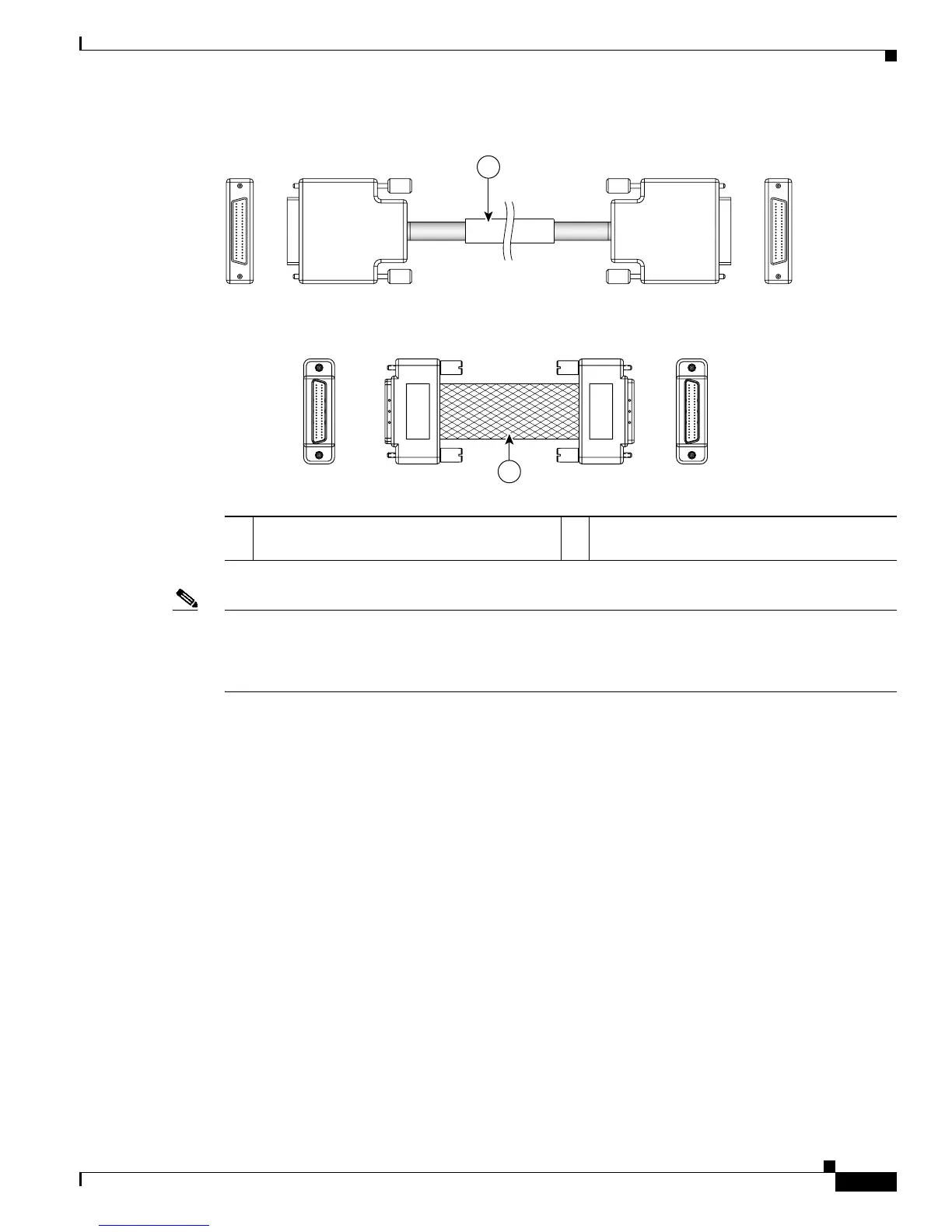

Figure 2-23 SPA Mate Cables
Note The RPR mate cable is only necessary when the SPA is to be used in RPR mode. It is not needed in POS
mode. Support for the RPR feature is dependent on the platform software release feature content. Verify
support for the RPR feature support by reviewing the relevant SPA datasheets or by contacting your
Cisco representative.
1-Port OC-192c/STM-64 POS RPR XFP SPA Overview
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA is a single-height SPA that is installed in one SIP
subslot. The 1-Port OC-192c/STM-64 POS/RPR XFP SPA provides SONET and SDH network
connectivity with a bandwidth of 9.95 Gbps.
For more information about SPA bandwidth, see the “Bandwidth Oversubscription” section in this
chapter. For more information about SPAs and their compatibility with SIPs and modular optics, see the
product overview chapter in this guide.
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA uses a 10-Gbps small form-factor pluggable optical
receptacle for each port allowing connection to single-mode optical fiber. For more information on the
optical fiber cables used with this SPA, see the “1-Port OC-192c/STM-64 POS/RPR SPA Fixed Optical
Transceiver, 40-Pin Connector, and Cables” section on page 2-36.
The following sections describe the 1-Port OC-192c/STM-64 POS/RPR XFP SPA:
• 1-Port OC-192c/STM-64 POS/RPR SPA LEDs, page 2-34
• 1-Port OC-192c/STM-64 POS/RPR SPA Interface Specifications, page 2-35
• 1-Port OC-192c/STM-64 POS/RPR SPA Fixed Optical Transceiver, 40-Pin Connector, and Cables,
page 2-36
1 Long length RPR mate cable for single port
RPR SPAs (CBL-RPR-OC192-L)
2 Short length RPR mate cable for single port
RPR SPAs (CAB-RPR-OC192-S)
129198
1
2
