2-11
Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 2 Overview: Cisco 12000 Series Router Shared Port Adapters
8-Port Fast Ethernet SPA Overview
8-Port FastEthernet SPA Cables, Connectors, and Pinouts
The interface connectors on the 8-Port FastEthernet SPA are eight individual RJ-45 receptacles. You can
use all eight interface connectors simultaneously. Each connection supports IEEE 802.3 and Ethernet
10/100BASE-T interfaces compliant with appropriate standards. Cisco Systems does not supply
Category 5 unshielded twisted-pair (UTP) RJ-45 cables; these cables are available commercially.

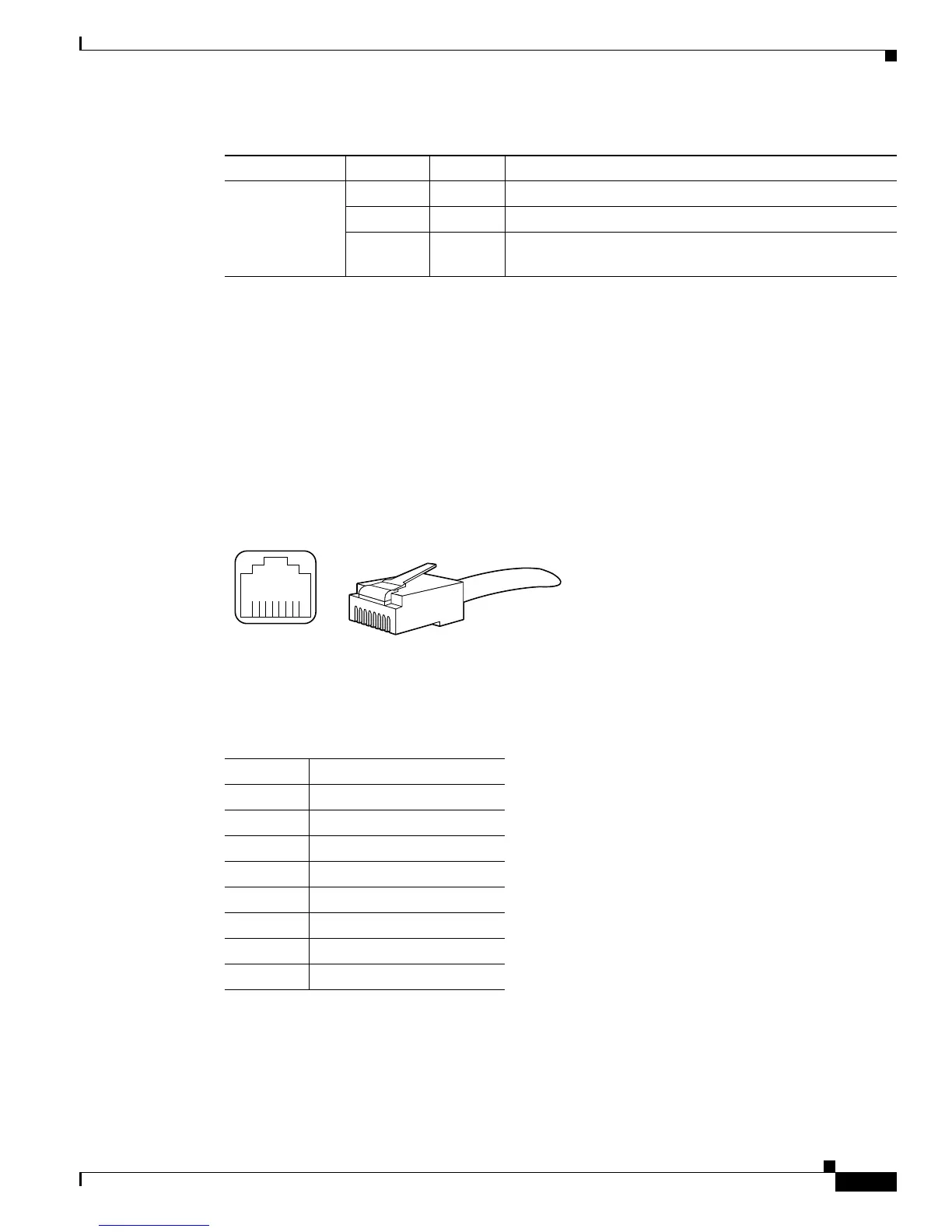

Figure 2-6 shows the RJ-45 connector.
Figure 2-6 RJ-45 Connections, Plug, and Receptacle
Table 2-10 lists the pinouts and signals for the RJ-45 connector.
STATUS Off Off SPA power is off.
Green On SPA is ready and operational.
Amber On SPA power is on and good, and the SPA is being
configured.
1. In this case, port number refers to the numbered LEDs on the 8-Port FastEthernet SPA (0, 1, 2, 3, 4, 5, 6 or 7). Each LED
number on the 8-Port FastEthernet SPA references a port on the SPA.
Table 2-9 8-Port FastEthernet SPA LEDs (continued)
LED Label Color State Meaning
210222
8 7 6 5 4 3 2 1
RJ-45 connector
Table 2-10 RJ-45 Connector Pinout
Pin Description
1 Transmit data + (TxD+)
2TxD–
3 Receive data + (RxD+)
4Reserved
5Reserved
6RxD–
7Reserved
8Reserved
