Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 2 Overview: Cisco 12000 Series Router Shared Port Adapters
1-Port OC-192c/STM-64 POS SPA Overview
The 1-Port OC-192c/STM-64 POS/RPR SPA uses a single,10-Gbps fixed optical receptacle allowing a
connection to single-mode optical fiber. For more information on the optical fiber cables used with this
SPA, see the “1-Port OC-192c/STM-64 POS/RPR SPA Fixed Optical Transceiver, 40-Pin Connector, and
Cables” section on page 2-36.
The following sections describe the 1-Port OC-192c/STM-64 POS/RPR SPA:
• 1-Port OC-192c/STM-64 POS/RPR SPA LEDs, page 2-34
• 1-Port OC-192c/STM-64 POS/RPR SPA Interface Specifications, page 2-35
• 1-Port OC-192c/STM-64 POS/RPR SPA Fixed Optical Transceiver, 40-Pin Connector, and Cables,
page 2-36
1-Port OC-192c/STM-64 POS/RPR SPA LEDs
The 1-Port OC-192c/STM-64 POS/RPR SPA has six LEDs, as shown in Figure 2-21.

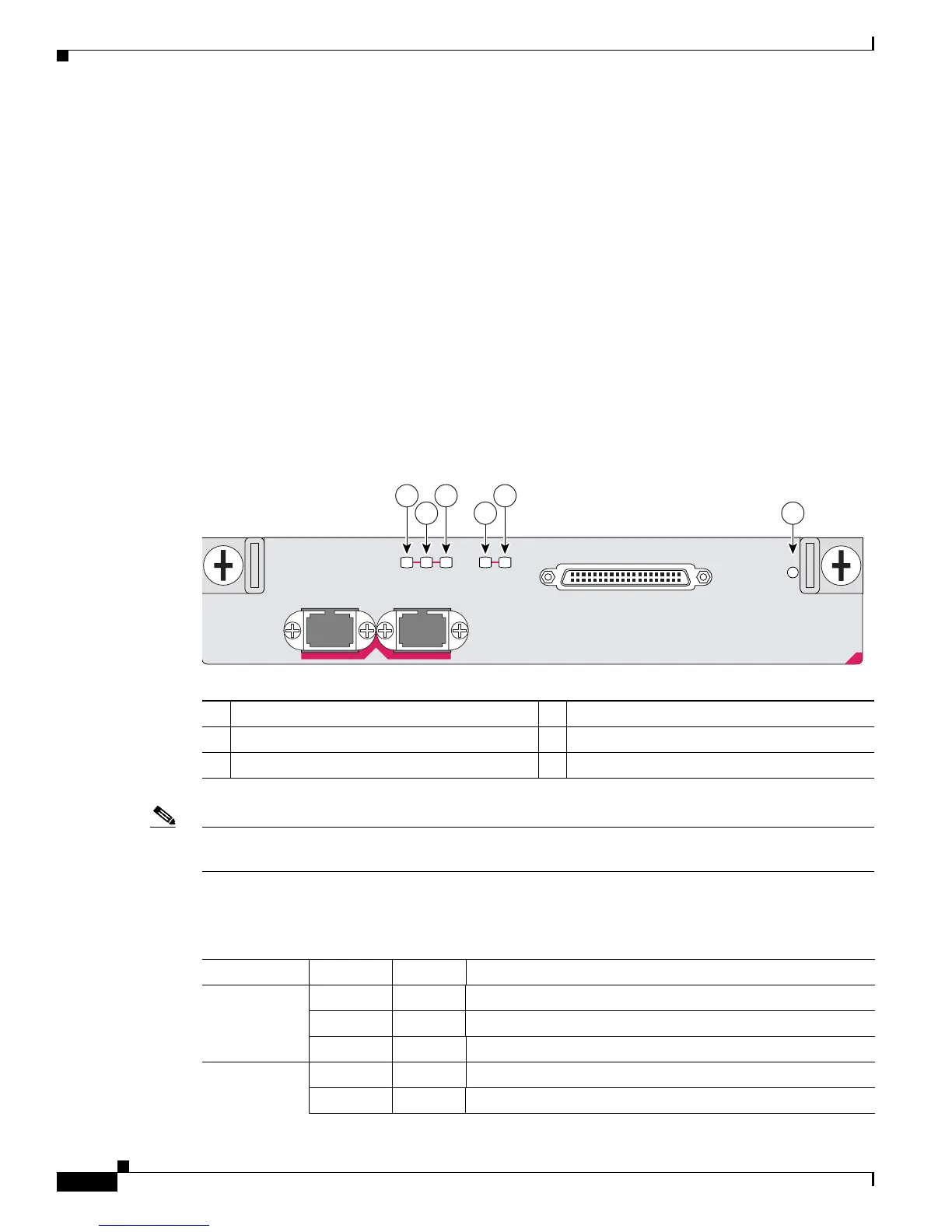

Figure 2-21 1-Port OC-192c/STM-64 POS/RPR SPA Faceplate
Note The WRAP, PASSTHRU, and MATESYNC LEDs apply to the SPA in RPR/SRP mode only. In
Cisco IOS Release 12.0(31)S, RPR/SRP mode is not supported.
The 1-Port OC-192c/STM-64 POS/RPR SPA LEDs are described in Table 2-27.
1 WRAP LED 4 CARRIER LED
2 PASSTHRU LED 5 ACTIVE LED
3 MATESYNC LED 6 STATUS LED
SPA-OC192POS LR
STATUS
MATESYNC
PASSTHRU
WRAP
ACTIVE
CARRIER
0
1
2
3
4 6
5
129138
TX RX
Table 2-27 1-Port OC-192c/STM-64 POS/RPR SPA LEDs
LED Label Color State Meaning
WRAP Off Off Port is not in wrap mode.
Green On Port is in wrap mode somewhere on the ring.
Amber On Port is in wrap mode locally.
PAS STHR U Off Off Port is not in pass-thru mode.
Amber On Port is in pass-thru mode.
