2-38
Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 2 Overview: Cisco 12000 Series Router Shared Port Adapters
1-Port OC-192c/STM-64 POS RPR XFP SPA Overview
1-Port OC-192c/STM-64 POS/RPR XFP SPA LEDs
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA has six LEDs, as shown in Figure 2-24.

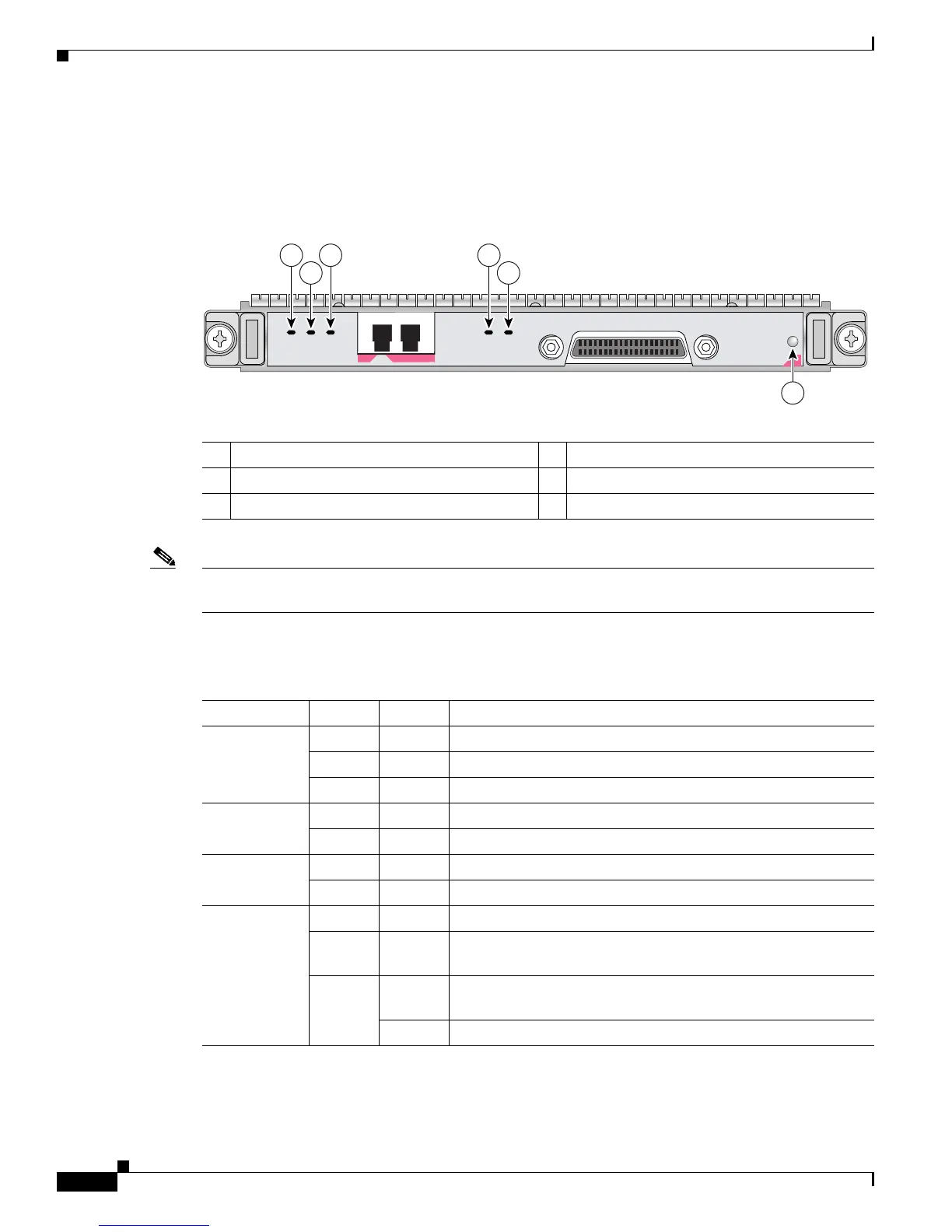

Figure 2-24 1-Port OC-192c/STM-64 POS/RPR XFP SPA Faceplate
Note The WRAP, PASSTHRU, and MATESYNC LEDs apply to the SPA in RPR/SRP mode only. As of
Cisco IOS Release 12.0(31)S, RPR/SRP mode is not supported.
Table 2-28 describes the 1-Port OC-192c/STM-64 POS/RPR XFP SPA LEDs.
1 WRAP LED 4 CARRIER LED
2 PASSTHRU LED 5 ACTIVE LED
3 MATESYNC LED 6 STATUS LED
MATESYNC
PASSTHRU
WRAP
CARRIER
ACTIVE
SPA-0C192POS-XFP
STATUS
0
129432
1
2
3 4
5
6
Table 2-28 1-Port OC-192c/STM-64 POS/RPR XFP SPA LEDs
LED Label Color State Meaning
WRAP Off Off Port is not in wrap mode.
Green On Port is in wrap mode somewhere on the ring.
Amber On Port is in wrap mode locally.
PASSTHRU Off Off Port is not in pass-thru mode.
Amber On Port is in pass-thru mode.
MATESYNC Off Off Mate port is not synchronized.
Green On Mate port is synchronized.
CARRIER Off Off Port is not enabled by software.
Green On Port is enabled by software, and there is a valid SONET signal
without alarms.
Amber On Port is enabled by software, and there is at least one alarm (LOS,
LOF, RDI, and so on).
Blinking SRP mode mismatch alarm is indicated.
