1-9
Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 1 Overview: Cisco 12000 Series Router SPA Interface Processors
Cisco 12000 SIP-600 Overview
The Cisco 12000 SIP-600 LEDs are described in Table 1 -6.
Cisco 12000 SIP-600 Physical Specifications
The Cisco 12000 SIP-600 physical specifications are shown in the following table.
SPA Subslot Numbering on the Cisco 12000 SIP-600
The Cisco 12000 SIP-600 accepts 2 single-width SPAs or 1 dual-width SPA.

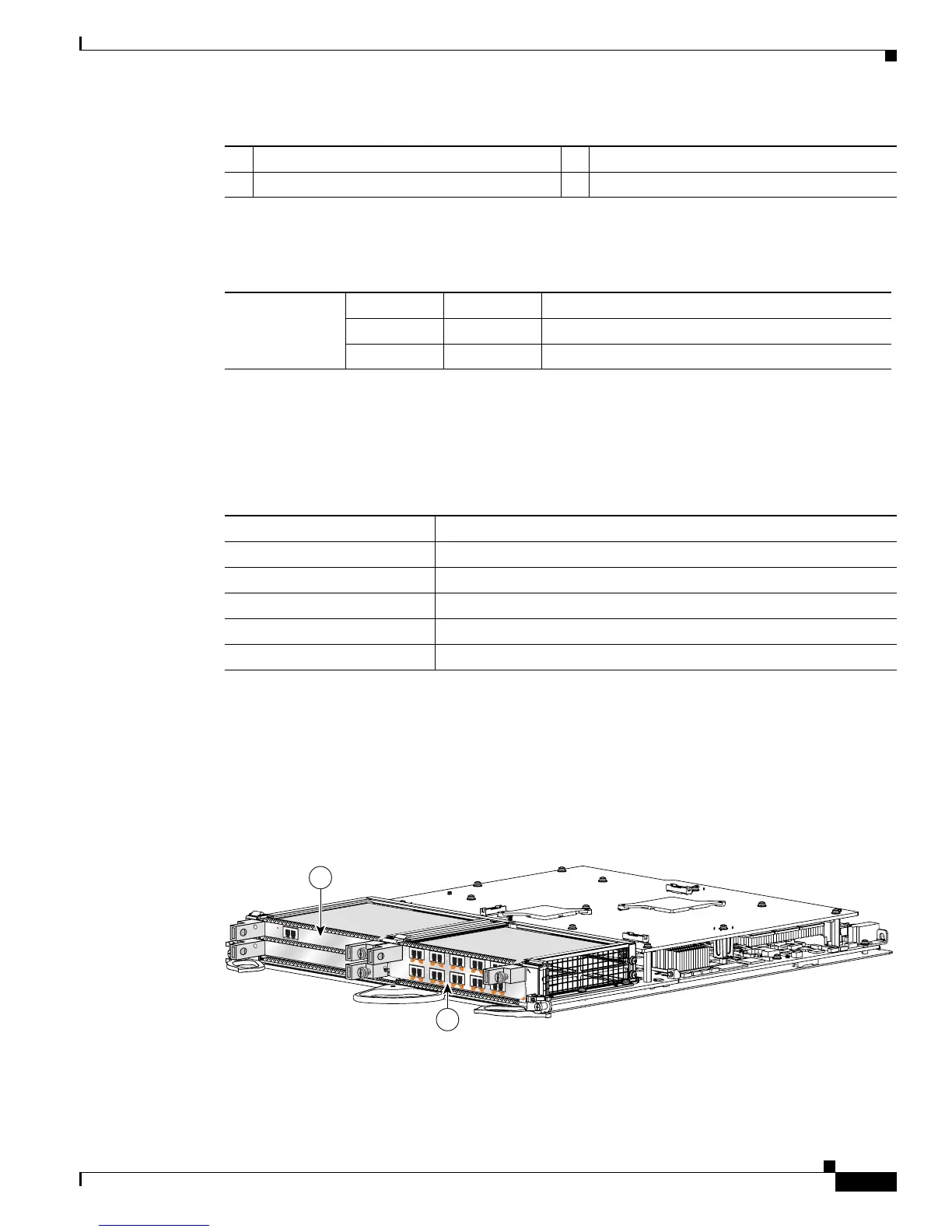

Figure 1-7 shows a Cisco 12000 SIP-600 with 2 SPAs installed. The left SPA slot is subslot 0 and the
right SPA slot is subslot 1. If one dual-width SPA is installed, it is recognized as being in subslot 0.
Figure 1-7 Subslot Locations for the 1-Port 10-Gigabit Ethernet SPA
1 SPA subslot 0 3 Ejector Levers
2 SPA subslot 1 4 Status LED
Table 1-6 Cisco 12000 SIP-600 LEDs
LED Label Color State Meaning
Status Yellow On SIP is powered and IOS is loading.
Green On SIP is active.
Table 1-7 Cisco 12000 SIP-600 Physical Specifications
Description Specifications
Physical dimensions Occupies one line card slot on a Cisco 12000 Series Router
Shipping weight 10kg
Operating temperature 32 to 104°F (0 to 40°C)
Relative humidity 10 to 90 percent, noncondensing
Storage temperature –4 to 149°F (–20 to 65°C)
12000-SIP-600
0
116872
STATUS
SPA-1XTENGE-XFP-A
ACTIVE/LINK
SPA10X1GE-A
STATUS
4
9
3
8
2
7
1
6
0
5
A/L
A/L
A/L
A/L
A/L
A/L
A/L
A/L
A/L
A/L
1
2
