1-12
Cisco 12000 Series Router SIP and SPA Hardware Installation Guide
Release 12.0(32)SY1, OL-8831-01, Rev. G6, July 19, 2007
Chapter 1 Overview: Cisco 12000 Series Router SPA Interface Processors
Cisco 12000 SIP-401 Overview

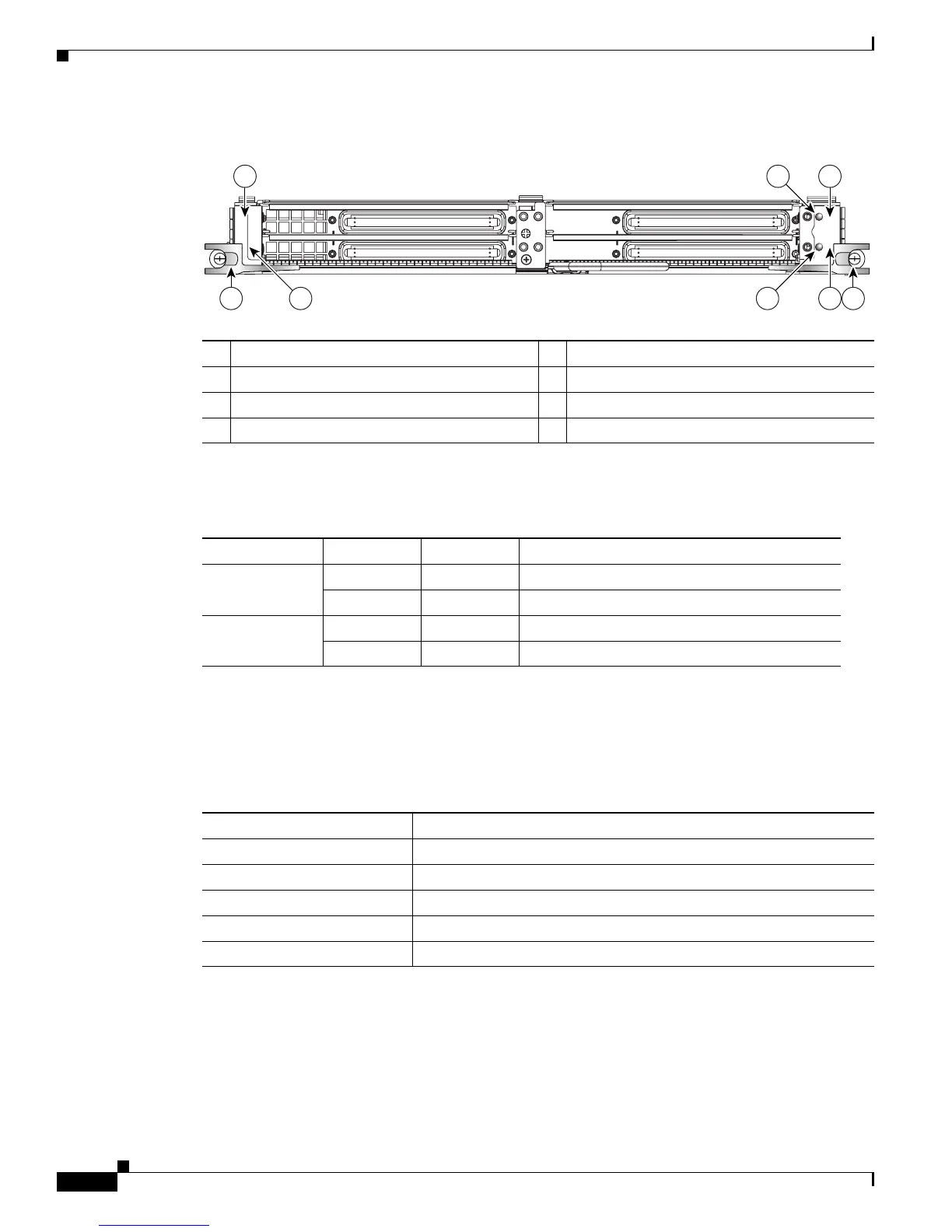

Figure 1-10 Cisco 12000 SIP-401 Face Plate
The Cisco 12000 SIP-401 LEDs are described in Table 1-10.
Cisco 12000 SIP-401 Physical Specifications
The Cisco 12000 SIP-401 physical specifications are shown in the following table.
SPA Slot Numbering on the Cisco 12000 SIP-401
The Cisco 12000 SIP-401 accepts 4 single-width, single-height SPAs.
1 SPA subslot 0 5 Ejector Levers
2 SPA subslot 1 6 Status LED
3 SPA subslot 2 7 Rate LED
4 SPA subslot 3
1
3
0
2
12000-SIP-400
158211
RATE
5 54
1 2
3 7
6
STATUS
Table 1-10 Cisco 12000 SIP-401 LED
LED Label Color State Meaning
Status Yellow On IOS is loaded and SIP is ready to be enabled.
Green On SIP is active.
Rate Off Off SIP is SIP-401 or SIP-501.
Green On SIP is SIP-601.
Table 1-11 Cisco 12000 SIP-401 Physical Specifications
Description Specifications
Physical dimensions Occupies one line card slot on a Cisco 12000 Series Router
Shipping weight 10 kg
Operating temperature 32 to 104°F (0 to 40°C)
Relative humidity 10 to 90 percent, noncondensing
Storage temperature –4 to 149°F (–20 to 65°C)
