Chapter 3 Install and Connect Cisco 4000 Series ISRs
Install the Router

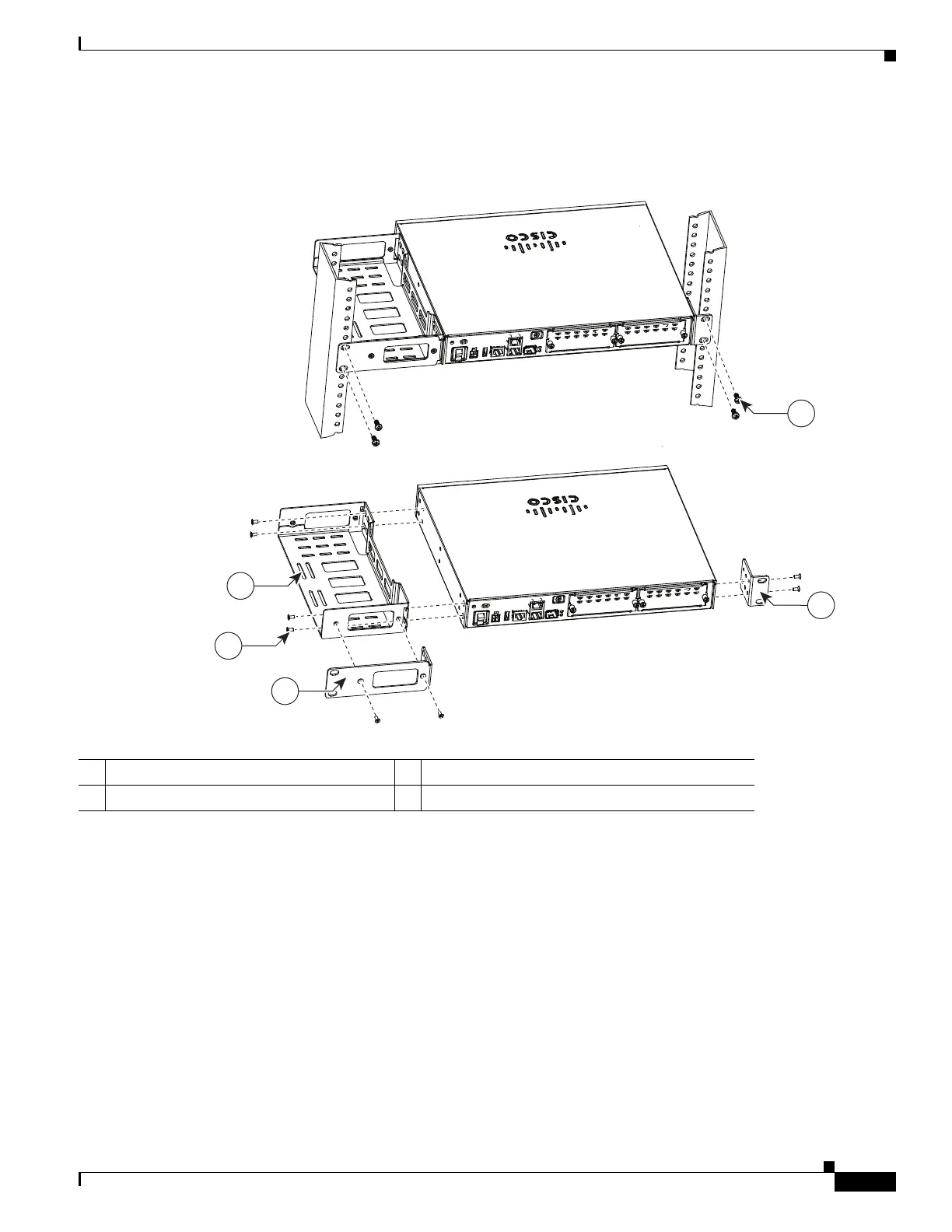

Figure 3-11 AC Power Bracket Installation for Left Mounting (Cisco 4221 ISR shown)
1 Mounting Screws 2 AC power supply unit installation module
3 23-inch SBC brackets 4 19-inch SBC brackets
385355
2
1
3
4
1
