6-41
Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Remove and Replace Cisco 4000 Series ISRs Power Supplies
AC Power Supplies
Overview of the AC Power Supply
Power supply has a similar modular form factor without cabling for easy removal and replacement.

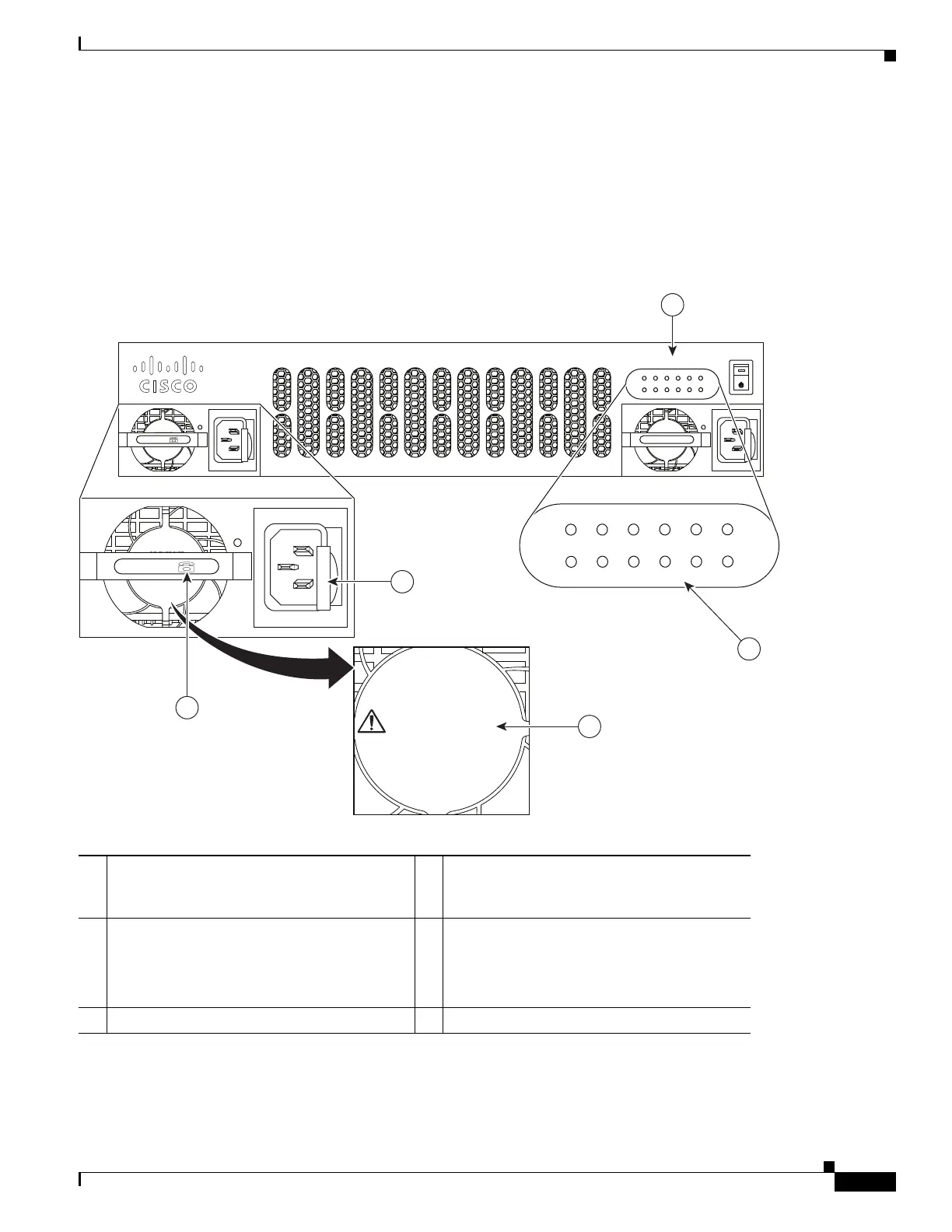

Figure 6-29 Power Supply Unit (Cisco 4451-X ISR Shown)
1 450W/1000W power supply (1000W
shown-the phone icon designates it as a
1000W)
2 PSU Latch
3 Multiple power supply unit warning
message—appears when there are multiple
power inputs
4 Product series name
5 LEDs
WARNING:
MULTIPLE POWER
INPUTS - REMOVE TO
DE-ENERGIZE
ADVERTISSEMENT:
POUR ÉJEINDRE LUNITÉ,
DEBRANCHEZ
D’ALIMENTATION
À ENTRÉES
MULTIPLES
Cisco 4400 Series
PSU0
PSU1 GE
POE
POE0
POE1 BOOST ISC FAN STAT
FLASH
TEMP PWR
PSU0
PSU1 GE
POE
POE0
POE1 BOOST ISC FAN STAT
FLASH
TEMP PWR
100-240V- 5.1-2.5A
50/60Hz
WARNING:
MULTIPLE POWER
INPUTS - REMOVE TO
DE-ENERGIZE
ADVERTISSEMENT:
POUR ÉJEINDRE LUNITÉ,
DEBRANCHEZ
D’ALIMENTATION
À ENTRÉES
MULTIPLES
100-240V- 5.1-2.5A
50/60Hz
WARNING:
MULTIPLE POWER
INPUTS - REMOVE TO
DE-ENERGIZE
ADVERTISSEMENT:
POUR ÉJEINDRE L’UNITÉ,
DEBRANCHEZ
D’ALIMENTATION
À ENTRÉES
MULTIPLES
POE
POE
4
1
3
2
5
390474

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Cisco 4431 ISR and is the answer not in the manual?

Cisco 4431 ISR Specifications

General IconGeneral
Total onboard WAN or LAN 10/100/1000 ports4
RJ-45-based ports4
SFP-based ports2
NIM slots2
Enhanced service-module slots1
Rack height1 RU
Redundant power supplyOptional
Memory4 GB
Flash Memory4 GB
USB Ports2
Console Port1 x RJ-45
Auxiliary Port1 x RJ-45
Power SupplyAC 100-240V
Operating Temperature0 to 40°C
Storage Temperature-20 to 65°C
Humidity5% to 85% noncondensing
Dimensions (H x W x D)44.5 x 438.15 x 438.15 mm
Weight7.5 kg (16.5 lb)
