Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views
Cisco 4331 ISR Chassis
This section contains the following views of Cisco 4331 ISR router:
• Bezel Side Ports and LEDs on Cisco 4331 ISR (Figure 1-14)
• Back Panel Ports and Slots on Cisco 4331 ISR (Figure 1-15)

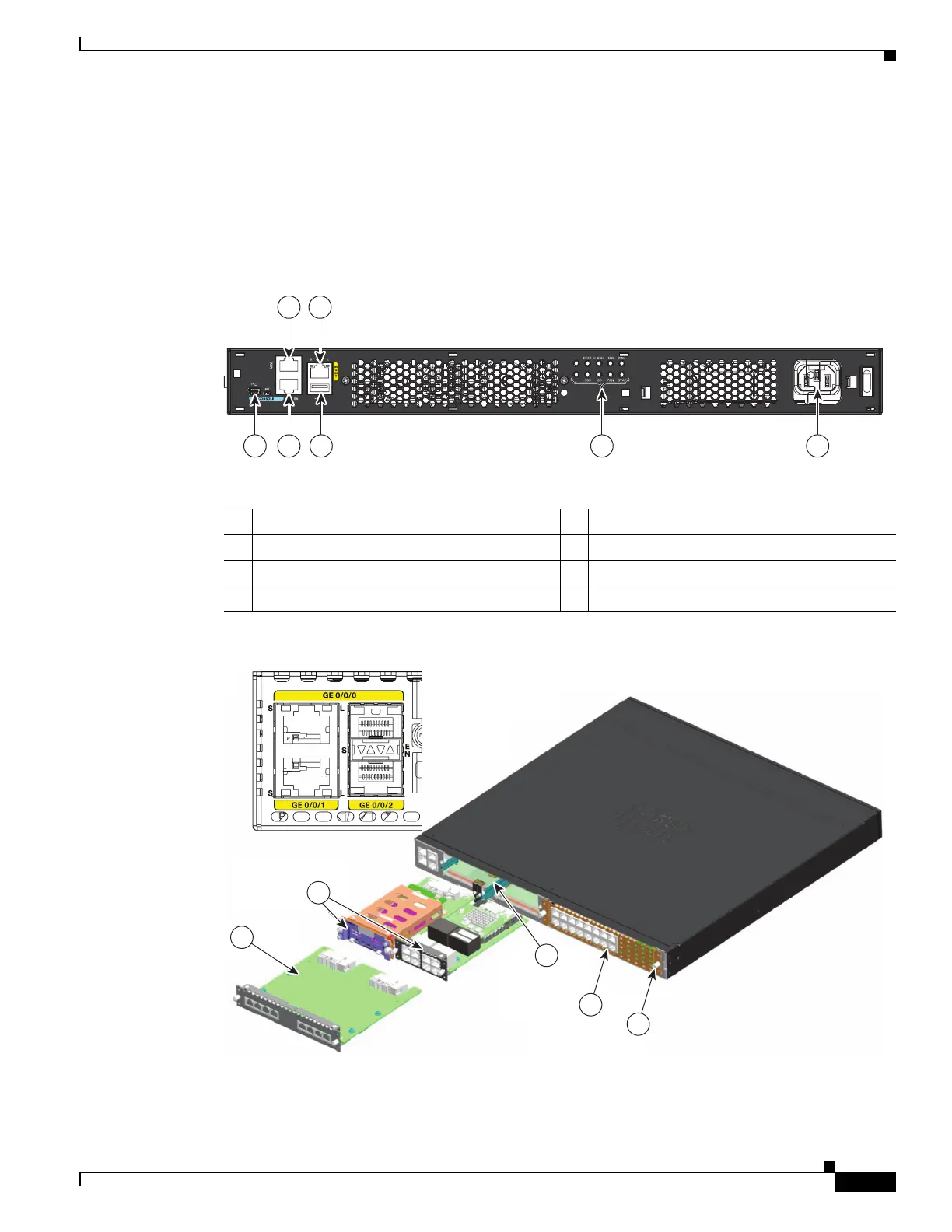

Figure 1-14 Bezel Side Ports and LEDs on Cisco 4331 ISR
Figure 1-15 Back Panel Ports and Slots on Cisco 4331 ISR
1 USB Type B mini port 2 Serial console port
3 AUX port 4 USB Type A port
5 Management port 6 LEDs
7 AC Power
391462
1 2
3 5
4 6 7
1
2
3
4
5
391463

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
