Cisco 4431 ISR User Manual

6-17
Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Overview of the SSD Carrier Card NIM (NIM-SSD)

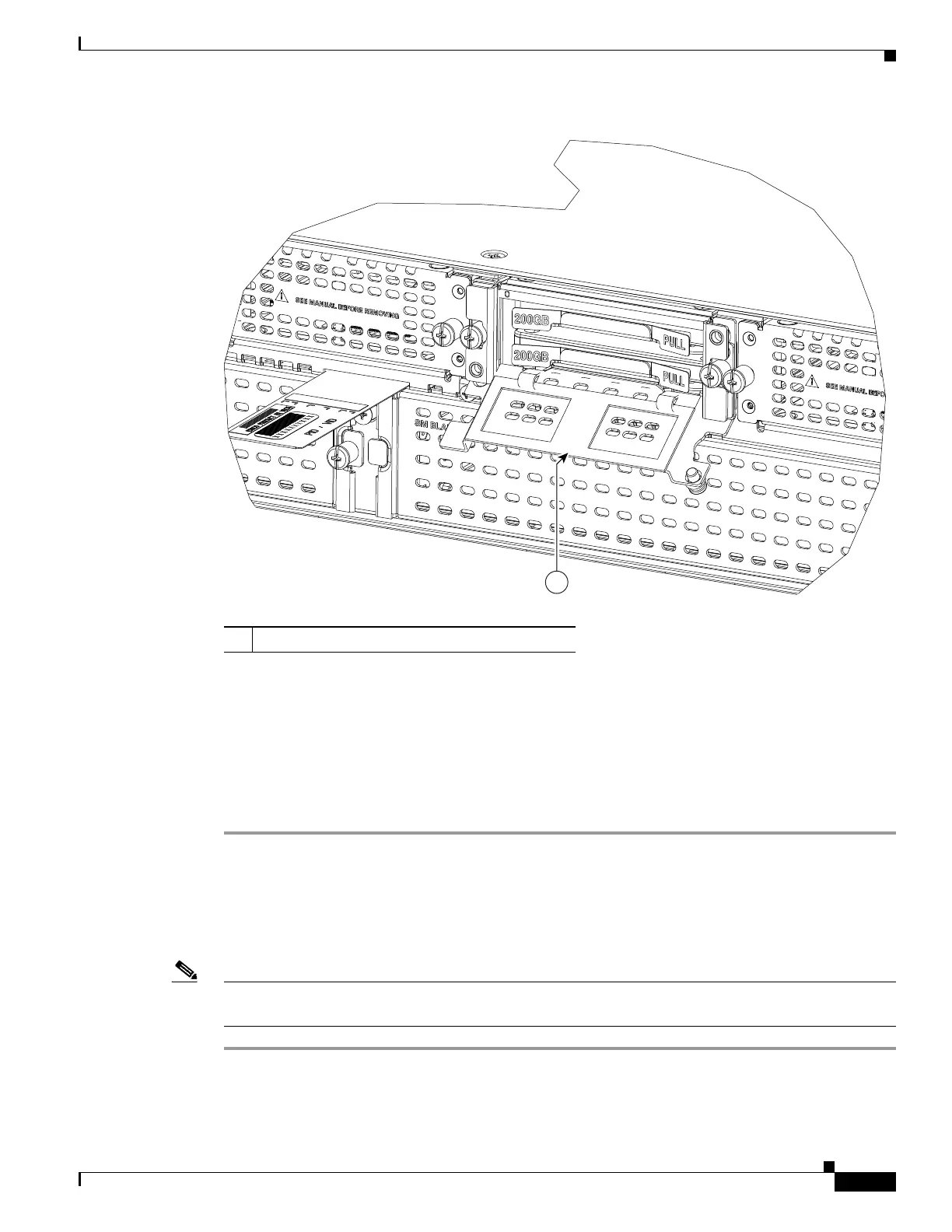

Figure 6-11 Opening the SSD Slot Cover
Step 3 Insert an SSD in the lower slot first.
Step 4 Insert the SSD connector end first with the connector side down and serial number facing up
(Figure 6-8).
Step 5 A second SSD may be inserted in the upper slot as shown in Figure 6-9.
Step 6 Rotate the SSD card slot cover up and place it over the SSDs.
Step 7 Tighten the captive fasteners on the SSD card slot cover.
Remove SSD Drives from the NIM-SSD
To remove the SSD cards from the NIM carrier:
Note Prior to removing the NIM-SSD card, power off the device using the hw-module subslot slot / subslot
stop command in EXEC mode.
Step 1 On the NIM-SSD, loosen the captive screws retaining the NIM-SSD slot cover.
Step 2 Rotate the SSD card slot cover down, exposing the slots that hold the SSDs.
347343
1
1 Carrier card slot cover

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
