Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Hardware Features of Cisco 4000 Series ISRs
Fans, Ventilation, and Airflow
Chassis Ventilation
Router and chassis temperature is regulated with internal fans. An onboard temperature sensor controls
the fan speed. The fans are always on when the router is powered on. Under most conditions, the fans
operate at the slowest speed to conserve power and reduce fan noise. When necessary, the fans operate
at the higher speeds under conditions of higher ambient temperature. To replace Cisco 4451 ISR,
Cisco 4431 ISR, and Cisco ISR4351 fan trays, see the “Replace a Fan Tray” section on page 6-53.

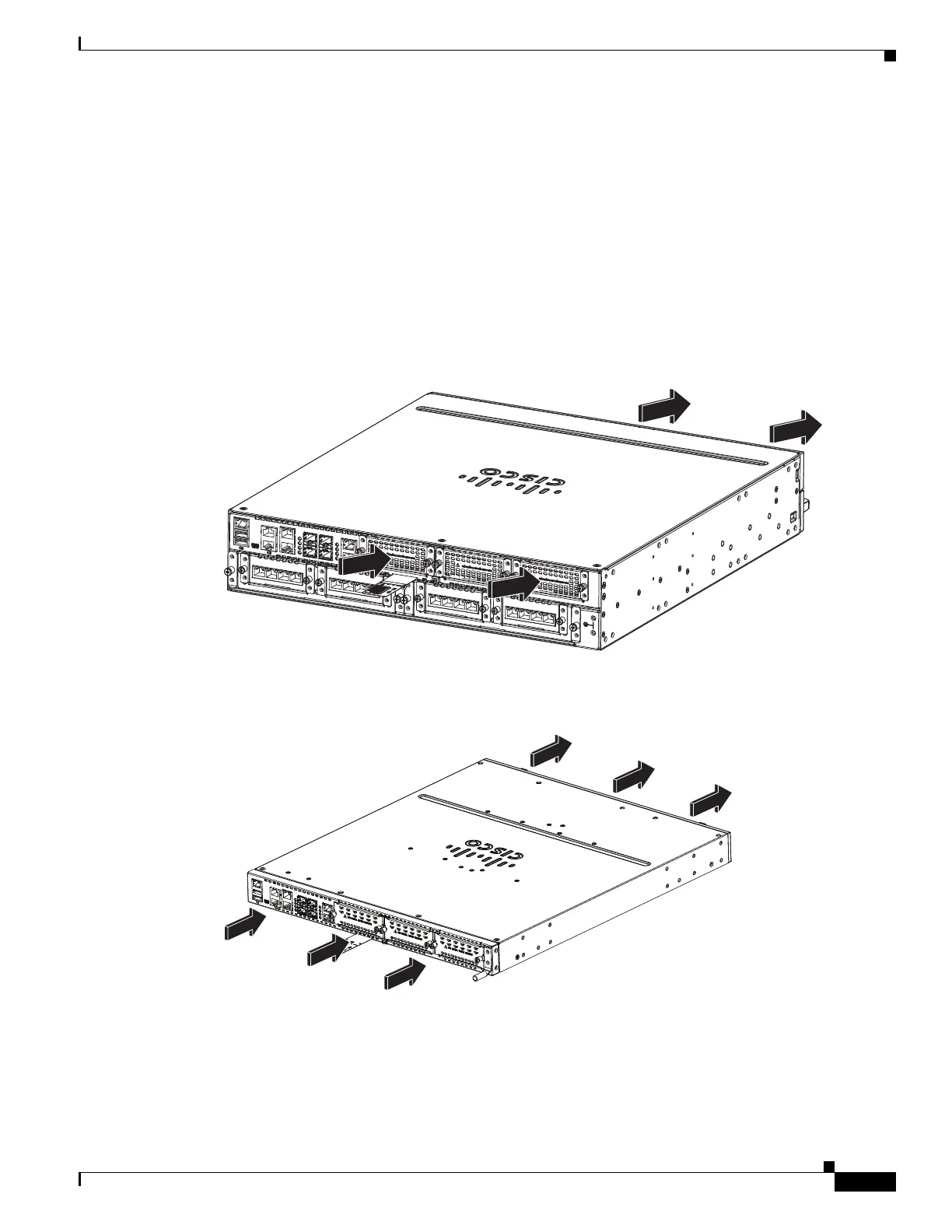

Figure 1-26 shows Cisco 4451 ISR airflow, Figure 1-27 shows Cisco 4431 ISR airflow, Figure 1-28
shows Cisco 4321 ISR airflow, and Figure 1-29 shows Cisco 4221 ISR airflow.
Figure 1-26 Cisco 4451 ISR Airflow
Figure 1-27 Cisco 4431 ISR Airflow
303009
391890

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
