Hardware Installation Guide for Cisco 4000 Series Integrated Services Routers
OL-32185-02
Chapter 6 Install and Upgrade Internal Modules and FRUs
Overview of the SSD Carrier Card NIM (NIM-SSD)
Install SSD Drives into the NIM Carrier Card
To insert one or two SSD drives into the carrier NIM:
Note Prior to installing the NIM-SSD card, power off the device using the hw-module subslot slot / subslot
stop command in EXEC mode.
Step 1 On the NIM-SSD, loosen the captive screws retaining the SSD card slot cover (Figure 6-10).

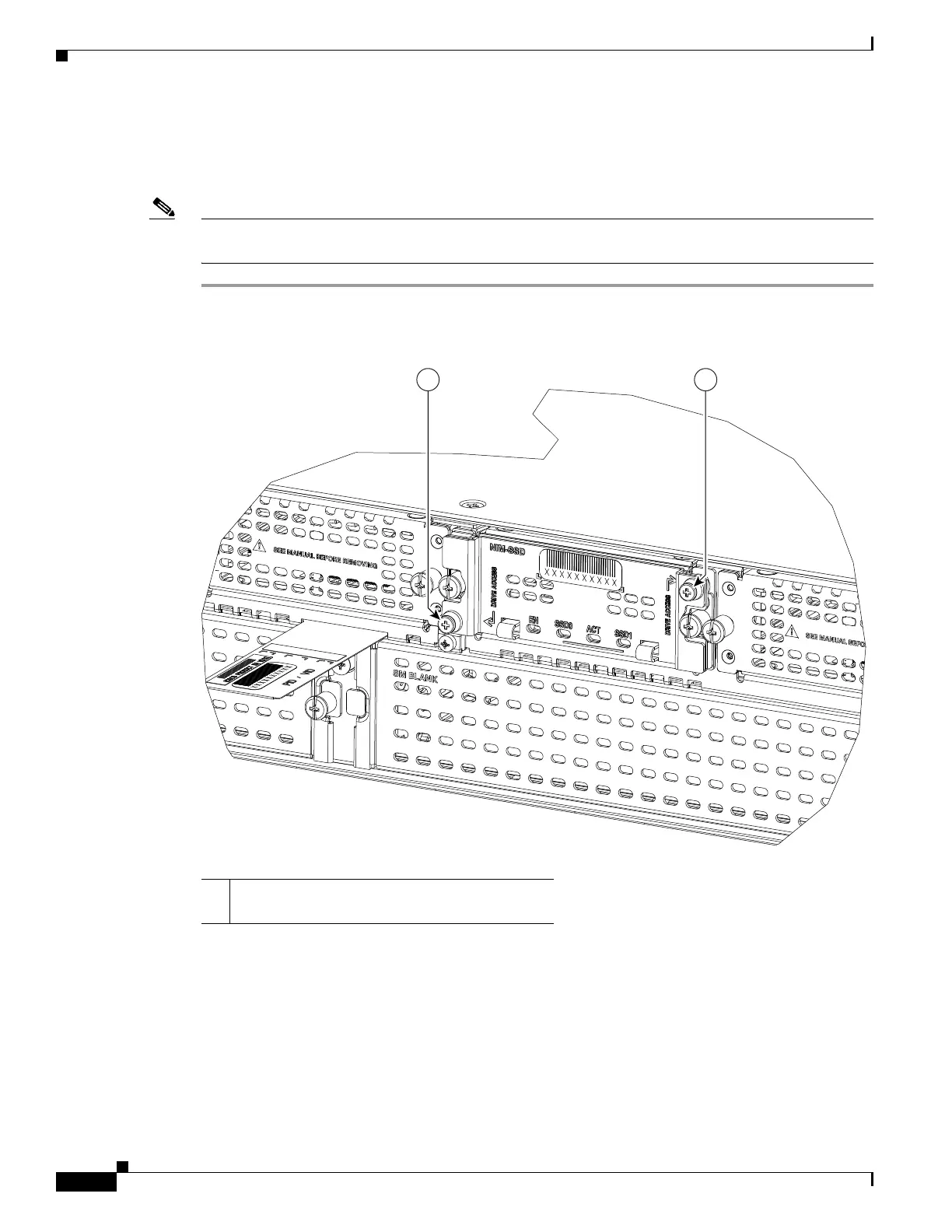

Figure 6-10 Opening the SSD Slot Cover
Step 2 Rotate the SSD card slot cover down, exposing the slots that hold the SSDs as shown in Figure 6-11.
11
347342
1 Captive screws on the SSD slot cover attaching
the SSD Drive to the NIM Carrier Card

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
