Chapter 6 Install and Upgrade Internal Modules and FRUs
Overview of the NIM-HDD Card

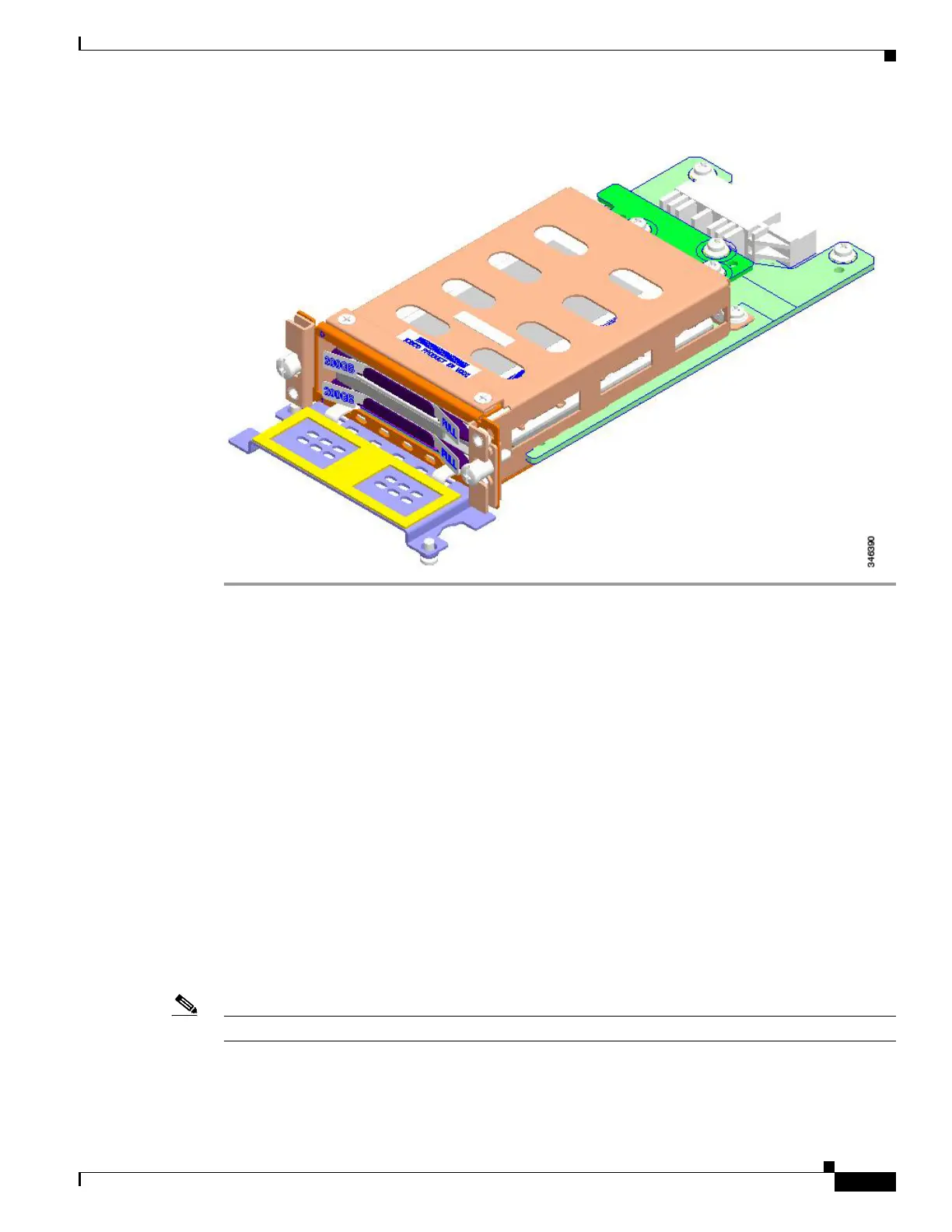

Figure 6-13 Side View of the NIM-SSD
To insert or remove the NIM-SSD into any router NIM slot, see the“Remove and Replace
Cisco NIM-SSD or NIM-HDD” section in this chapter.
Overview of the NIM-HDD Card
The NIM-HDD is a network interface module that is used to support hard disk drive (HDD) connection
for Cisco 4400 Series ISR and Cisco 4300 ISR.
The NIM-HDD module has the following features:
• Provides 1 TB of memory.
• The NIM form-factor supports and houses a single field replaceable 15 mm HDD or two SSDs.
• On-board PCIe dual channel SATA controller enabling the NIM-HDD in any NIM slot of the router
(Controller Mode)
• Support for SATA pass-through mode
• Support for module level OIR operation
• Support for hot plug of SSD/HDDs
Note A drive is removable or insertable when the power is running on the SSD/HDD connector.

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
