Chapter 6 Install and Upgrade Internal Modules and FRUs
Overview of the NIM-HDD Card
• On-board Quack2 for module authentication
• Power and reset
• Firmware upgrade
Note The removal of a drive during active read-write operation is not supported. Ensue that the drive is shut
down before you replace the NIM-HDD.
Figure 6-14 shows the HDD card that can be inserted into the NIM chassis shown in Figure 6-15.
Figure 6-16 shows the entire Cisco NIM-HDD.

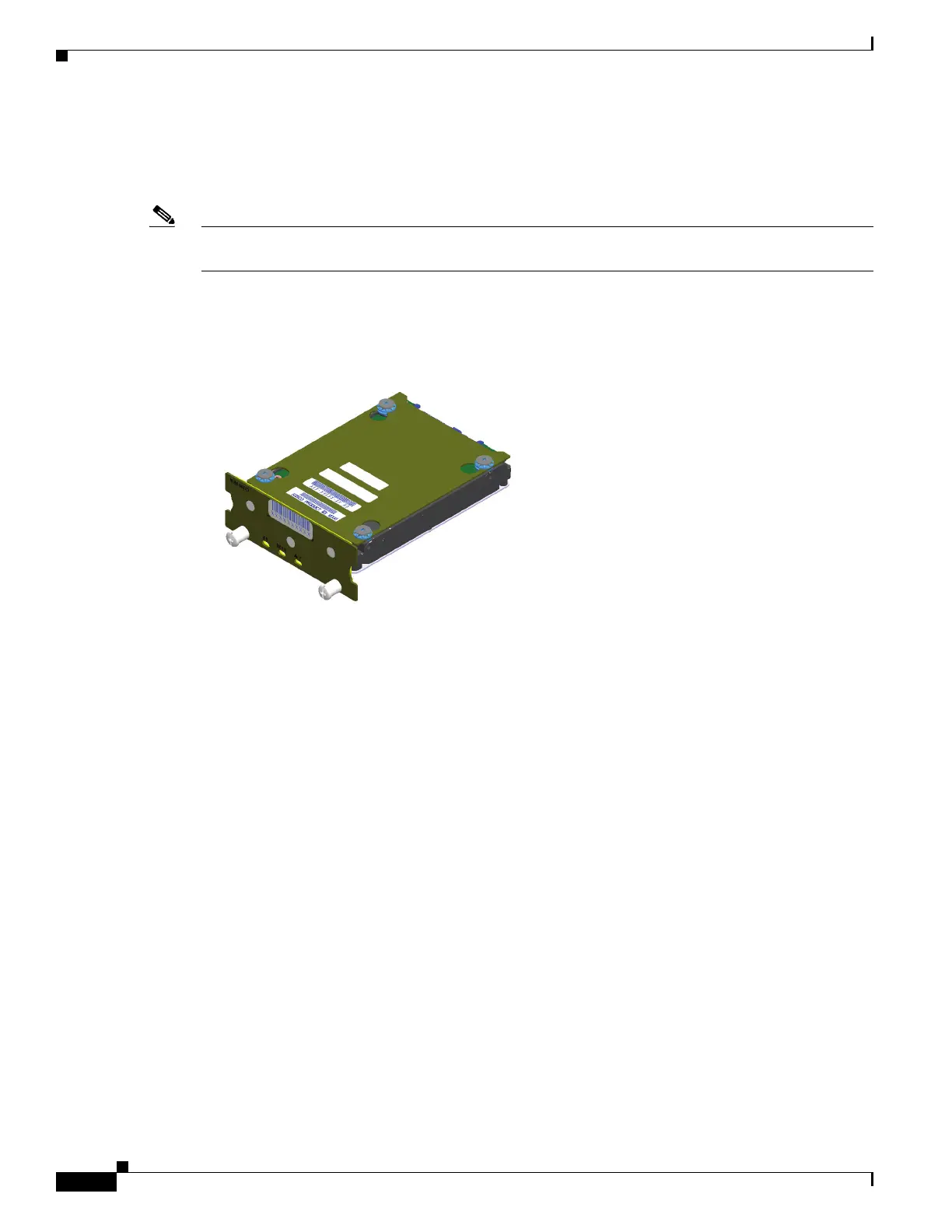

Figure 6-14 HDD Card
Figure 6-15 NIM Chassis for the HDD
390923

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
