Overview of the SSD Carrier Card NIM (NIM-SSD)
LEDs on NIM-SSD
Table 6-1 describes the LEDs on NIM-SSD as shown in Figure 6-5.

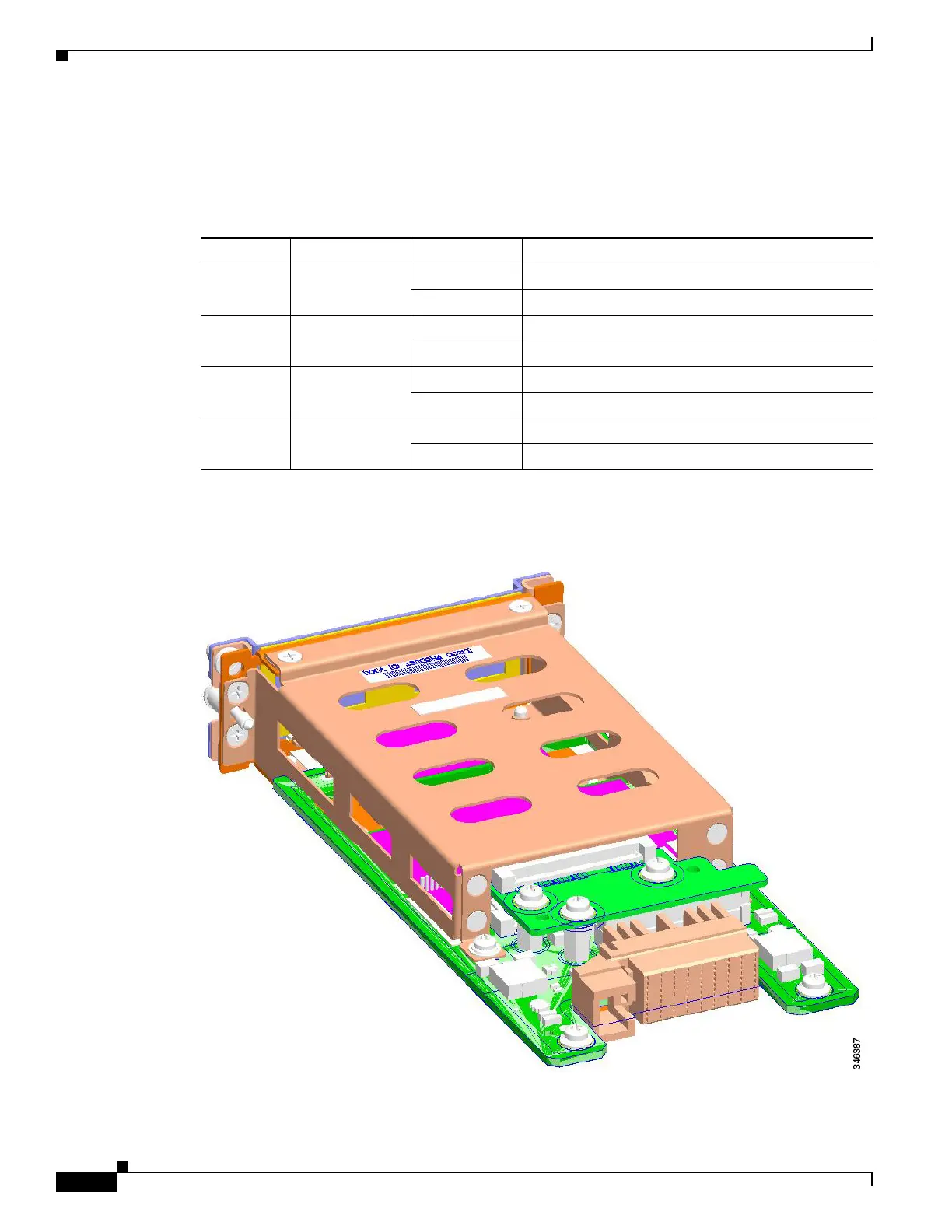

Figure 6-6 shows the rear view of the SSD carrier card NIM, which fits into the router.
Figure 6-6 Rear View of the SSD Carrier Card NIM
Table 6-1 SSD Drive LEDs
LED Represents Color Description
EN Module power Green Module is powered on.
Off Module power is off.
SSD0 Solid state drive
in slot 0
Green SSD present.
Off No SSD drive in slot 0.
ACT SSD activity Green Activity in the SSD drive.
Off No activity.
SSD1 Solid state drive
in slot 1
Green SSD present.
Off No SSD in slot 1.

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
