Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views
Cisco 4321 ISR Chassis
This section contains the following views of Cisco 4321 ISR router:
• Back Panel Ports on Cisco 4321 ISR
• LEDs on Cisco 4321 ISR (Figure 1-17)
• LEDs on Cisco 4321 ISR (Figure 1-18)

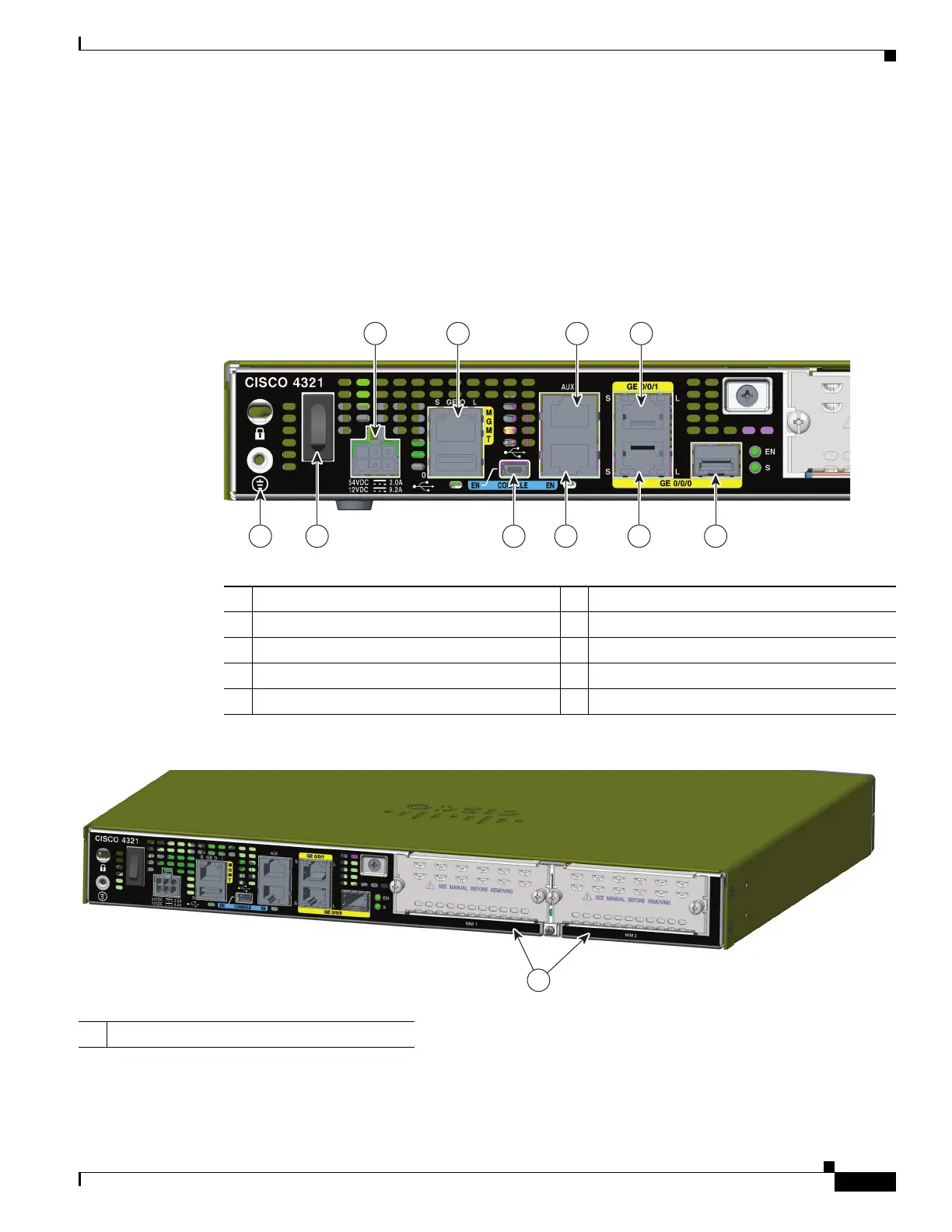

Figure 1-17 Back Panel Ports on Cisco 4321 ISR
Figure 1-18 Back Panel (I/O Side) View of Cisco 4321 ISR
1 Grounding 2 Power switch
3 Power input connector 4 GE “MGMT” port (with USB port below)
5 USB Type B mini port 6 Console port
7 Auxiliary port 8 GE 0/0/1 (copper cable) port
9 GE 0/0/0 RJ-45 (copper cable) port 10 GE 0/0/0 SFP (fiber-optic) port
1 NIM slots
391468
3 4 7 9
1 2
5
10
86
391469
1

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
