Hardware Installation Guide for the Cisco 4000 Series Integrated Services Router
OL-32185-02
Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views
Cisco 4351 ISR Chassis
This section contains the following views of Cisco 4351ISR chassis:
• Power Supply and Bezel Side View of Cisco 4351 ISR (Figure 1-9)
• Back Panel Ports, Slots, and Serial Number on Cisco 4351 ISR (Figure 1-10)
• Ports on Cisco 4351 ISR (Figure 1-11)
• LEDs on Cisco 4351 ISR (Figure 1-12)

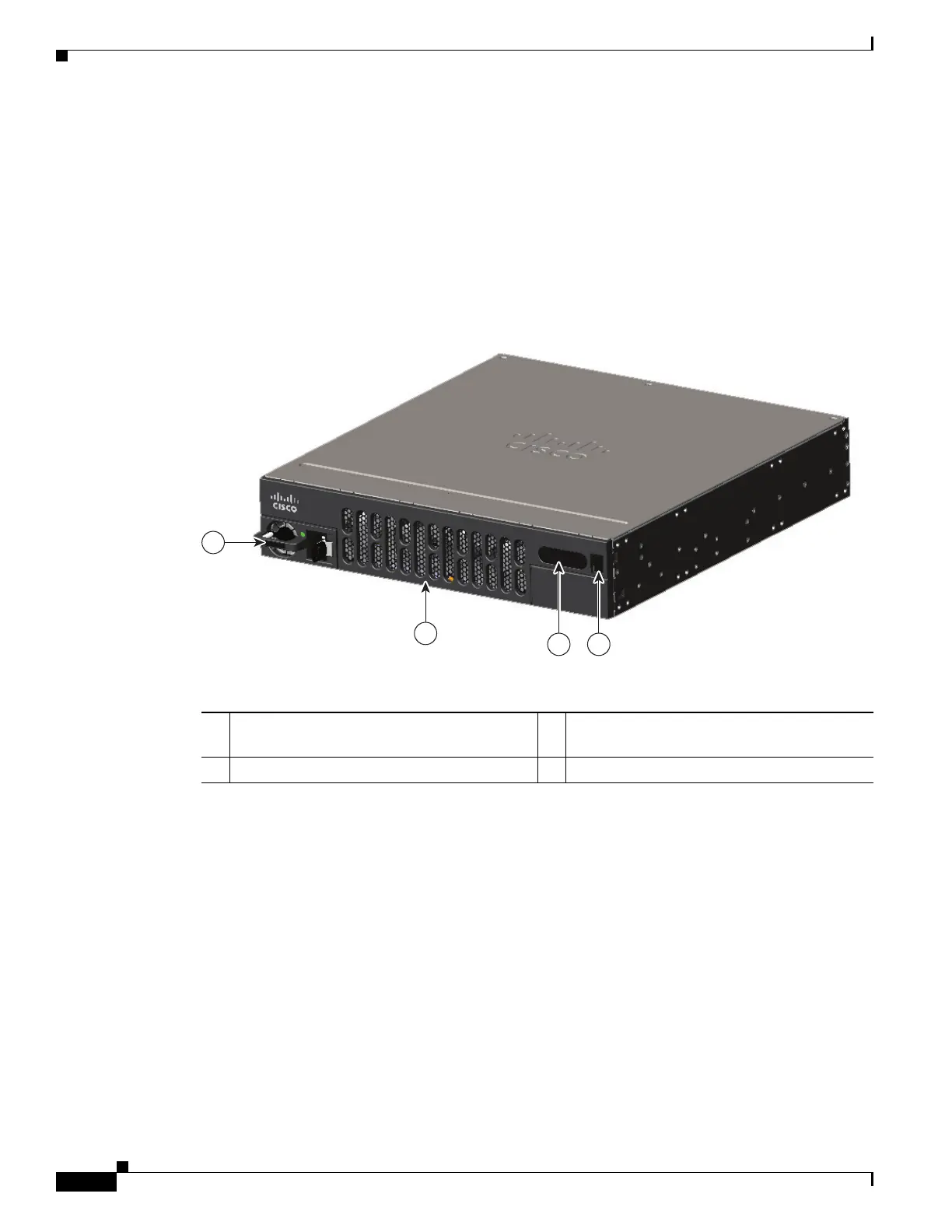

Figure 1-9 Power Supply and Bezel Side View of Cisco 4351 ISR
1 Power supply unit 2 Router fan tray (hidden behind the removable
bezel)
3 LEDs 4 Router power On/Off switch
391464
1
2
3 4

Cisco 4431 ISR Specifications

General

Total onboard WAN or LAN 10/100/1000 ports	4
RJ-45-based ports	4
SFP-based ports	2
NIM slots	2
Enhanced service-module slots	1
Rack height	1 RU
Redundant power supply	Optional
Memory	4 GB
Flash Memory	4 GB
USB Ports	2
Console Port	1 x RJ-45
Auxiliary Port	1 x RJ-45
Power Supply	AC 100-240V
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 65°C
Humidity	5% to 85% noncondensing
Dimensions (H x W x D)	44.5 x 438.15 x 438.15 mm
Weight	7.5 kg (16.5 lb)
