Chapter 1 Overview of Cisco 4000 Series ISRs
Chassis Views

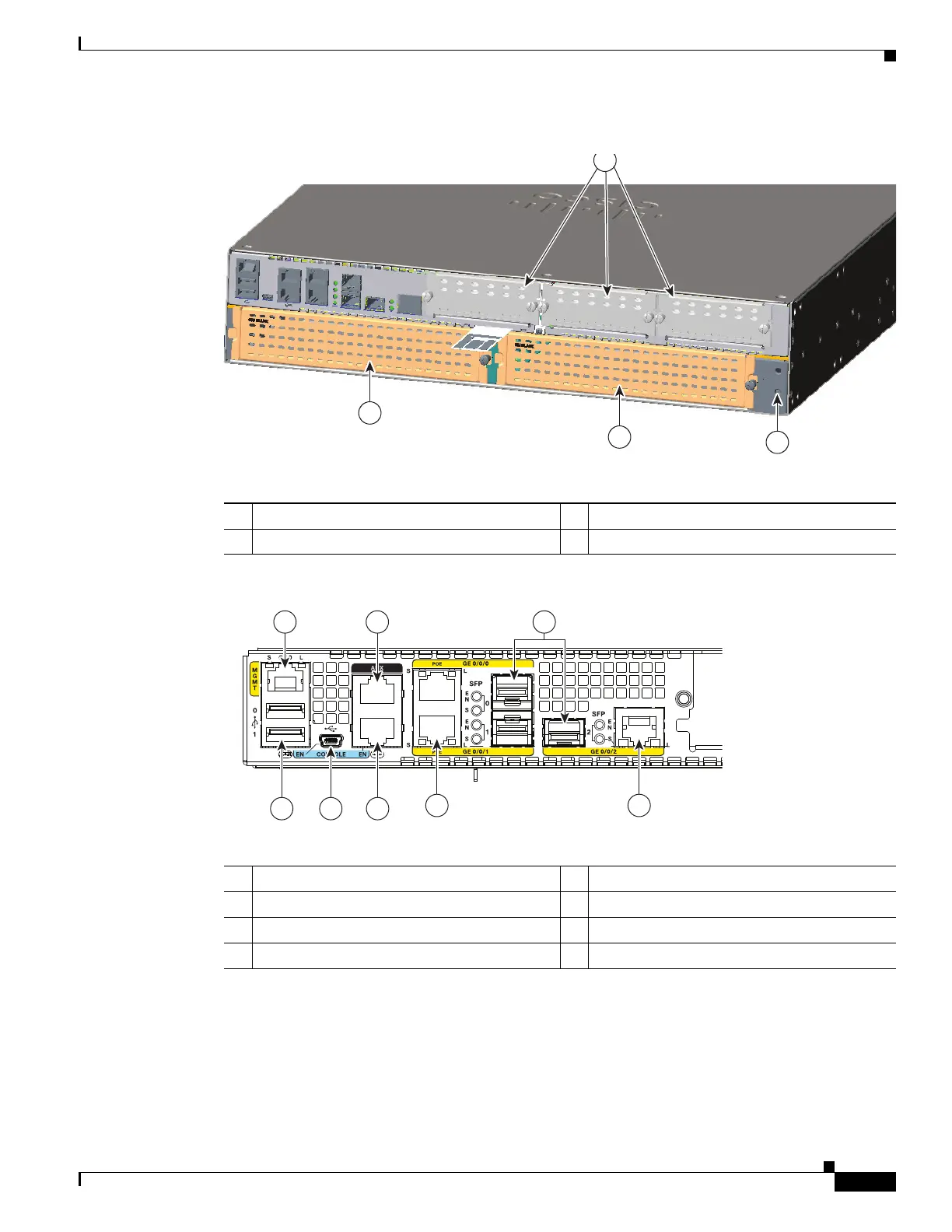

Figure 1-10 Back Panel Ports, Slots, and Serial Number on Cisco 4351 ISR
Figure 1-11 Ports on Cisco 4351 ISR
1 Enhanced Service Module (SM-X) slot 2 Enhanced Service Module (SM-X) slot
3 Ground connection 4 NIM slots
1
2
3
4
1 GE management port 2 USB Type A port
3 USB Type B mini port 4 Auxiliary port
5 Console port 6 RJ-45 port (GE 0/0/1)
7 SFP port (GE 0/0/0) 8 RJ-45 port (GE/0/0/2)
391467
1
2
3
5
6
8
4
7
