Chapter 3 Install and Connect Cisco 4000 Series ISRs
Install the Router
Caution Be sure to leave space above and below each router in a rack to allow for cooling air circulation.

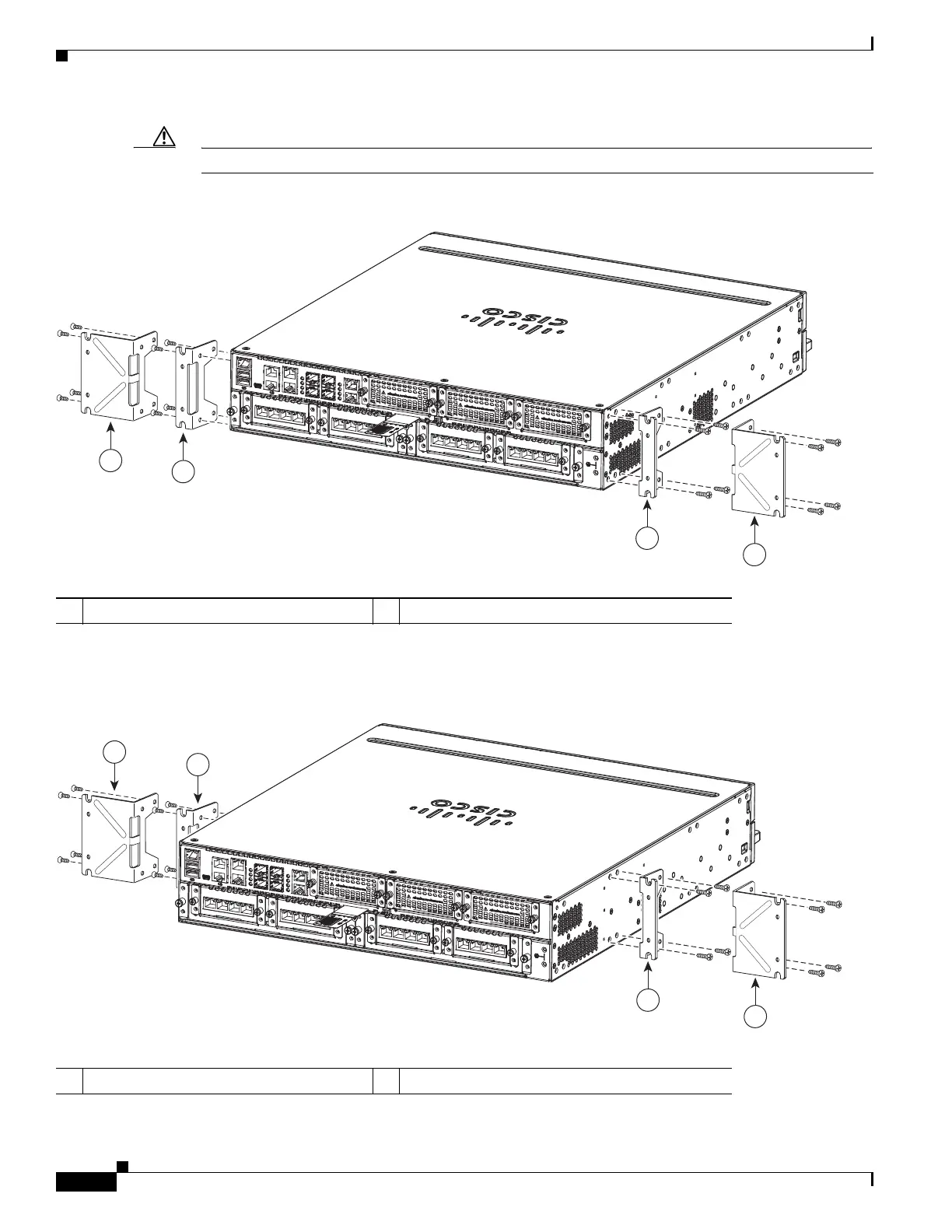

Figure 3-4 Bracket Installation for Back Mounting (Cisco 4451-X ISR shown)
Figure 3-5 Bracket Installation for Center-Back Mounting (Cisco 4451-X ISR shown)
1 23-inch SBC brackets 2 19-inch EIA brackets
302955
1
2
1
2
1 23-inch SBC brackets 2 19-inch EIA brackets
302956
1
2
1
2
