Firepower 7000 and 8000 Series Installation Guide
Chapter 4 Installing a Firepower Managed Device
Identifying the Sensing Interfaces
Firepower 7010, 7020, 7030, and 7050
The Firepower 7010, 7020, 7030, and 7050 are delivered with eight copper port sensing interfaces, each

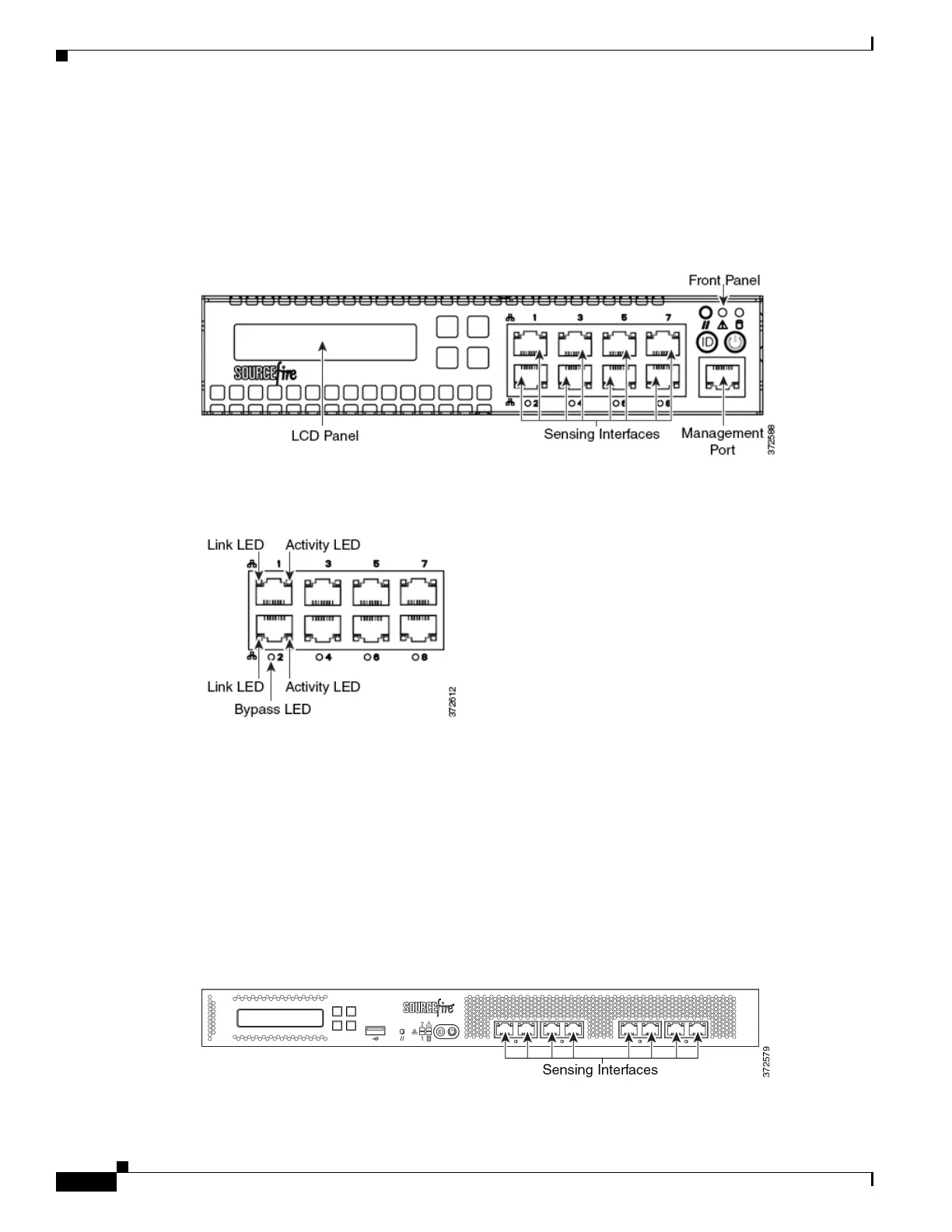

with configurable bypass capability. The following illustration of the front of the chassis indicates the
location of the sensing interfaces.
Figure 4-1 Eight Port 1000BASE-T Copper Configurable Bypass Interfaces
You can use these connections to passively monitor up to eight separate network segments. You can also
use paired interfaces in inline or inline with bypass mode to deploy the device as an intrusion prevention
system on up to four networks.
If you want to take advantage of the device’s automatic bypass capability, you must connect two
interfaces vertically (interfaces 1 and 2, 3 and 4, 5 and 6, or 7 and 8) to a network segment. Automatic
bypass capability allows traffic to flow even if the device fails or loses power. After you cable the
interfaces, you use the web interface to configure a pair of interfaces as an inline set and enable bypass
mode on the inline set.
Firepower 7110 and 7120
The Firepower 7110 and 7120 are delivered with eight copper port sensing interfaces, or eight fiber port
sensing interfaces, each with configurable bypass capability. The following illustration of the front of
the chassis indicates the location of the sensing interfaces.
Figure 4-2 Firepower 7110 and 7120 Copper Interfaces
