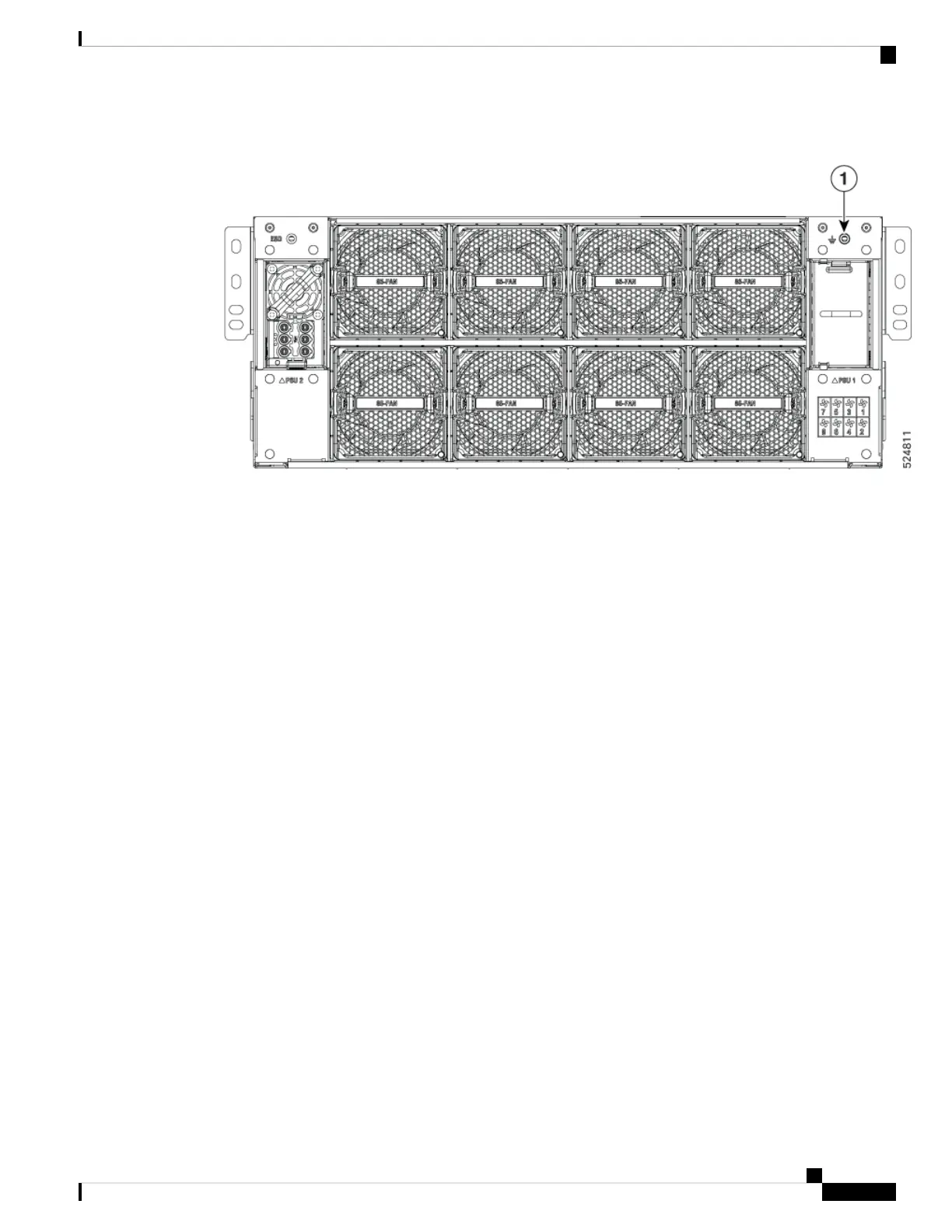

Figure 26: Grounding Receptacle on the rear of the Chassis
Step 2 Plug the one end of the grounding wire to the grounding receptacle on the switch.
Note
You can ground the switch either on the front or rear end of the chassis.
Hardware Installation Guide for Cisco 8500 Switches
37
Unpack and Install the Chassis
Locate and Ground the Chassis
