Step 8 (Optional) Use a second key expansion module spine connector to connect the second key expansion module
to the first key expansion module.
Step 9 (Optional) Use a third key expansion module spine connector to connect the third key expansion module to
the second key expansion module.
Step 10 Use a screwdriver to fasten the screws into the phone.

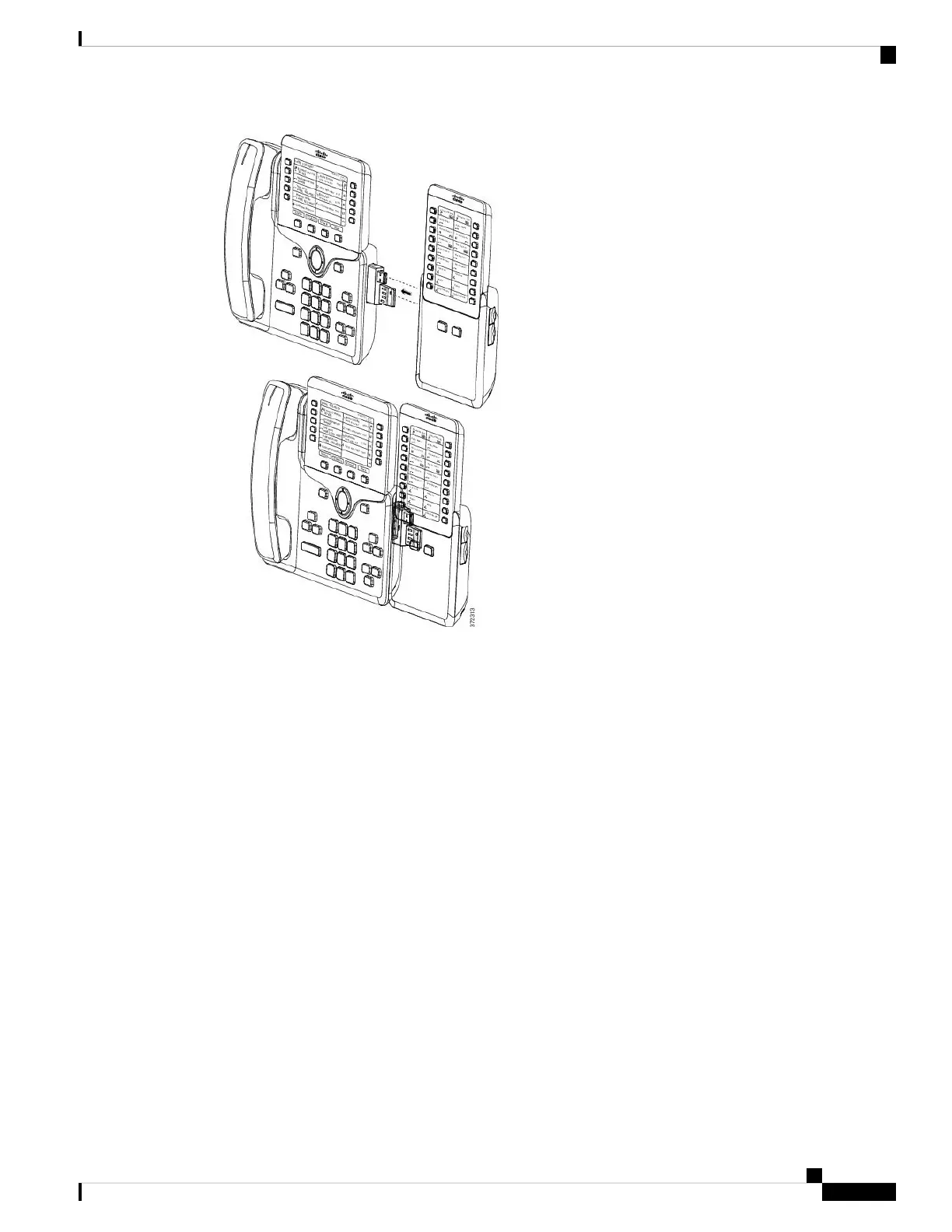

This step ensures that the phone and key expansion module remain connected at all times. This diagram shows
the location of the screw holes on the phone and one key expansion module.
Cisco IP Phone 8800 Series Multiplatform Phone Administration Guide for Release 11.3(1) and Later
481
