The package contains the following items:
• One phone bracket
• One wall bracket
• Four #8-18 x 1.25-inch Phillips-head screws with four anchors
• Two K30x8mm self-tapping screws
• One 6-inch Ethernet cable

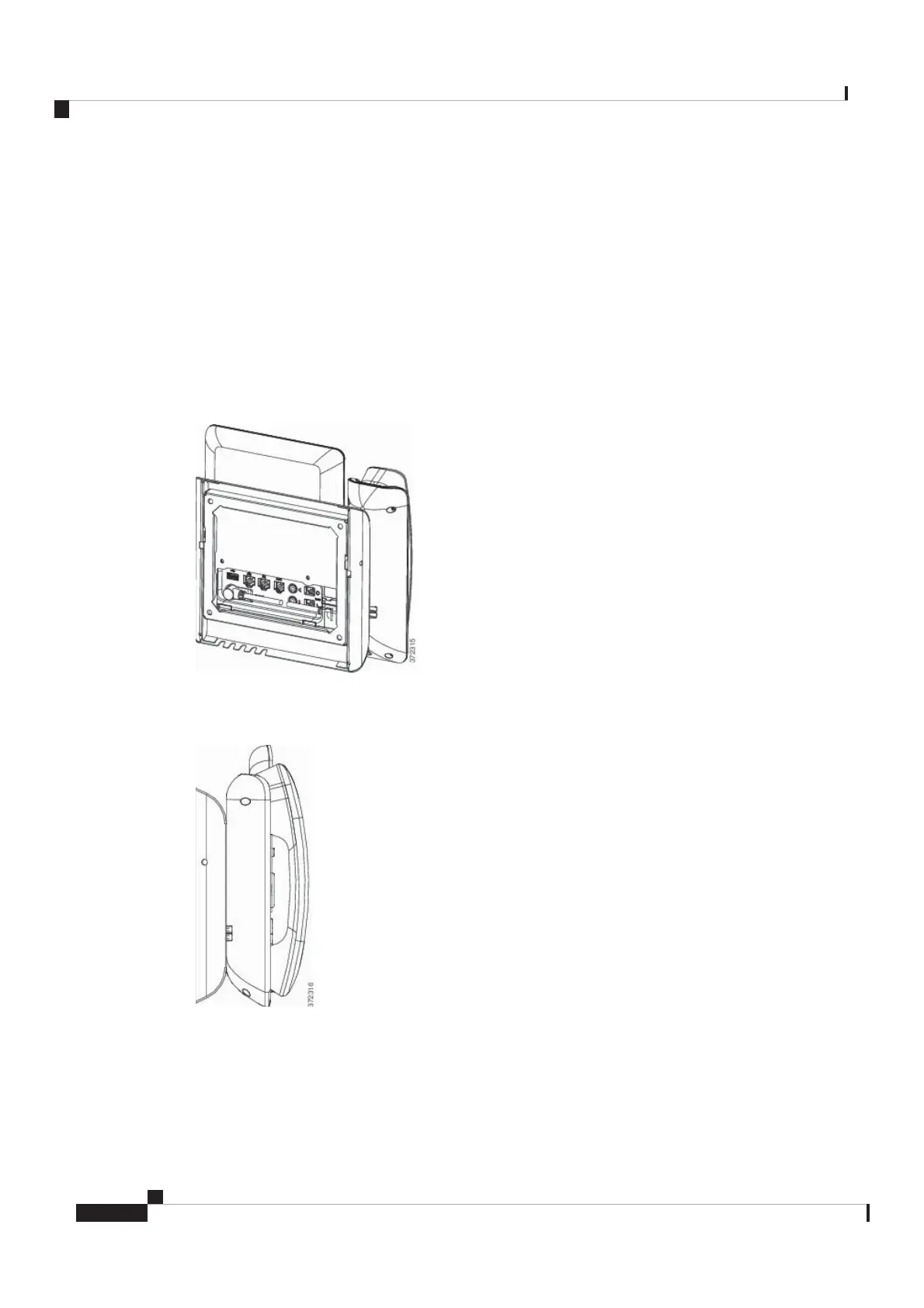

The following figure shows the wall mount kit installed on the phone.
Figure 5: Back view of Wall Mount Kit Installed on Phone
The following figure shows the phone with the wall mount kit from the side.
Figure 6: Side View of Wall Mount Kit Installed on Phone
Install the Non-Lockable Wall Mount Kit for Phone
The wall mount kit can be mounted on most surfaces, including concrete, brick, and similar hard surfaces.
To mount the kit on concrete, brick, or similar hard surfaces, you must provide the appropriate screws and
anchors for your wall surface.
Cisco Video Phone 8875 Documentation
10
Get Started
Install the Non-Lockable Wall Mount Kit for Phone
