Chapter 9 Diagnostics and Troubleshooting

Using Diagnostic Pages

Ethernet Port Page

When you click Ethernet in the Network Ports table, the browser displays the

Ethernet Port page. This page lists detailed statistics on the access point’s

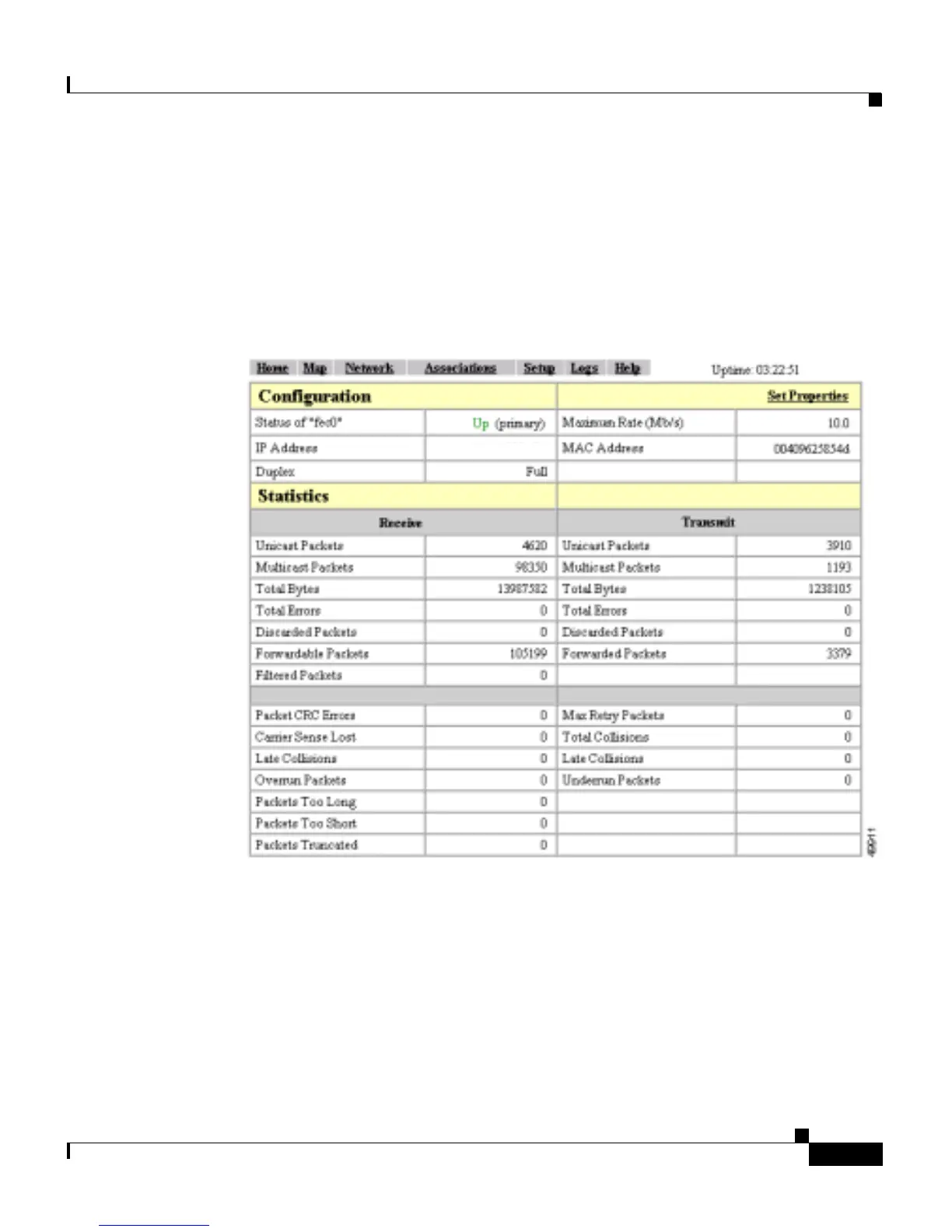

Ethernet port. Figure 9-5 shows an Ethernet Port page example.

Figure 9-5 Ethernet Port Page

Like the Network Ports page, the Ethernet Port page lists statistics in a table

divided into sections. Each row in the table is explained in the following sections.
