Cisco Aironet 1200 Series Access Point Software Configuration Guide

OL-2159-01

Chapter 3 Configuration

Routing Setup

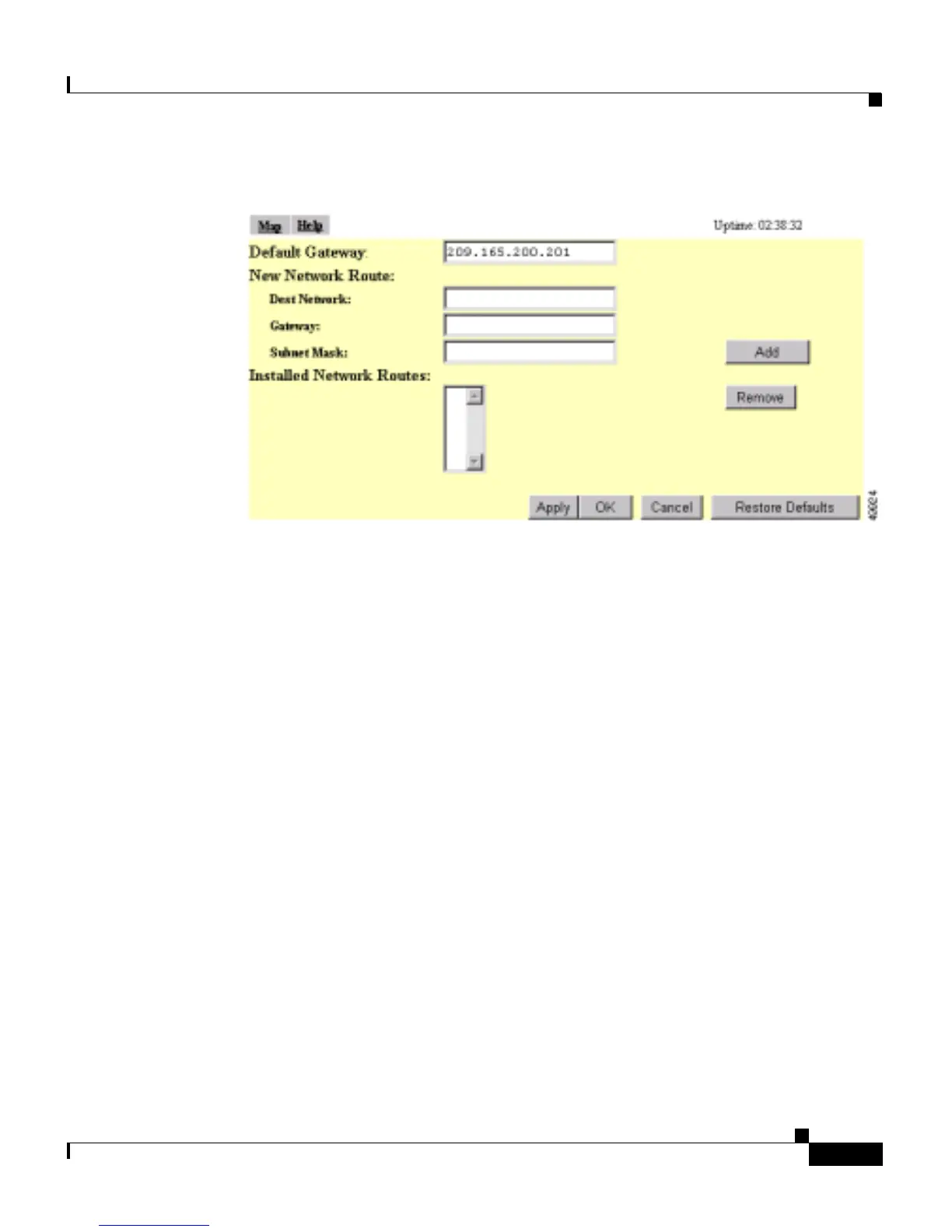

Figure 3-24 Routing Setup Page

Follow this link path to reach the Routing Setup page:

1. On the Summary Status page, click Setup.

2. On the Setup page, click Routing under Services.

Entering Routing Settings

The Routing Setup page contains the following settings:

• Default Gateway

• New Network Route Settings

• Installed Network Routes list

Default Gateway

Enter the IP address of your network’s default gateway in this entry field. The

entry 255.255.255.255 indicates no gateway.
