Chapter 7 Removing and Replacing FRUs from the Cisco ASR 1001-X Router
Removing and Replacing the Cisco ASR 1001-X Router DIMM
Removing a Cisco ASR 1001-X Router DIMM
Follow these steps to remove a Cisco ASR 1001-X Router DIMM:
Step 1 With an ESD wrist strap on, remove the power supplies from the chassis.
Note The chassis cover cannot be removed until the power supplies are removed from the chassis.
For instructions about how to remove the AC and DC power supplies from the Cisco ASR 1001-X
Router, see:
• “Removing AC Power Supplies from the Cisco ASR 1001-X Router” section on page 7-2
• “Removing DC Input Power from the Cisco ASR 1001-X Router” section on page 7-5
Step 2 After the power supplies are removed, remove the chassis top cover by performing the following steps:
a. Remove all the top surface screws on the chassis cover.
b. Remove the two side screws from the left and the right side of the chassis.
c. Using both hands, gently slide the cover slightly backward and off of the chassis.

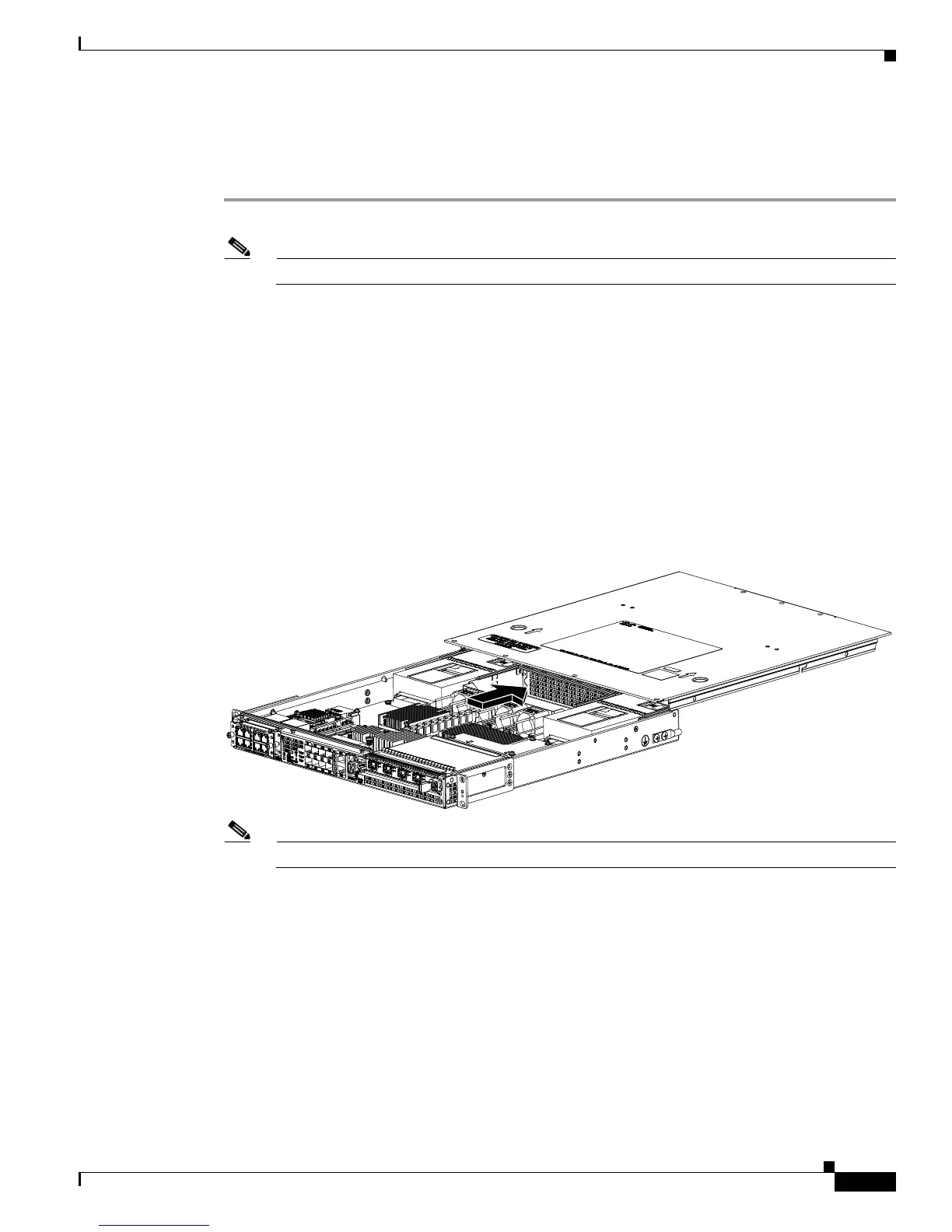

Figure 7-10 Removing the Cisco ASR 1001-X Router Cover
Note The cover will not come off the chassis if the power supplies are present in the chassis.
Step 3 Position the chassis so that you have the most comfortable access to the chassis to remove the DIMM.
Step 4 Locate the DIMMs on the Cisco ASR 1001-X Router. See Figure 7-9.
Step 5 Pull down the DIMM module spring latches to release the corresponding DIMM from the socket. See
Figure 7-11.
371137

Cisco ASR 1001-X Specifications

General

Product color	Gray
Rack capacity	1U
Rack mounting	Yes
Networking standards	-
Ethernet LAN (RJ-45) ports	6
Installed SFP modules quantity	2
Flash memory	1024 MB
Internal memory	8192 MB
Processor cores	4
AC input voltage	85 - 264 V
Power source type	AC
Power consumption (typical)	250 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	AES

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	10590 g
