Cisco ASR 1001-X Installation Guide

1-5
Cisco ASR 1001-X Router Hardware Installation Guide
OL-32376-02
Chapter 1 Cisco ASR 1001-X Router Overview
Field-Replaceable Units for the Cisco ASR 1001-X Router
Cisco ASR 1001-X SPA GE and TE Ports
The 10 GE SFP+ ports are indicated in the front bezel with orange highlights, and the GE SFP ports are
indicated with yellow highlights. Figure 1-5 shows the port numbering for the 10 GE SFP+ and GE SFP
ports.

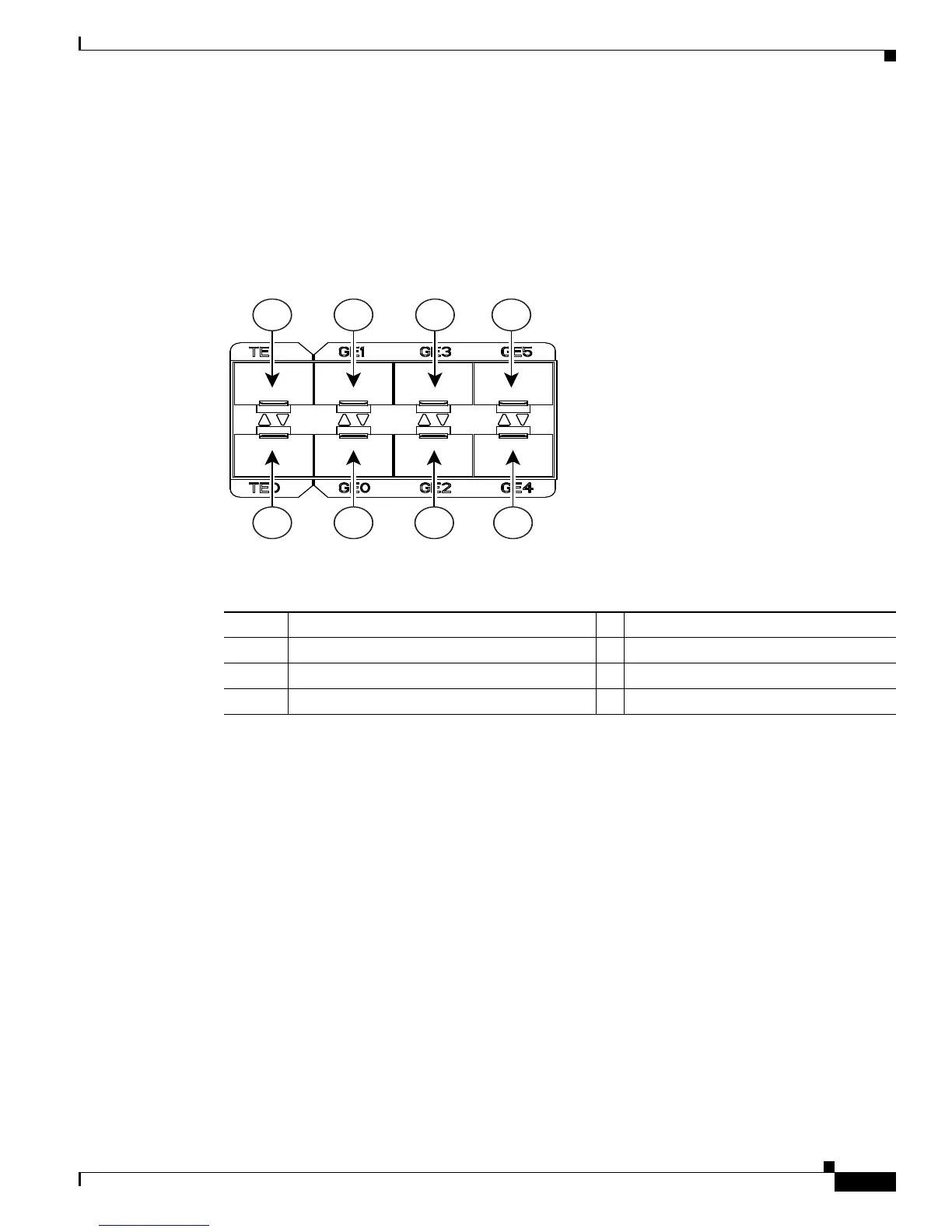

Figure 1-5 10 GE SFP+ and GE SFP Port Numbering
Field-Replaceable Units for the Cisco ASR 1001-X Router
The Cisco ASR 1001-X Router has a number of FRUs. These include:
• SPAs
• Dual In-line Memory Modules (DIMMs)
• NIMs
• SSD and SSD NIM assembly
• USB flash or secure token memory stick
• AC and DC power supplies
For more information, see “Removing and Replacing FRUs from the Cisco ASR 1001-X Router”.
2 4 6 8
1 3 5 7
371320
1 10 GE SFP+ Port 0/0/0 5 GE SFP Port 0/0/2
2 10 GE SFP+ Port 0/0/1 6 GE SFP Port 0/0/3
3 GE SFP Port 0/0/0 7 GE SFP Port 0/0/4
4 GE SFP Port 0/0/1 8 GE SFP Port 0/0/5

Cisco ASR 1001-X Specifications

General

Product color	Gray
Rack capacity	1U
Rack mounting	Yes
Networking standards	-
Ethernet LAN (RJ-45) ports	6
Installed SFP modules quantity	2
Flash memory	1024 MB
Internal memory	8192 MB
Processor cores	4
AC input voltage	85 - 264 V
Power source type	AC
Power consumption (typical)	250 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 90 %
Security algorithms	AES

Weight and Dimensions

Depth	461.5 mm
Width	439.42 mm
Height	43.43 mm
Weight	10590 g
