Cisco ASR 9000 Series Hardware Installation Guide

Cisco ASR 9000 SIP-700 Overview
There are two types of Cisco ASR 9000 SIP-700 available; A9K-SIP-700 and A9K-SIP-700-8G.
• A9K-SIP-700 supports 4 GB of memory.
• A9K-SIP-700-8G supports 8 GB of memory.
Both types of Cisco ASR 9000 SIP-700 are identical in appearance and can be identified by the PID located
on the faceplate of the SIP
The following sections describe the Cisco ASR 9000 SIP-700:
Cisco ASR 9000 SIP-700 Board Components
The main Cisco ASR 9000 SIP-700 board components are shown in the figure below.

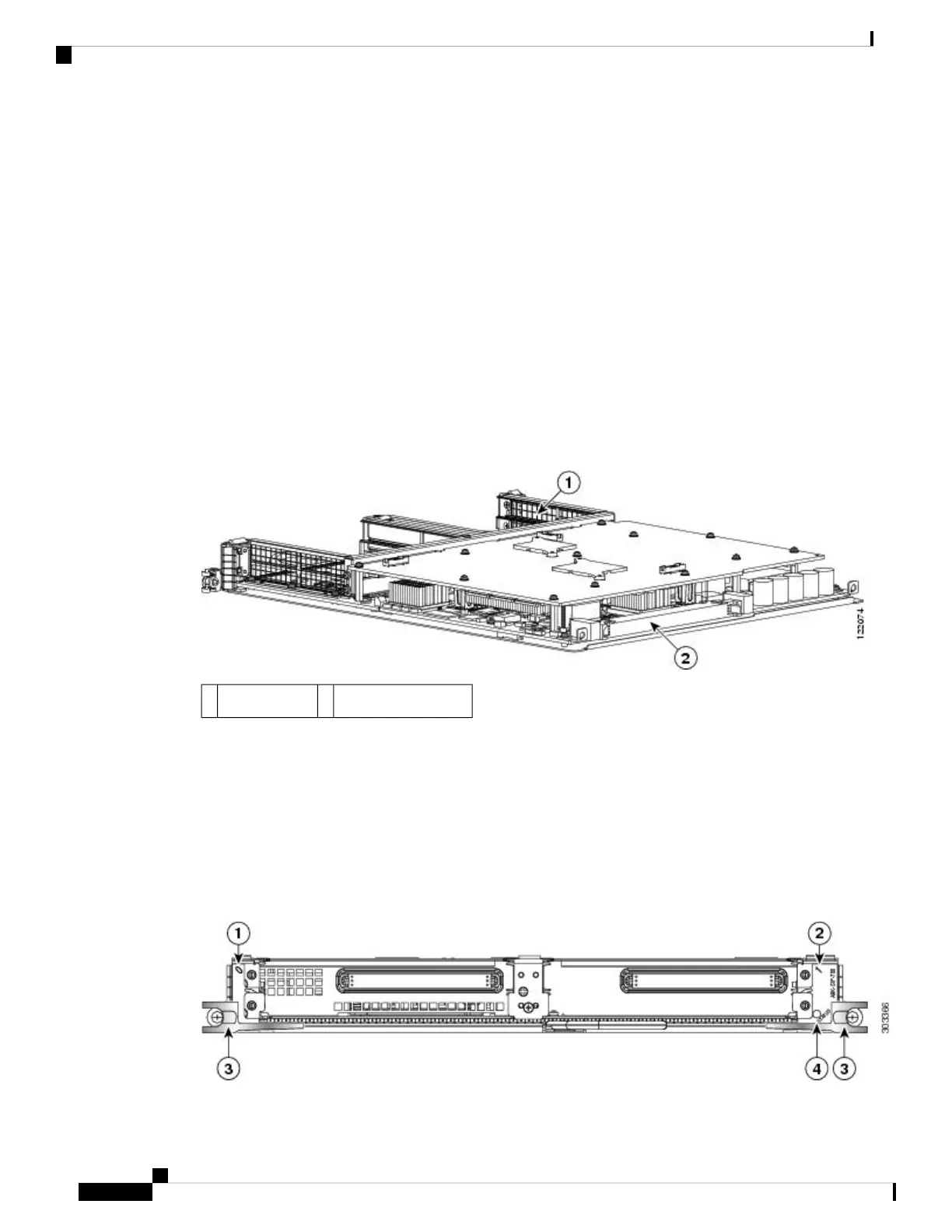

Figure 1: Cisco ASR 9000 SIP-700 Board—Rear View
Backplane connector2SPA enclosure1
Cisco ASR 9000 SIP-700 LED
The Cisco ASR 9000 SIP-700 supports a maximum of 2 single-width, double-height SPAs, 4 single-width,
single-height SPAs, 2 double-width, single-height SPAs, or 1 double-width, double-height SPA. Combinations
are also supported, for example 2 single-width, single-height SPAs and 1 double-width, single-height SPA.
The Cisco ASR 9000 SIP-700 faceplate has one Status LED. The following figure shows the Cisco ASR 9000
SIP-700 faceplate with 2 double-width, single-height SPAs.
Figure 2: Cisco ASR 9000 SIP-700 Faceplate
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
4
Overview: Cisco ASR 9000 Series Router SPA Interface Processors
Cisco ASR 9000 SIP-700 Overview
