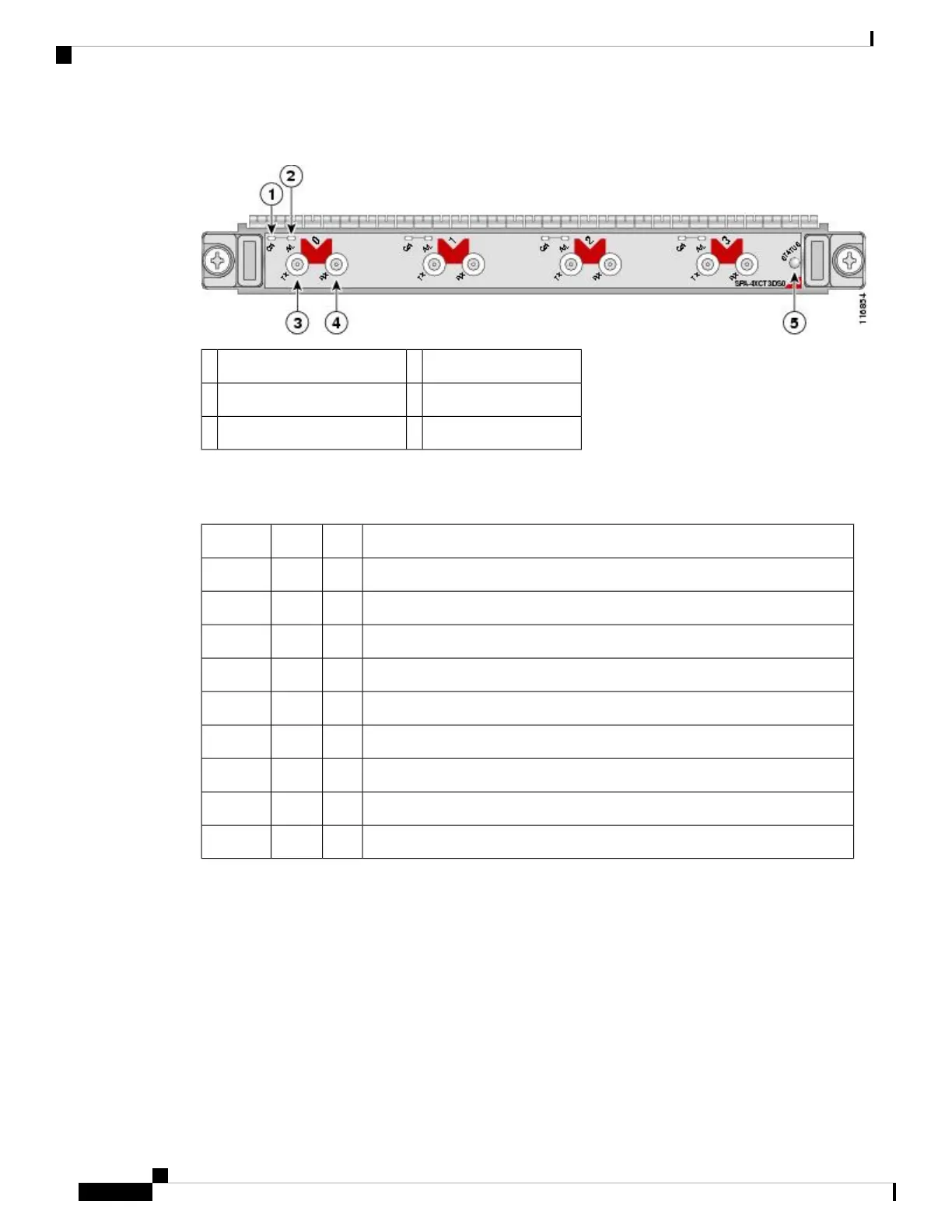

Figure 22: 4-Port Channelized T3 to DS0 Faceplate
RX (Receive) connector4C/A (Carrier/Alarm) LED1
STATUS LED5A/L (Active Loopback) LED2
TX (Transmit) connector3
The 4-Port Channelized T3 to DS0 LEDs are described in the following table.
Table 21: 4-Port Channelized T3 to DS0 LEDs
MeaningStateColorLED Label
Port is not enabled by software.OffOffC/A
Port is enabled by software, and there is a valid T3 signal without any alarms.OnGreen
Port is enabled by software, and there is at least one alarm.OnAmber
Port is not enabled by software.OffOffA/L
Port is enabled by software, loopback is off.OnGreen
Port is enabled by software, loopback is on.OnAmber
SPA power is off.OffOffSTATUS
SPA is ready and operational.OnGreen
SPA power is on and good, and SPA is being configured.OnAmber
4-Port Channelized T3 to DS0 Interface Specifications
The framer processes incoming and outgoing T3 frames (cbit, m13/m23, and unframe). The framer operates
at T3 line rates (44.2 Mbps).
Packet data is transported with a user-configurable encapsulation (such as Point-to-Point Protocol [PPP] or
High-Level Data Link Control [HDLC]), and is mapped to T3 frames. The encapsulations add transport
overhead to the packet of data frames before transporting, and are stripped when a packet is transported to
the far end.
The 4-Port Channelized T3 to DS0 interface is compliant with ANSI and Telco standards. The interface also
provides support for Management Information Base (MIB) RFC 2495, RFC 2496, and T1.231.
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
32
Overview: Cisco ASR 9000 Series Router Shared Port Adapters
4-Port Channelized T3 to DS0 Interface Specifications
