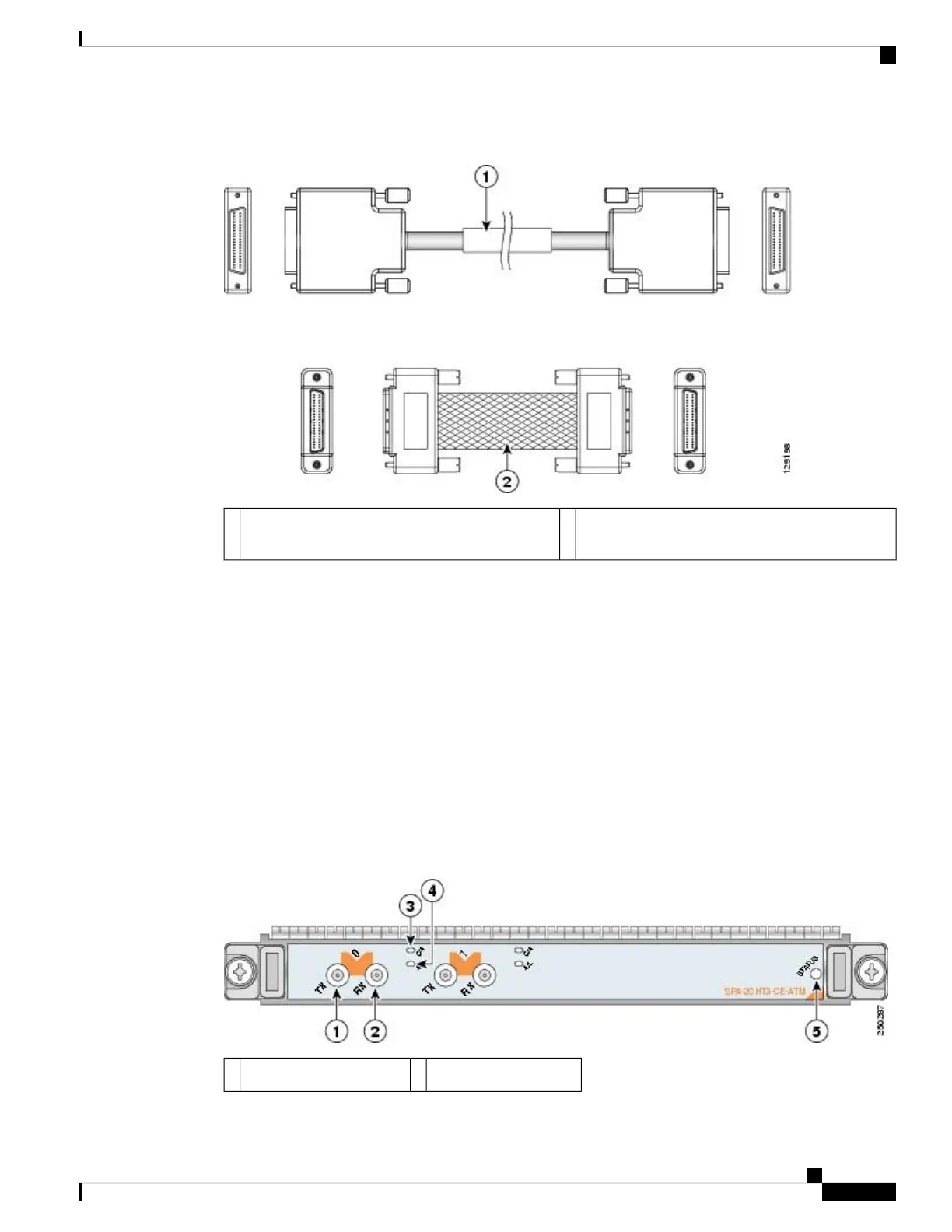

Figure 49: SPA Mate Cables
Short length RPR mate cable for single port RPR
SPAs (CAB-RPR-OC192-S)
2Long length RPR mate cable for single port RPR
SPAs (CBL-RPR-OC192-L)
1
2-Port Channelized T3/E3 ATM CEoP SPA Overview
The following sections describe the 2-Port Channelized T3/E3 ATM CEoP SPA:
• 2-Port Channelized T3/E3 ATM CEoP SPA LEDs, on page 59
• 2-Port Channelized T3/E3 ATM CEoP SPA Interface Specifications, on page 60
• 2-Port Channelized T3/E3 ATM CEoP SPA Cables and Connectors, on page 60
2-Port Channelized T3/E3 ATM CEoP SPA LEDs
The 2-Port Channelized T3/E3 ATM CEoP SPA has three types of LEDs (see the following figure). There
are two LEDs for each port on the SPA, and a single STATUS LED for the SPA.
Figure 50: 2-Port Channelized T3/E3 ATM CEoP SPA Faceplate
A/L (Active/Loopback)4TX (Transmit) connector1
Cisco ASR 9000 Series Aggregation Services Router SIP and SPA Hardware Installation Guide
59
Overview: Cisco ASR 9000 Series Router Shared Port Adapters
2-Port Channelized T3/E3 ATM CEoP SPA Overview
