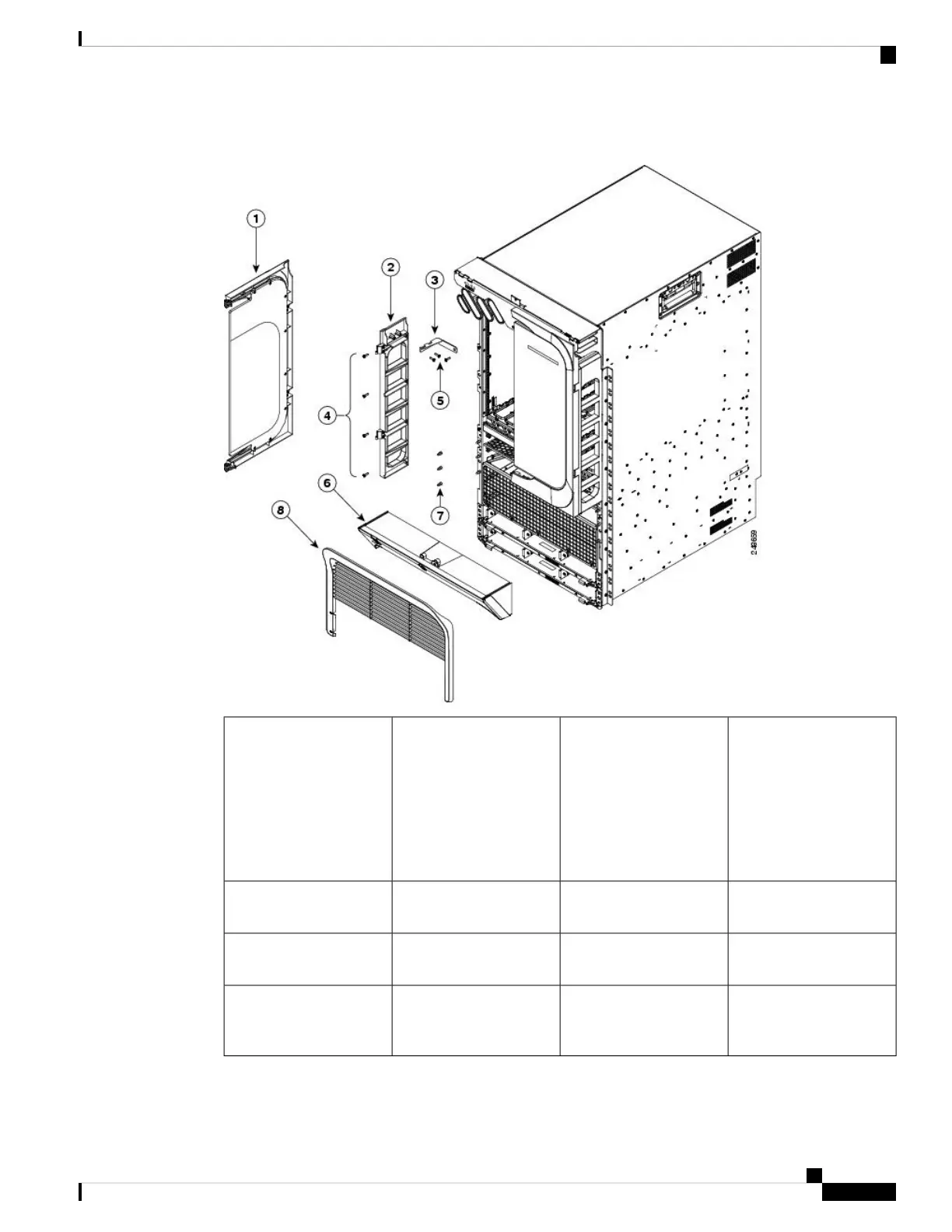

Figure 137: Optional Chassis Accessories for the Cisco ASR 9010 Router
Screws for attaching the
L-shaped bracket to the
hinge bracket (one screw
is removed and re-inserted
to attach the L-shaped
bracket to the cable
management tray and
chassis)
5Door (one per side)1
Mid-cover with door lock6Hinge bracket (one per
side)
2
Balls studs (three per side)7L-shaped bracket (one per
side)
3
Front grill8Four screws for attaching
each hinge bracket (eight
screws total)
4
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
129
Unpacking and Installing the Chassis
Installing Optional Chassis Accessories on the Cisco ASR 9010 Router
