The DC power trays and power modules for the Cisco ASR 9000 Series Routers are identical, so the examples
shown in the below figures apply to all of these routers.
Note
To avoid shock hazard, be sure to apply shrink wrap tubing around the wire entry area of the lug.
Warning

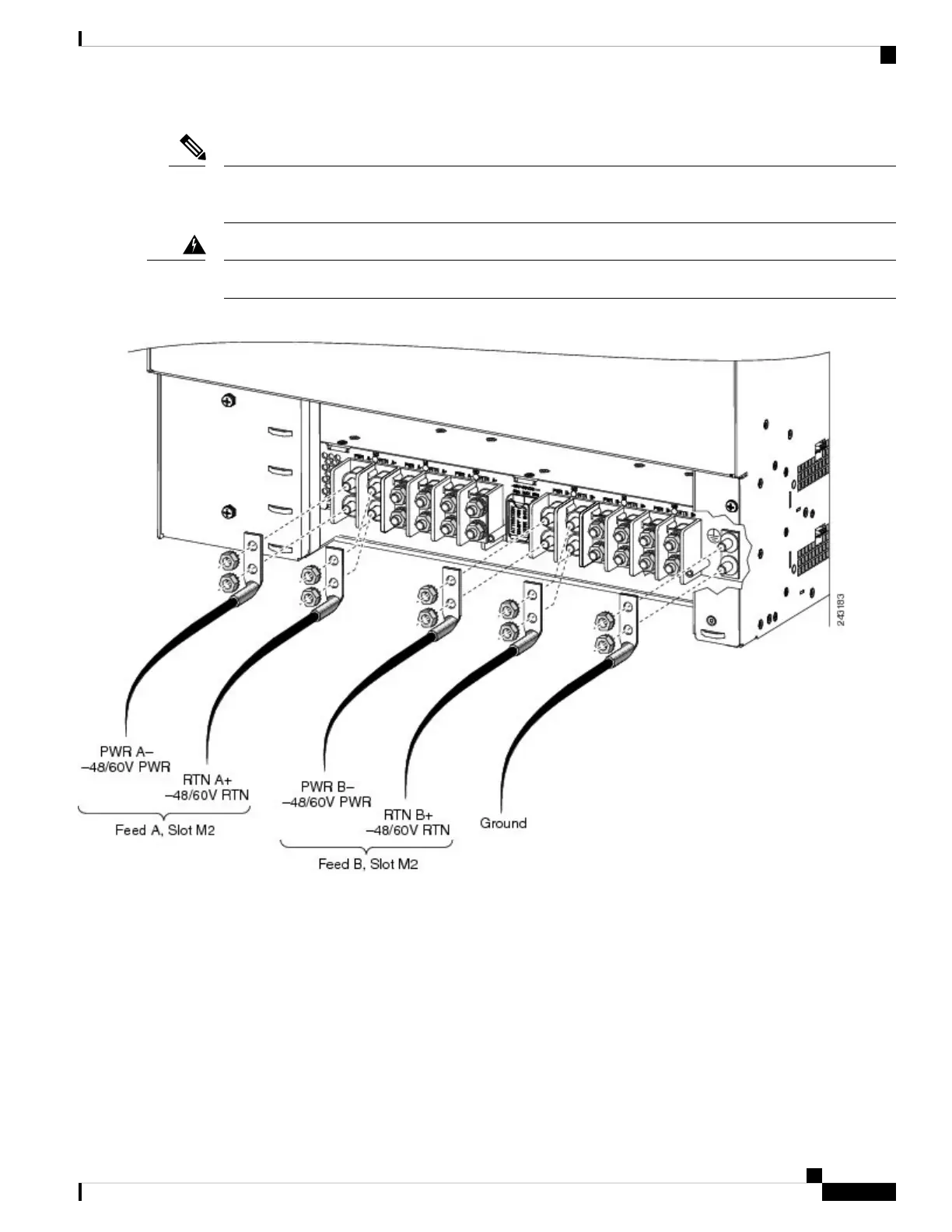

Figure 51: Typical Source DC Power Cabling Scheme for a Single DC Power Module—Version 1 Power System
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
41
Preparing for Installation
DC-Powered Router

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
