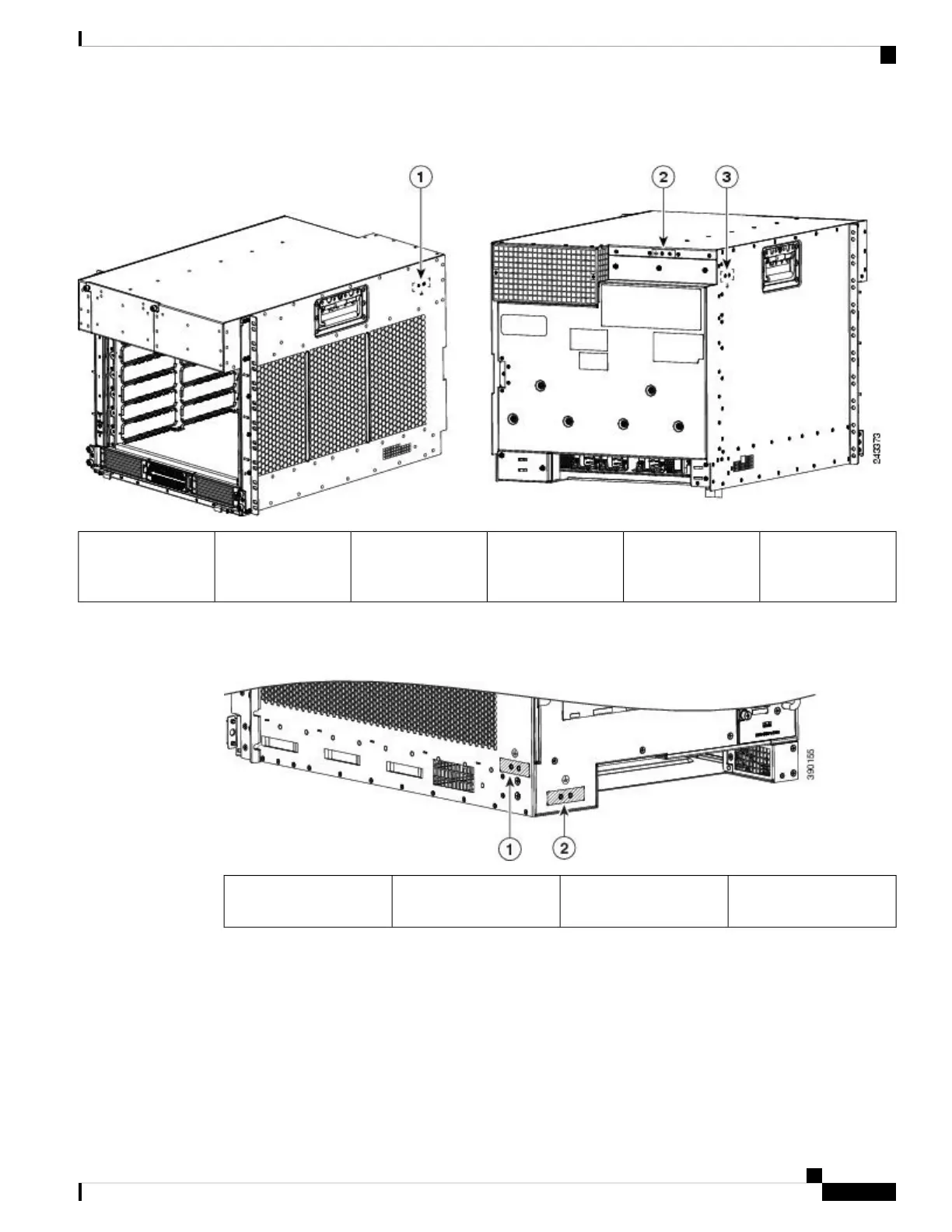

Figure 56: NEBS Bonding and Grounding Point on the Cisco ASR 9006 Router Chassis
NEBS grounding
point on left side of
the chassis
3NEBS grounding
point on rear of the
chassis
2NEBS grounding
point on right side of
chassis
1
Figure 57: NEBS Bonding and Grounding Point on the Cisco ASR 9904 Router Chassis
NEBS grounding point on
rear of the chassis
2NEBS grounding point on
right side of chassis
1
Cisco ASR 9000 Series Aggregation Services Router Hardware Installation Guide
45
Preparing for Installation
NEBS Supplemental Unit Bonding and Grounding Guidelines

Cisco ASR 9010 Specifications

General

Chassis	Modular
Rack Units	21 RU
Operating System	Cisco IOS XR
Form Factor	Rack-mountable
Number of Slots	10
Power Supply	AC or DC
Redundancy	Yes
Slots	8 line card slots, 2 route switch processor slots
Memory	16 GB DRAM
Storage	64 GB SSD (Route Processor)
Port Types	Ethernet, OTN
Redundancy Features	Route Processor, Power Supply, Fan Tray
Operating Temperature	32 to 104°F (0 to 40°C)
Humidity	5% to 90% non-condensing
Route Processor	Cisco ASR 9000 Series Route Switch Processor
