Catalyst 6500 Series Switch and Cisco 7600 Series Router Firewall Services Module Configuration Guide
OL-6392-01
Chapter 15 Using Failover
Understanding Failover
The path that the traffic takes after failover depends on which device fails as follows:
• FWSM failure only—If the primary FWSM fails, then the secondary FWSM becomes active.
However, if the primary switch is still active, all VLAN traffic destined for the FWSM continues to
enter the primary switch. The secondary (now active) FWSM receives and sends all traffic over the
trunk (Figure 15-3).

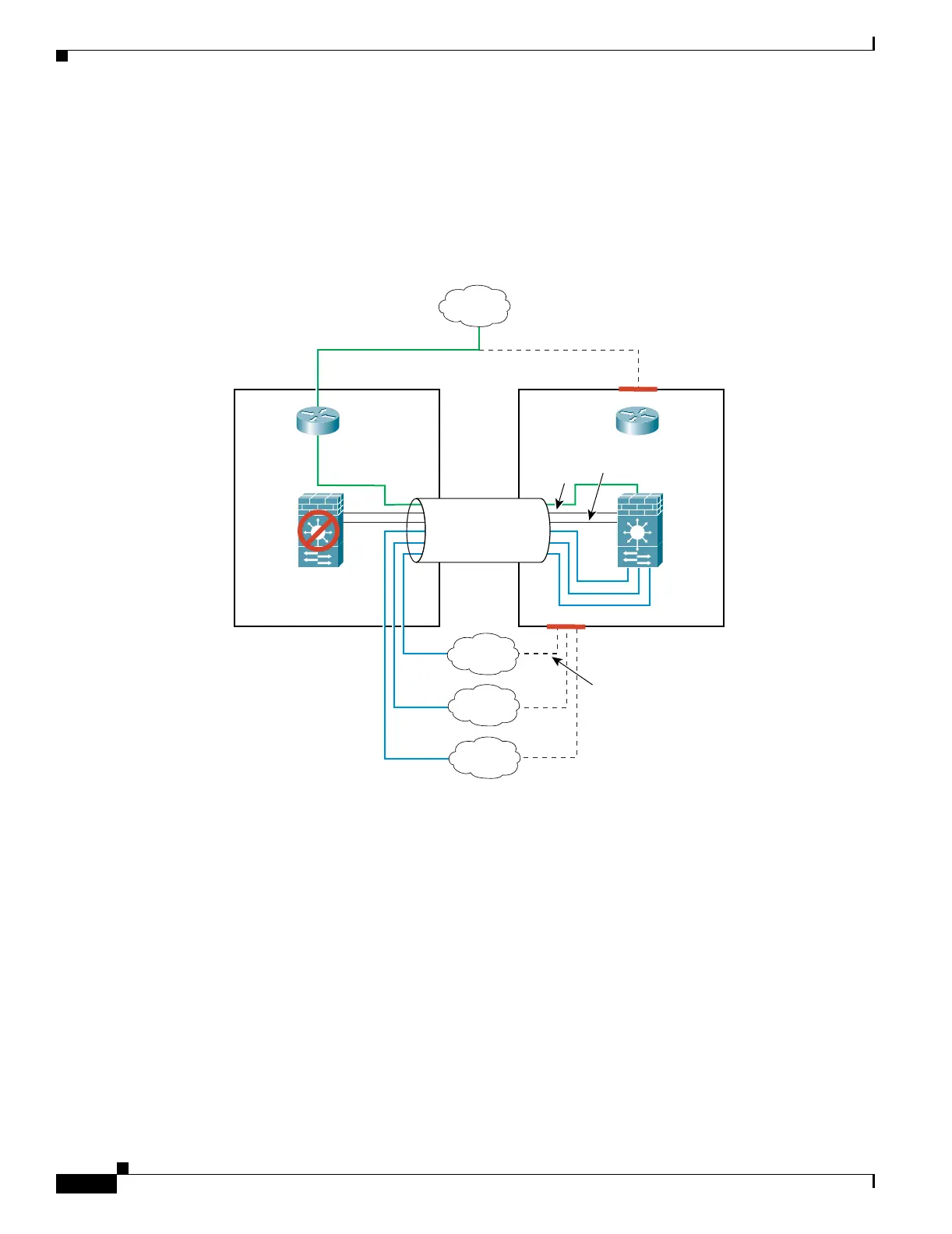

Figure 15-3 FWSM Failure Only
Standby
FWSM
VLAN 200
Failover Links:
VLAN 100
VLAN 201
Mktg
Inside
Eng
Active Switch
Active
FWSM
Standby Switch
Trunk:
VLANs 200, 201,
202, 203, 10, 11
Internet
VLAN 202
VLAN 11
VLAN 10
VLAN 203
104651
