Do not press down too forcefully on the levers because they will bend and get damaged.Note

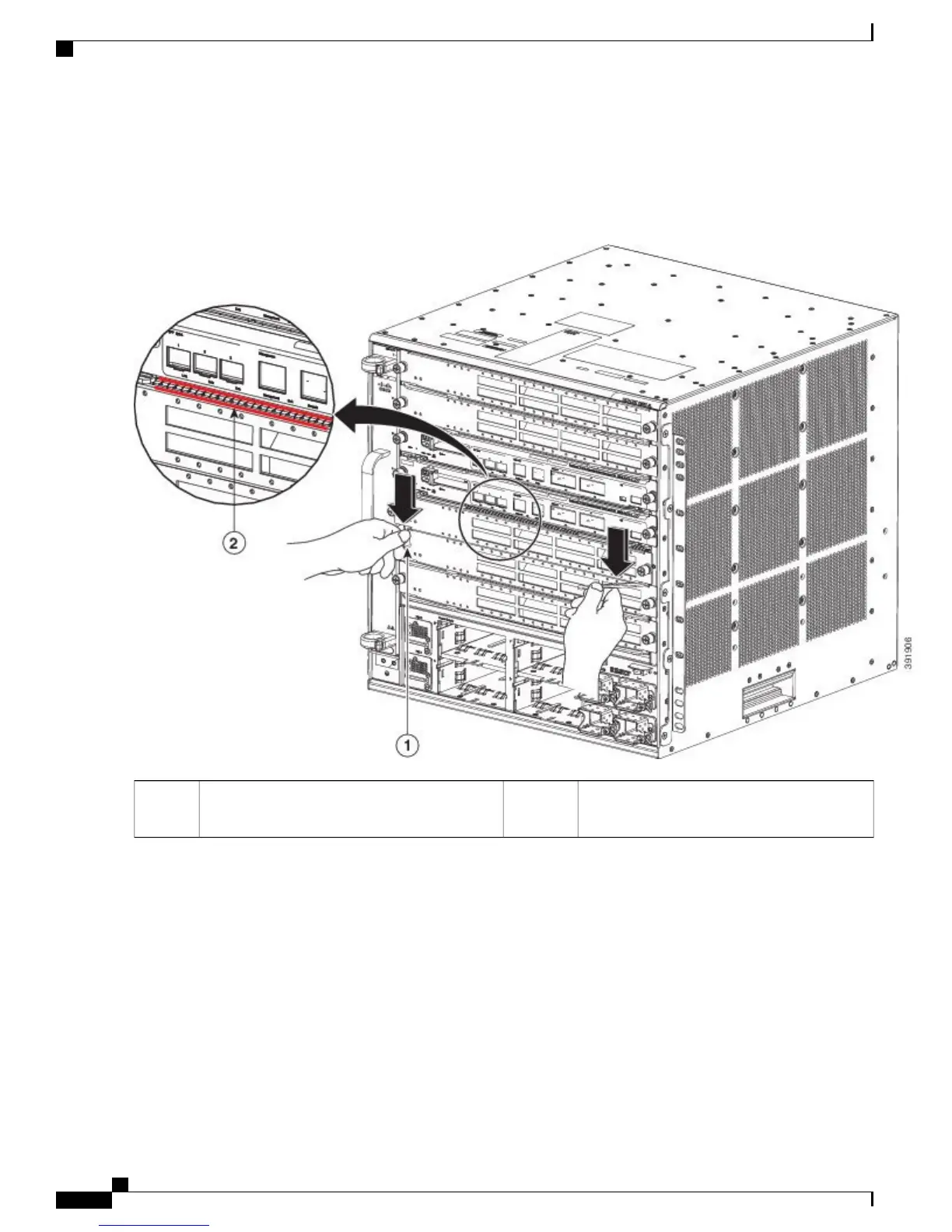

Figure 10: Clearing the EMI Gasket in the Chassis Slot
1 mm gap between the module EMI gasket and
the module above it.
2Gently press down and simultaneously close the
left and right ejector levers to seat the module.
1
Step 8
While gently pressing down, simultaneously close the left and right ejector levers to fully seat the module in the backplane
connector. The ejector levers are fully closed when they are flush with the module faceplate.
Failure to fully seat the module in the backplane connector can result in error messages.
Catalyst 6800 Ethernet Module Installation Guide
28
Installing and Removing Modules, Transceivers, and Attaching Cables
Installing an Ethernet Switching Module
