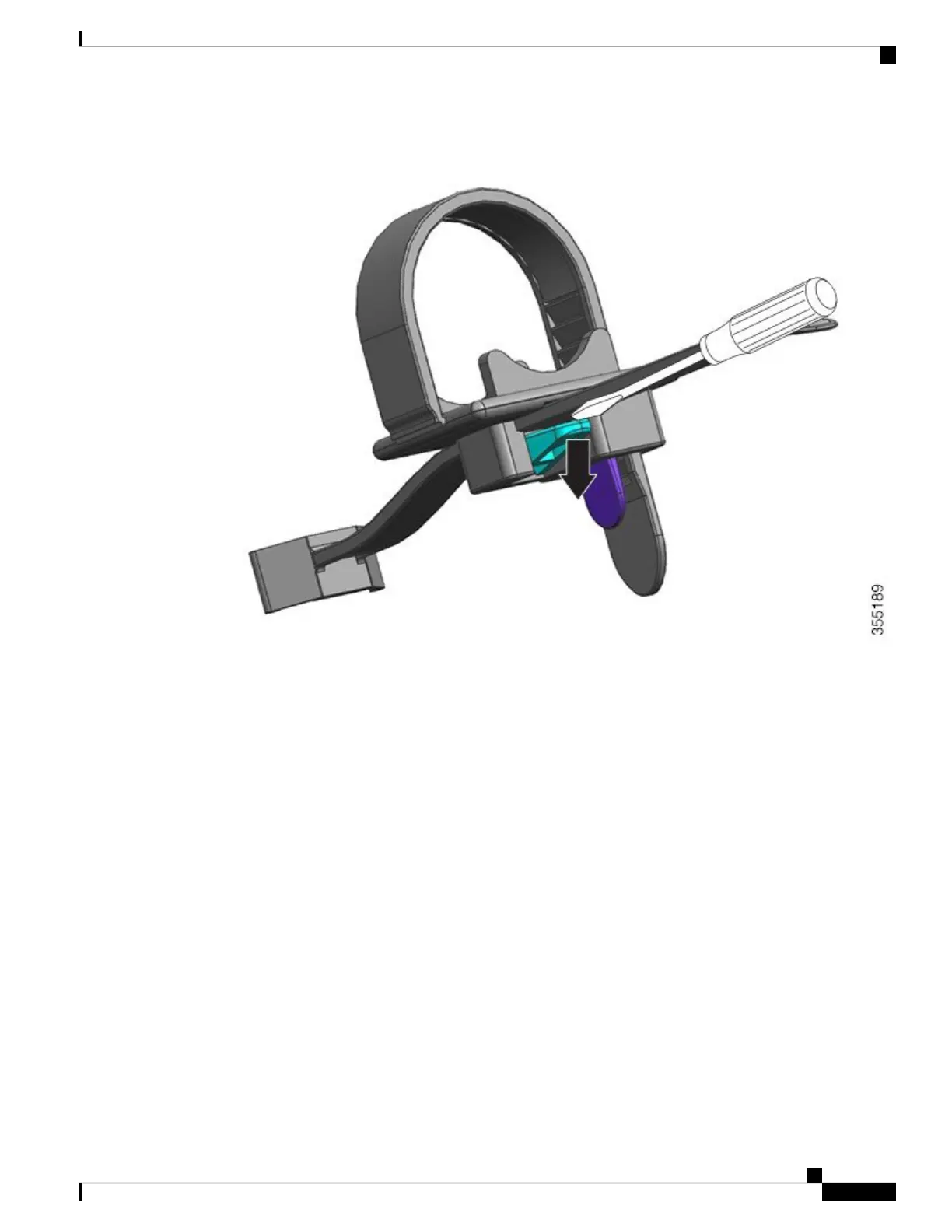

Figure 32: Clamp Latch - Detail
Inserting and Tightening the Retainer Strip
The flexible retainer strip inserts into the clamp hole and should be tightened around the power cord.
To loosen or remove the flexible retainer strip, position a flathead screwdriver or similar device between the
flexible retainer strip and the retainer strip latch and push the latch away from the flexible retainer strip .
Cisco Catalyst 9400 Series Switches Hardware Installation Guide
101
Removing and Replacing FRUs
Power Cord Retainer Mechanism
