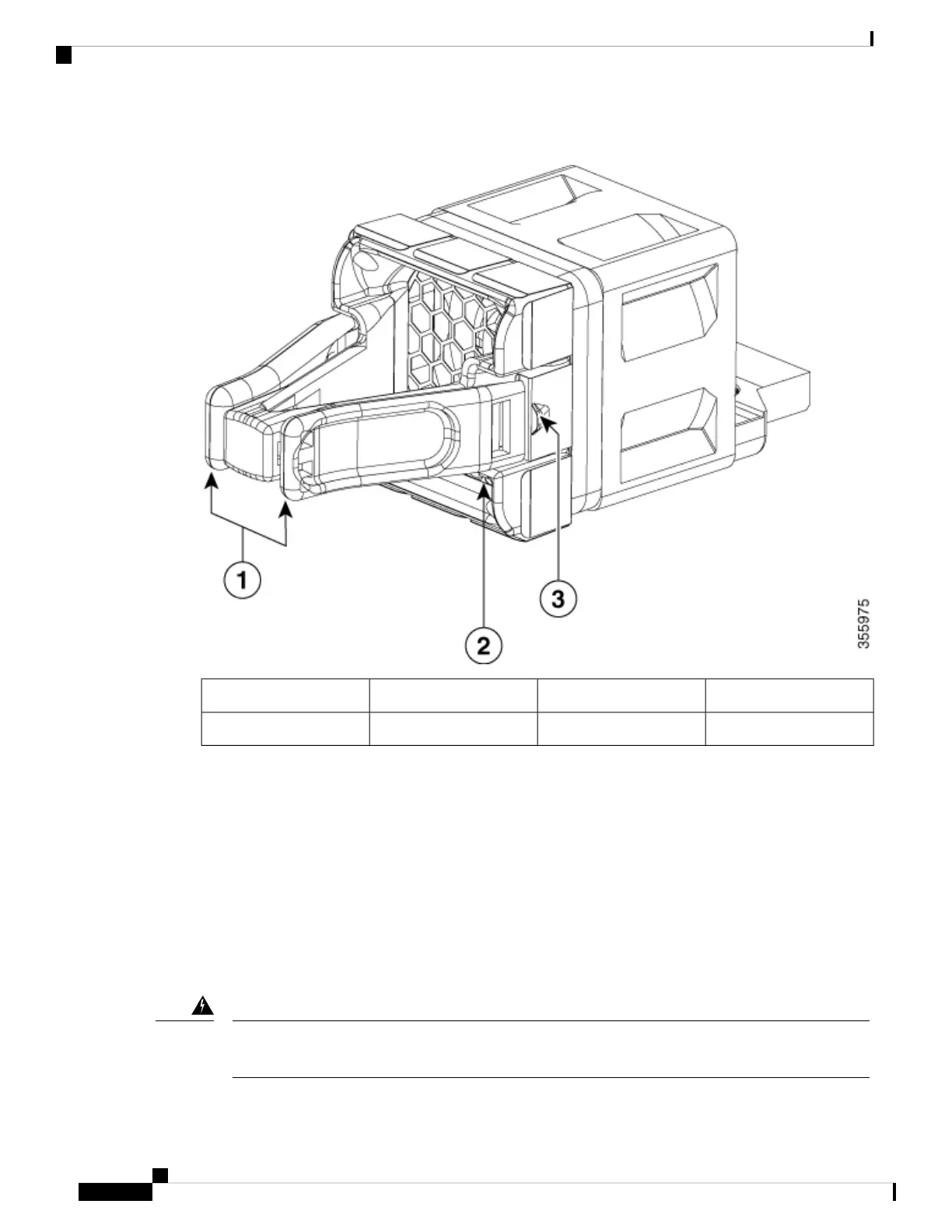

Figure 62: Fan Module
Retainer clip3Extraction handles1
Fan LED2
Installation Guidelines
Observe these guidelines when removing or installing a fan module:
• Do not force the fan module into the slot. This can damage the pins on the switch if they are not aligned
with the module.
• A fan module that is only partially connected to the switch can disrupt the system operation.
• The switch supports hot swapping of the fan module. You can remove and replace the module without
interrupting normal switch operation.
Only trained and qualified personnel should be allowed to install, replace, or service this equipment.
Statement 1030
Warning
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
96
Installing a Fan Module
Installation Guidelines
To Next Page
