Number-12 or number-10 Phillips machine
screws
4Cable guide2
Installing the Switch on a Table or Shelf
Procedure
Step 1 To install the switch on a table or shelf, locate the adhesive strip with the rubber feet in the mounting-kit
envelope.
Step 2 Attach the four rubber feet to the four circular etches on the bottom of the chassis.

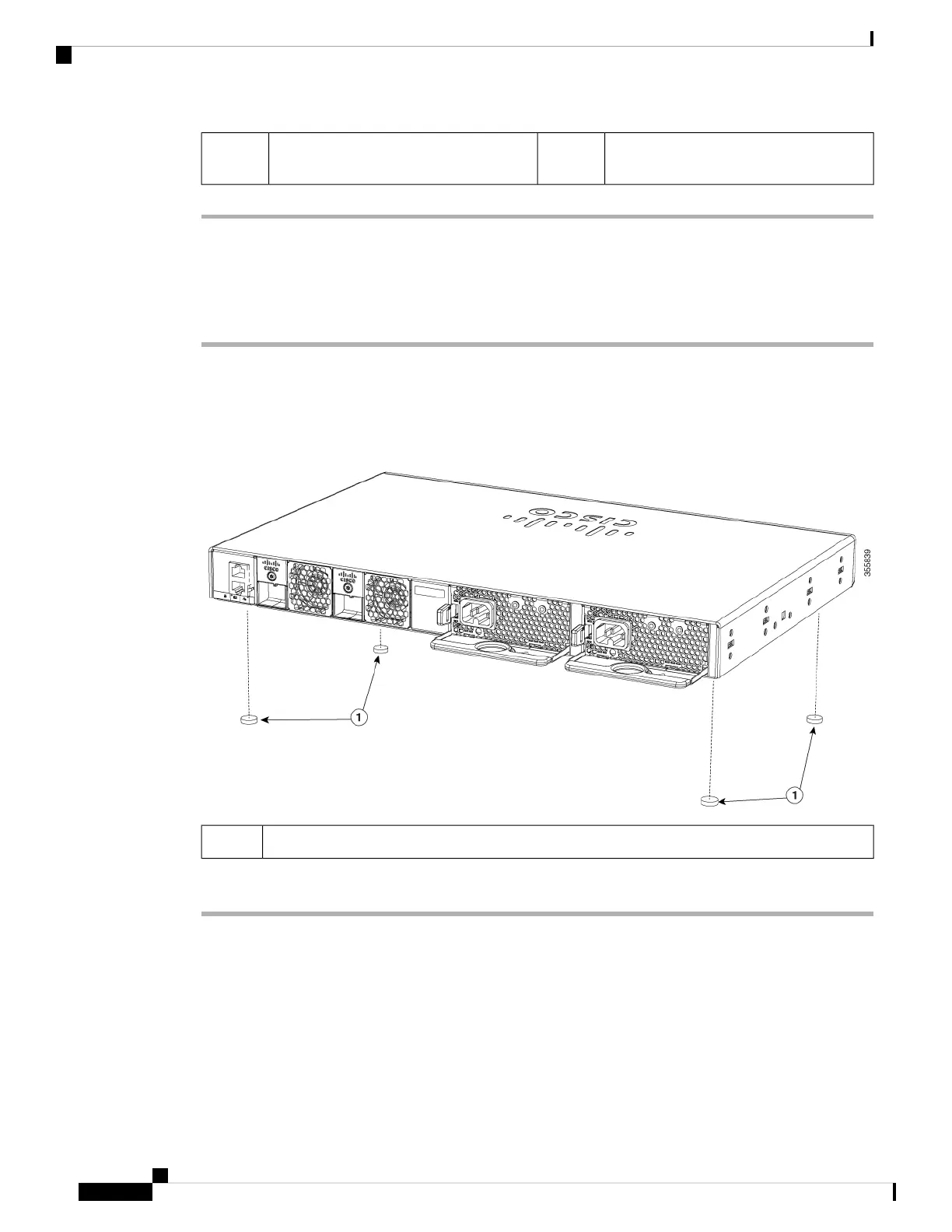

Figure 19: Attaching the mounting feet for Table-Mounting or Shelf-Mounting
Rubber mounting feet1
Step 3 Place the switch on the table or shelf near an AC power source.
What to do next
When you complete the switch installation, see After Switch Installation, on page 43 for information on
switch configuration.
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
42
Installing the Switch
Installing the Switch on a Table or Shelf
