DescriptionNetwork Module
This module has two 40G slots with a QSFP+ connector in each slot.
This module is supported only on C9200 Multigigabit Ethernet switches.
C9200-NM-2Q
Insert this blank module when the switch has no uplink ports to enable
sufficient airflow.
C9200-NM-BLANK
For information about installing a network module, see Installing a Network Module, on page 78.
Note
Internal Power Supply
All the compact switches except C9200CX-12T-2X2G are powered through internal power supplies. The
internal power supply is an autoranging unit that supports input voltages between 100 and 240 VAC (max of
90V to 264V). The AC frequency range of the power supply is 50Hz/60Hz. Plug the AC power cord into the
AC power connector and into an AC power outlet.
Table 4: Available PoE with AC Power Supply
Available PoEDefault Power SupplyModels
240W315W InternalC9200CX-12P-2X2G
240W315W InternalC9200CX-8P-2X2G
Rear Panel
The switch rear panel includes StackWise connectors, fan modules, and power supply modules.

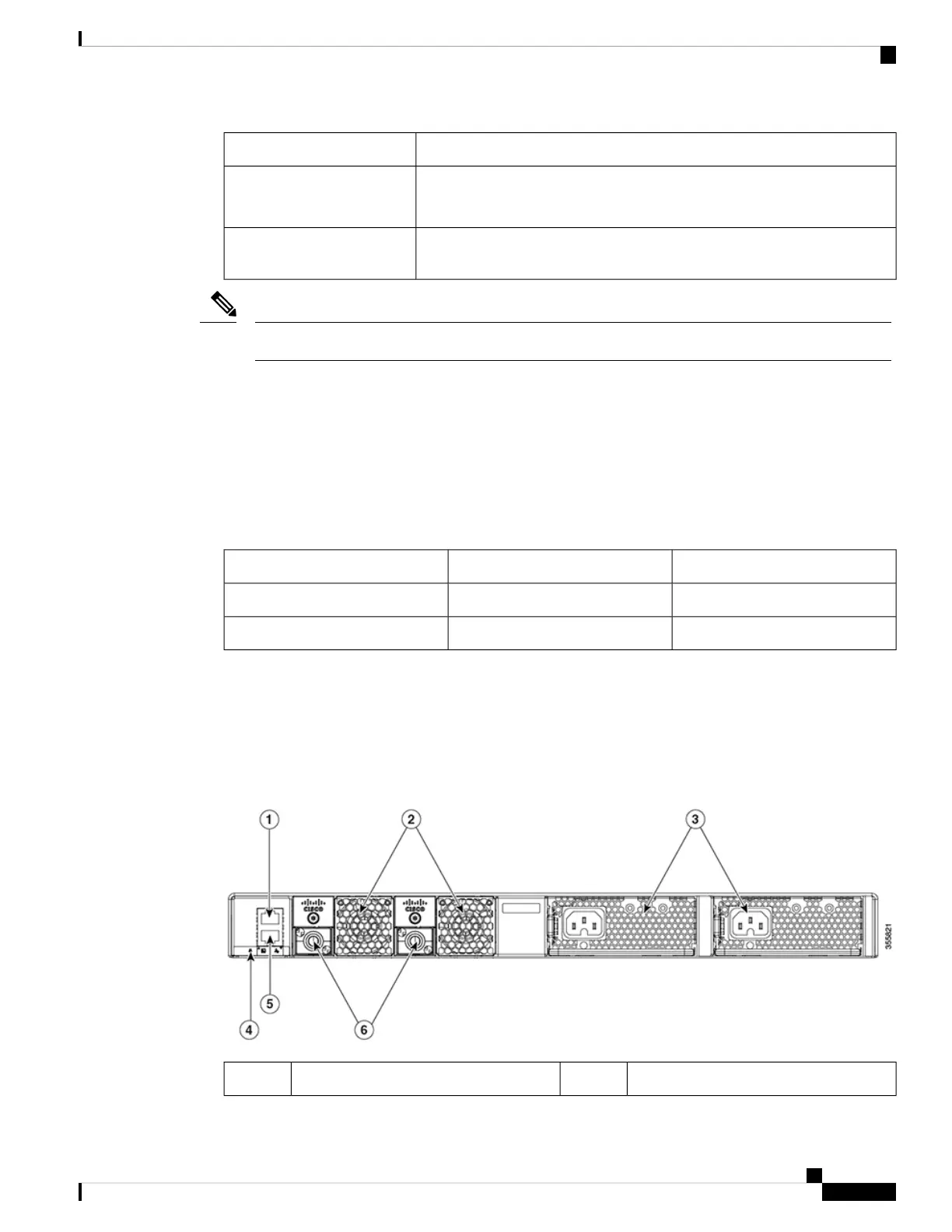

Figure 4: Rear Panel of a C9200L Switch
Blue Beacon LED4RJ-45 console port1
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
9
Product Overview
Internal Power Supply
