For information about installing an (uplink) transceiver module, see Installing a Cisco Pluggable
Transceiver Module, on page 83.
Note

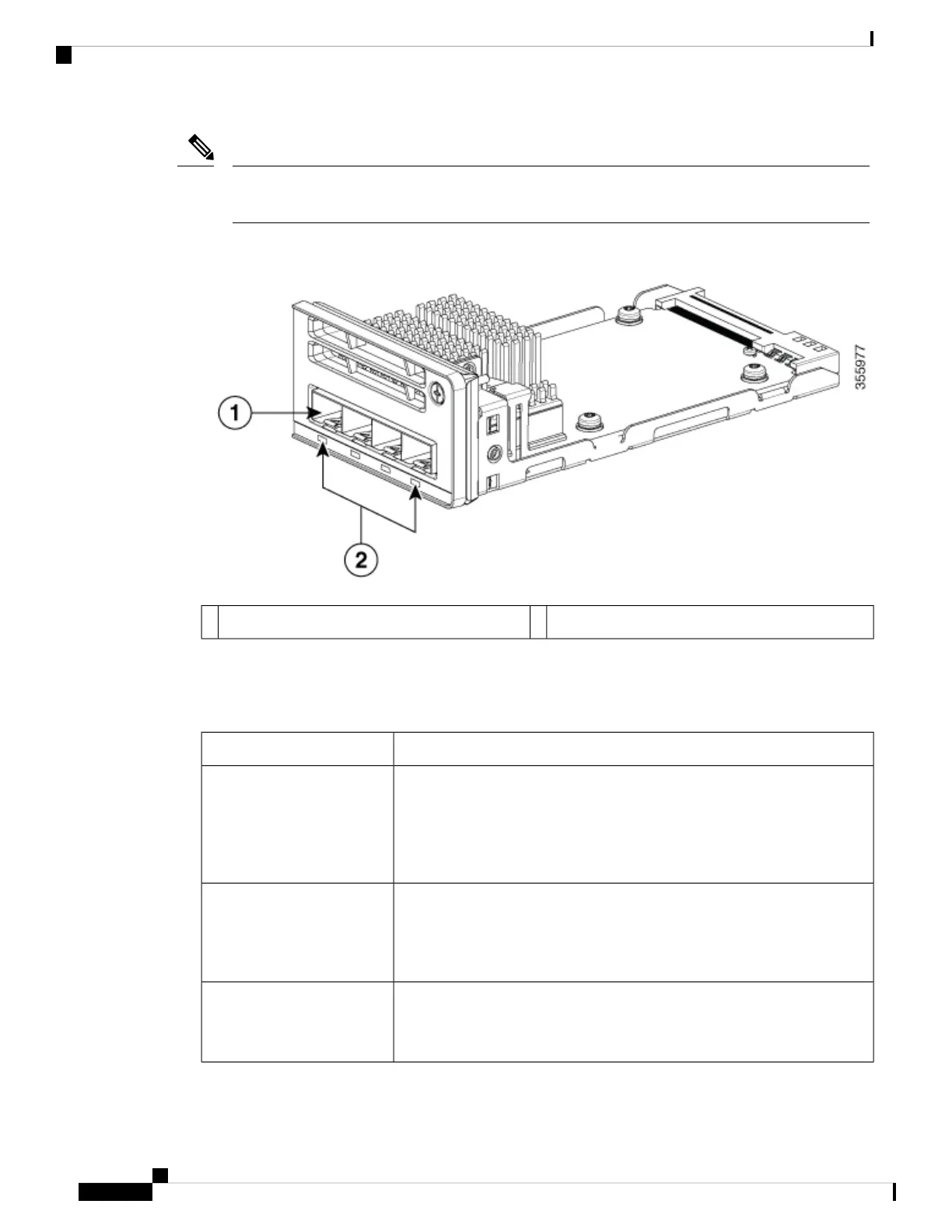

Figure 3: Network Module C9200-NM-4G
LEDs2Module slot1
The following table lists the optional Cisco Catalyst 9200 Series Switches uplink network modules with 4x1G,
4x10G, 2x25G, and 2x40G slots.
Table 3: Supported Network Modules
DescriptionNetwork Module
This module has four 1G SFP module slots. Any combination of standard
SFP modules is supported. SFP+ modules are not supported.
If you insert an SFP+ module in the 1G network module, the SFP+ module
does not operate, and the switch logs an error message. This module is not
supported on C9200 Multigigabit Ethernet switches.
C9200-NM-4G
This module has four 10G SFP module slots. Each port supports a 1G or 10G
connection. Any combination of standard SFP modules is supported.
This module is supported on both 1G and Multigigabit Ethernet switch models
of C9200 switches.
C9200-NM-4X
This module has two 25 Gigabit Ethernet SFP28 module slots. Any
combination of SFP, SFP+, and SFP28 modules are supported.
This module is supported only on C9200 Multigigabit Ethernet switches.
C9200-NM-2Y
Cisco Catalyst 9200 Series Switches Hardware Installation Guide
8
Product Overview
Uplink Ports
